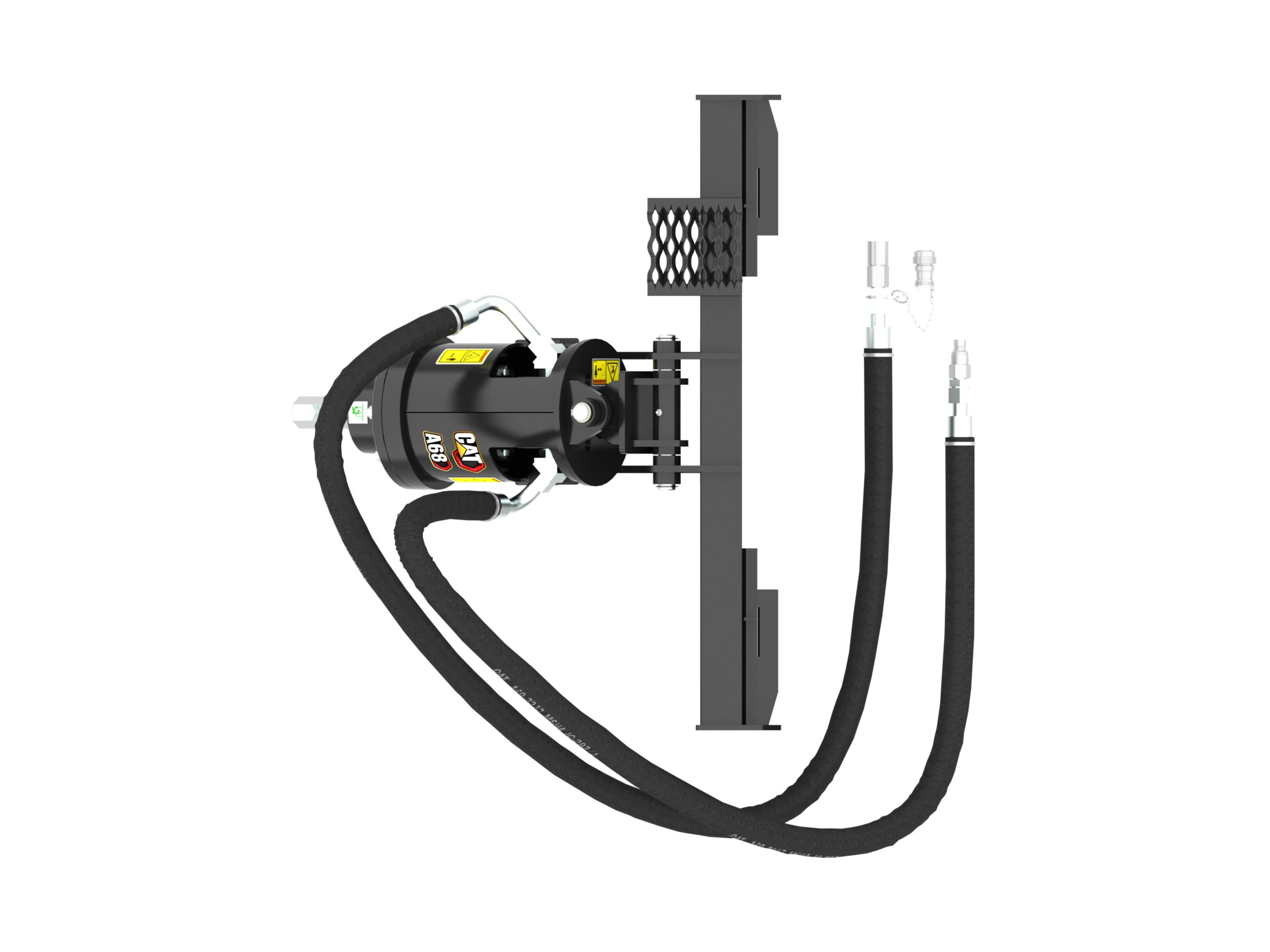

A68 Auger For Skid Steer Couplers
Specifications
| Bit Speed at Maximum Flow | 81 rpm |
| Drive Method | Gerotor Motor - Double Planetary Drive |
| Drive Shaft Torque at Maximum Pressure | 5034.6 lb/ft |
| Hex Output Shaft Size | 2 in |
| Housing Diameter | 9.9 in |
| Motor Displacement | 3 in³ |
| Mounting Bracket Design | Skid Steer Loader Coupler |
| Optimal Hydraulic Flow | 95-130 L/min (25-34 gpm) |
| Optimal Hydraulic Pressure | 207-290 bar (3002-4206 psi) |
| Overall Height | 38.5 in |
| Overall Length - With Bracket | 23.5 in |
| Overall Width - With Bracket | 45.4 in |
| Required Hydraulics | High Flow XPS |
| Swing Range | 102 degrees |
| Swing Range (L/R) | 102 degrees |
| Swing Range (fore/aft) | 120 degrees |
| Weight | 401.2 lb |
