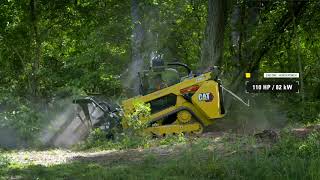

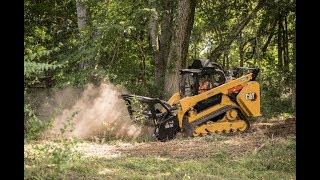

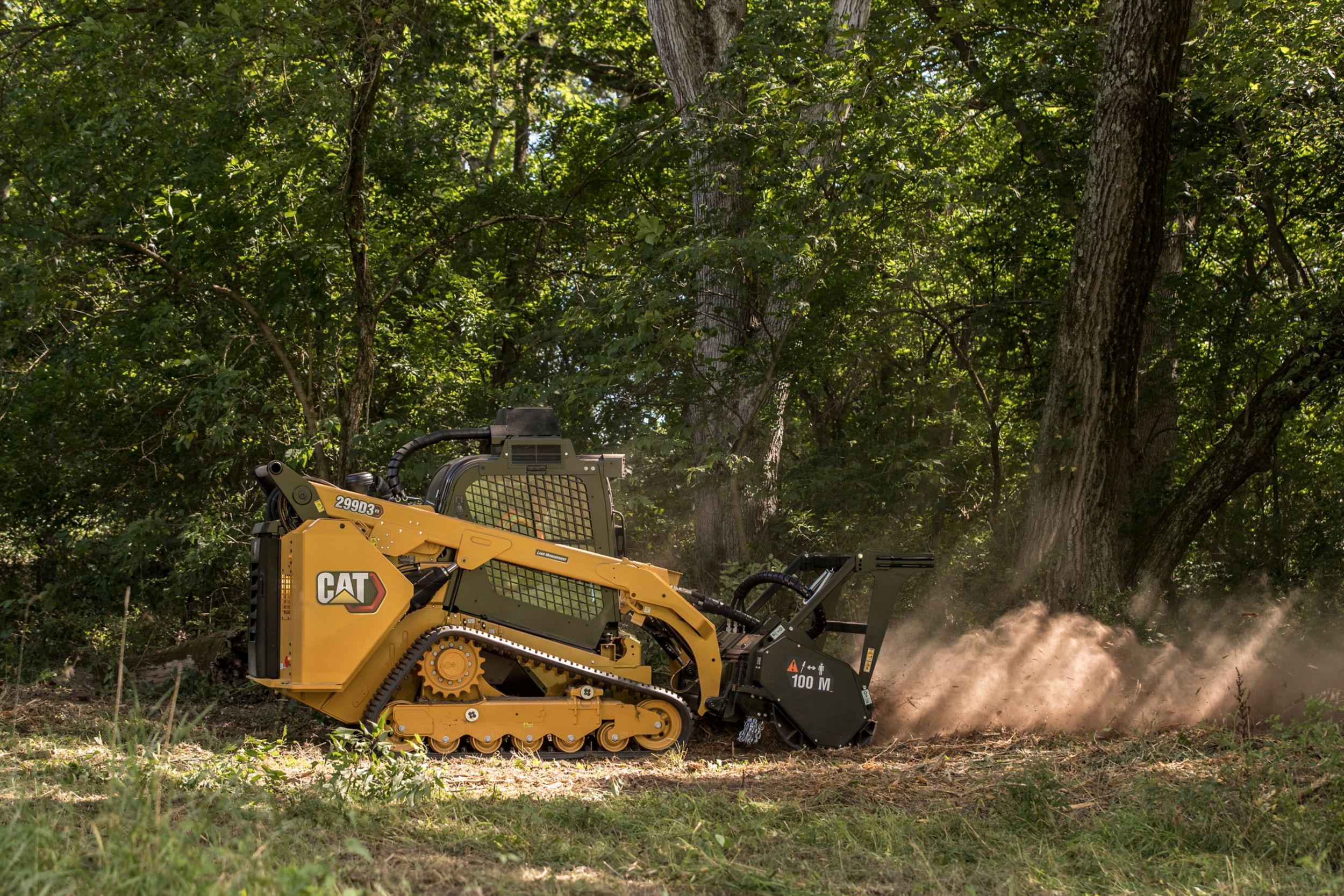

299D3 XE Land Management Compact Track Loader

299D3 XE Land Management Compact Track Loader

Purpose-Built, High Production Segment Solution

More Comfort – More Performance – More Versatility

  • 80% Additional Fuel Capacity

    •External fuel tanks deliver 12 hour run time

  • PROTECTION

    •Customer Driven Improvements in Machine Sealing and Guarding

  • 30% Additional Rated Operating Capacity

    •1000 lbs (454 kg) more Rated Operating Capacity

Engine

Bore 3.9 in
Displacement 232 inÂł
Engine Model Cat C3.8 DIT (turbo)
Gross Power - SAE J1995 110 HP
Net Power 106 HP
Net Power - ISO 9249 107 HP
Net Power - SAE 1349 106 HP
Peak Torque - 1,500 rpm - SAE J1995 276 ft·lbf
Stroke 4.7 in

Operating Specifications

Breakout Force - Lift Cylinder 6162 lb
Breakout Force - Tilt Cylinder 7270 lb
Ground Contact Area - With 400 mm/15.7 in Track 2171 in²
Ground Contact Area - With 450 mm/17.7 in Track 2443 in²
Ground Pressure - With 400 mm/15.7 in Track 5.9 psi
Ground Pressure - With 450 mm/17.7 in Track 5.2 psi
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.
Rated Operating Capacities - 35% Tipping Load 4340 lb
Rated Operating Capacities - 50% Tipping Load 6200 lb
Tipping Load 12400 lb

Weights

Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.
Operating Weight 12764 lb

Dimensions

Bucket Pin Height - Carry Position 7.1 in
Bucket Pin Height - Maximum Lift 126.3 in
Bucket Pin Reach - Maximum Lift 19.4 in
Clearance at Maximum Lift and Dump 94.5 in
Departure Angle 33°
Ground Clearance 9.6 in
Height - Top of Cab 83.6 in
Length - Track on Ground 69.6 in
Length - With Bucket on Ground 154.7 in
Length - Without Bucket 125.5 in
Maximum Dump Angle 54°
Maximum Overall Height 158.7 in
Maximum Reach - With Arms Parallel to Ground 51.9 in
Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.
Overall Length - Track 89.4 in
Rack Back Angle - Maximum Height 81°
Reach - Maximum Lift/Dump 33.6 in
Roll Back Angle 25°
Turning Radius from Center - Bucket (racked) 91.1 in
Turning Radius from Center - Coupler 58.1 in
Turning Radius from Center - Machine Rear 74 in
Vehicle Width (400 mm/15.7 in tracks) 76 in
Vehicle Width (450 mm/17.7 in tracks) 78 in

Hydraulic System

Hydraulic Flow - XE - Hydraulic Power (calculated) 94 HP
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow* 40 gal/min
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure 4061 psi
Note *When equipped with Cat 400 Series work tools.
Standard Flow Mode - Hydraulic Power - Calculated 44 HP
Standard Flow Mode - Loader Hydraulic Flow 23 gal/min
Standard Flow Mode - Loader Hydraulic Pressure 3335 psi

Cab

FOPS ISO 3449:2005 Level I
ROPS ISO 3471:2008

Power Train

Travel Speed - Forward or Reverse - One Speed 5.5 mile/h
Travel Speed - Forward or Reverse - Two Speed 8.3 mile/h

Service Refill Capacities

Cooling System 4.1 gal (US)
Diesel Exhaust Fluid (DEF) Tank 5 gal (US)
Engine Crankcase 3.5 gal (US)
Fuel Tank 58 gal (US)
Hydraulic System 14.5 gal (US)
Hydraulic Tank 10.3 gal (US)

Noise Level

Inside Cab* 83 dB(A)
Note (1) Sealed and pressurized cab is standard in North America and Europe.
Note (2) *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3) **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab** 104 dB(A)

Air Conditioning System (if equipped)

Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
