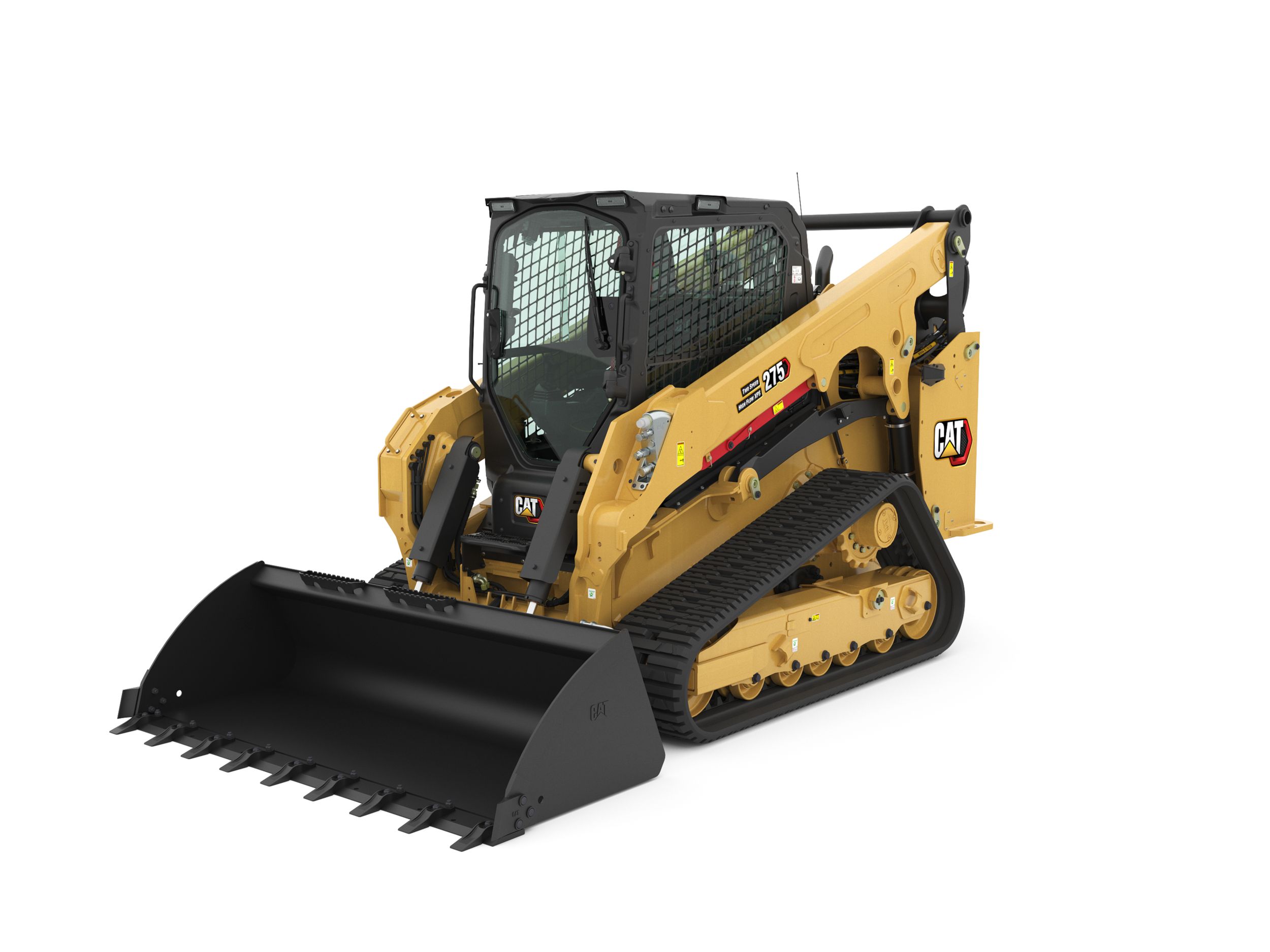

Get a quote275 Compact Track Loader
More Power. More Performance. More Comfort.
More Comfort – More Performance – More Versatility
-
+50% More Torque
than the 299D3
-
More Lift Height
and greater lift and tilt breakout forces
-
Larger Cab
featuring redesigned layout with more cab space and easier entry and exit
Engine
| Bore | 4.7 in |
| Displacement | 221 in² |
| Engine Model | Cat​​​​​​​® C3.6 TA (turbocharged after-cooled) |
| Gross Power - SAE J1995 | 111 hp |
| Net Power - ISO 9249 | 109 hp |
| Net Power - SAE 1349 | 82 hp |
| Peak Torque at 1,360 rpm SAE J1995 | 370 lb/ft |
| Stroke | 3.9 in |
Hydraulic System
| Hydraulic Flow - High Flow - Loader Hydraulic Flow | 34 gal/min |
| Hydraulic Flow - High Flow - Loader Hydraulic Pressure | 3500 psi |
| Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) | 80.7 hp |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow | 34 gal/min |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure | 4061 psi |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 46.4 hp |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 23 gal/min |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 3500 psi |
Weights*
| Counterweight Adds to Operating Weight | 428 lb |
| Counterweight Adds to Operating Weight - ROC (35%) | 105 lb |
| Counterweight Adds to Operating Weight - Tip Load | 796 lb |
| Enclosed Cab Adds to Operating Weight | 218 lb |
| Enclosed Cab Adds to Operating Weight - ROC (35%) | 105 lb |
| Enclosed Cab Adds to Operating Weight - Tip Load | 214 lb |
| Note | *Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Operating Weight | 12401 lb |
| Operating Weight - ROC (35%) | 4156 lb |
| Operating Weight - ROC (50%) | 5937 lb |
| Operating Weight - Tip Load | 8066 lb |
Service Refill Capacities
| Cooling System | 4.6 gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 2.9 gal (US) |
| Engine Crankcase | 2.4 gal (US) |
| Fuel Tank | 36.9 gal (US) |
| Hydraulic System | 10.8 gal (US) |
| Hydraulic Tank | 6.9 gal (US) |
Operating Specifications
| Breakout Force - Lift Cylinder | 6422 lb |
| Breakout Force - Tilt Cylinder | 9963 lb |
| Ground Contact Area - With 450 mm/17.7 in Track | 2808 in² |
| Ground Pressure - With 450 mm/17.7 in Track | 4.5 psi |
| Rated Operating Capacities - 35% Tipping Load | 4156 lb |
| Rated Operating Capacities - 50% Tipping Load | 4033 lb |
| Rated Operating Capacity with Optional Counterweight | 2996 lb |
| Tipping Load | 11874 lb |
Dimensions
| Bucket Pin Height - Carry Position | 8.1 in |
| Bucket Pin Height - Maximum Lift | 134.4 in |
| Bucket Pin Reach - Maximum Lift | 16.3 in |
| Clearance at Maximum Lift and Dump | 106.1 in |
| Departure Angle | 29.5° |
| Ground Clearance | 11 in |
| Height - Top of Cab | 87.8 in |
| Length - Track on Ground | 72.3 in |
| Length - With Bucket on Ground | 152.8 in |
| Length - Without Bucket | 128 in |
| Maximum Dump Angle | 44.7° |
| Maximum Overall Height | 165.1 in |
| Maximum Reach - With Arms Parallel to Ground | 46.7 in |
| Overall Length - Track | 83.7 in |
| Rack Back Angle - Maximum Height | 86.7° |
| Reach at Maximum Lift/Dump | 32 in |
| Roll Back Angle | 27° |
| Turning Radius from Center - Bucket (racked) | 91.3 in |
| Turning Radius from Center - Coupler | 60.3 in |
| Turning Radius from Center - Machine Rear | 76 in |
| Vehicle Width (450 mm/17.7 in tracks) | 77.8 in |
Cab
| FOPS | ISO 3449:2005 Level I |
| FOPS Level II | ISO 3449:2005 Level II (Optional) |
| ROPS | ISO 3471:2008 |
Power Train
| Travel Speed - Forward or Reverse - One Speed | 5.2 mile/h |
| Travel Speed - Forward or Reverse - Two Speed | 7.8 mile/h |
