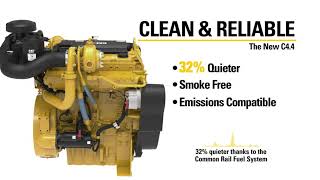

C4.4 (Electronic Control System)

C4.4 (Electronic Control System)

Power Rating

Power Range 65/75/99/118 ekW @ 1800 rpm (60 Hz), 65/80/99 ekW @ 1500 rpm (50 Hz)

Engine Specifications

Aspiration Turbocharged-aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW))
Bore 4.13 in
Configuration In-line 4, 4-stroke-cycle diesel
Cooling Heat exchanger, combined circuit keel cooling, or separate circuit keel cooling
Displacement 268 in³
Emissions U.S. EPA Tier 3 certified, EU Stage V certified
Flywheel Housing SAE No. 03 with SAE 11.5 flywheel (126 teeth)
Governor Electronic (A5 ECM)
Oil Change Interval 500 hrs
Rated Engine Speed 1500/1800 rpm
Refill Capacity Lube Oil System w/Oil filter change: 11 L 2.8 gal)
Stroke 5 in

Dimensions & Weights

Maximum Engine Dry Weight 3389 lb
Maximum Height 78.7 in
Maximum Length 80.2 in
Maximum Width 38.3 in

Download resources

C4.4 GenSet (Electronic Control System) - Spec Sheet
C4.4 GenSet (Electronic Control System) - Spec Sheet
C4.4 GenSet (Electronic Control System) - Spec Sheet
C4.4 GenSet (Electronic Control System) - Infographic
