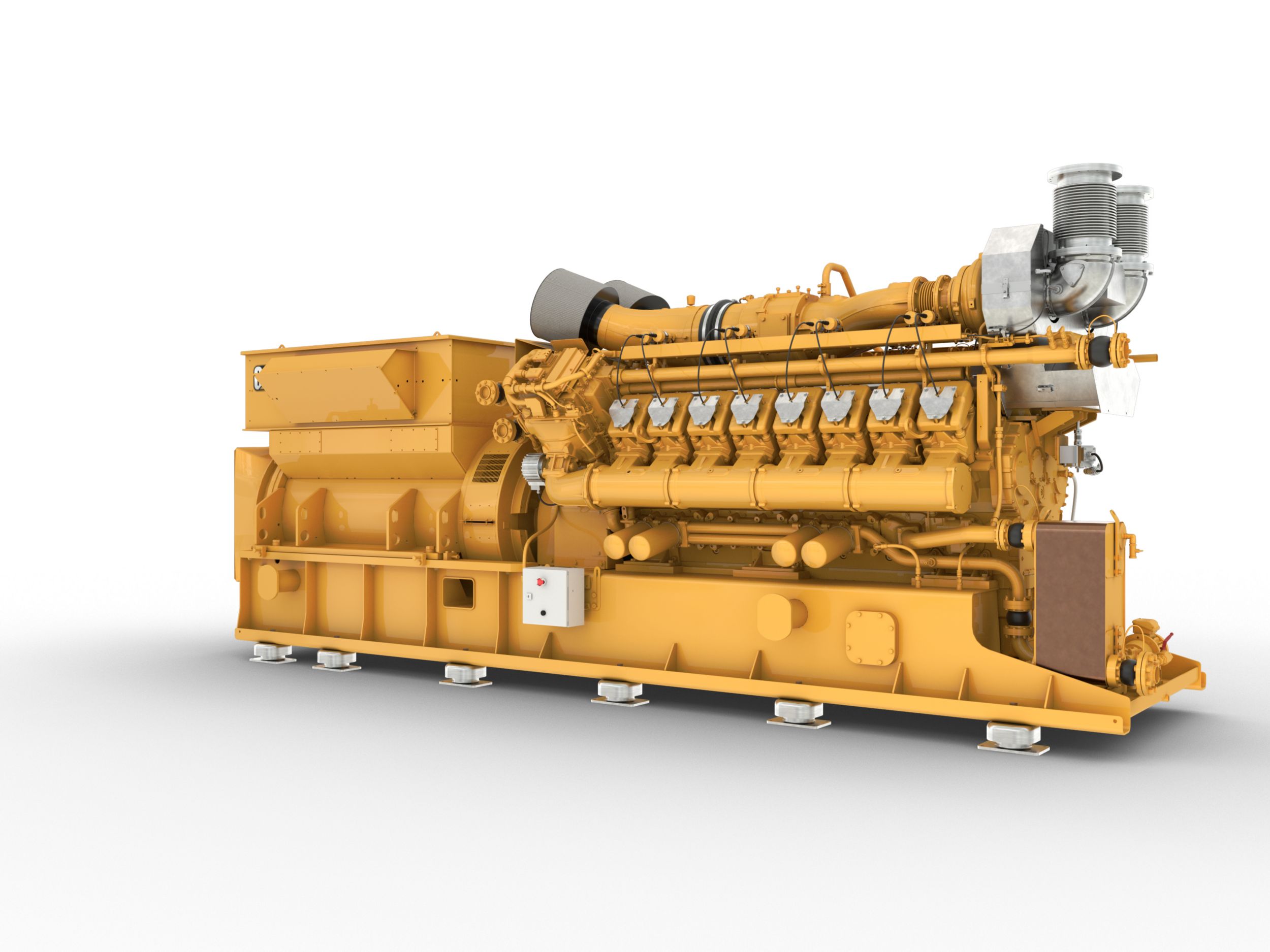

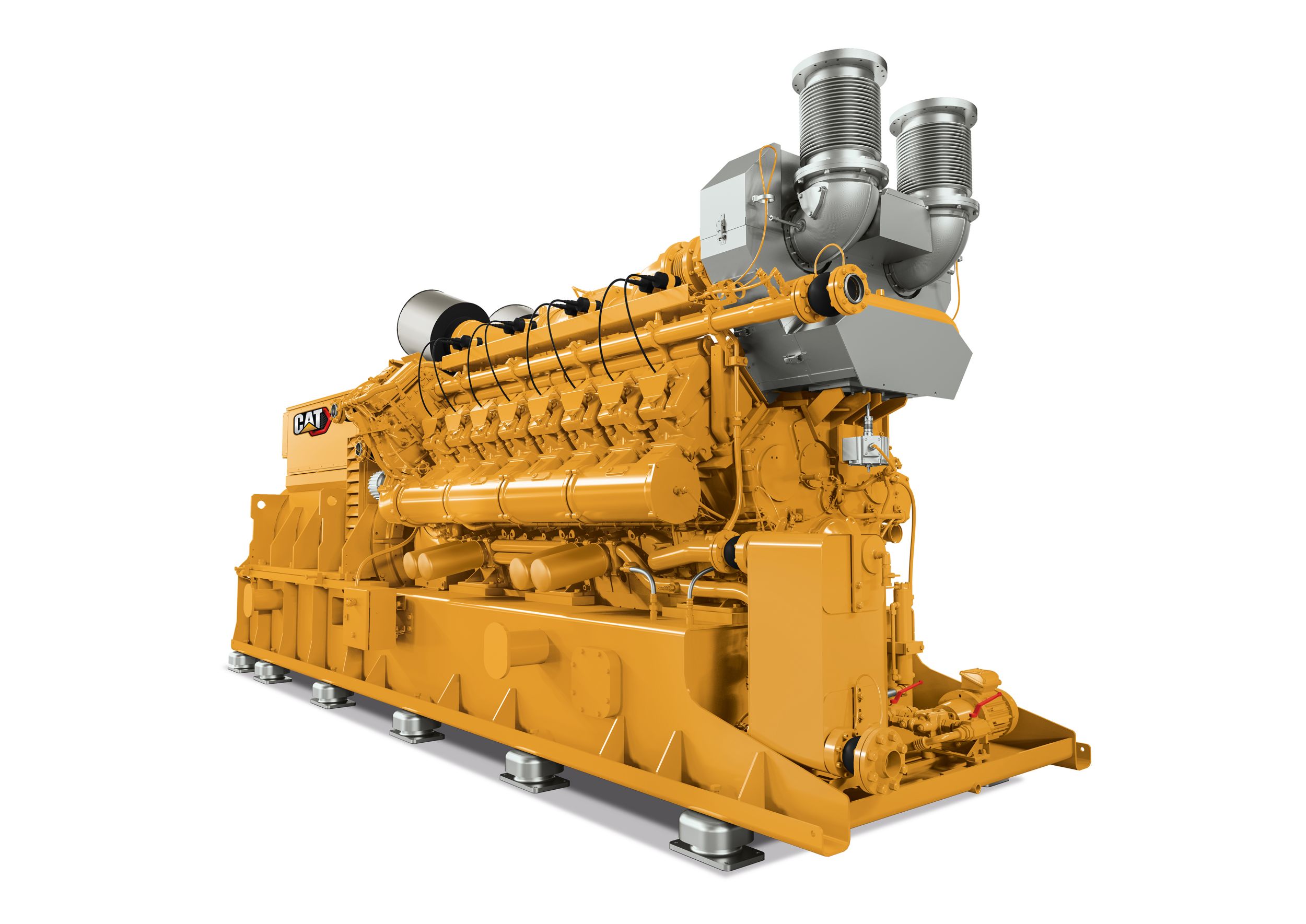

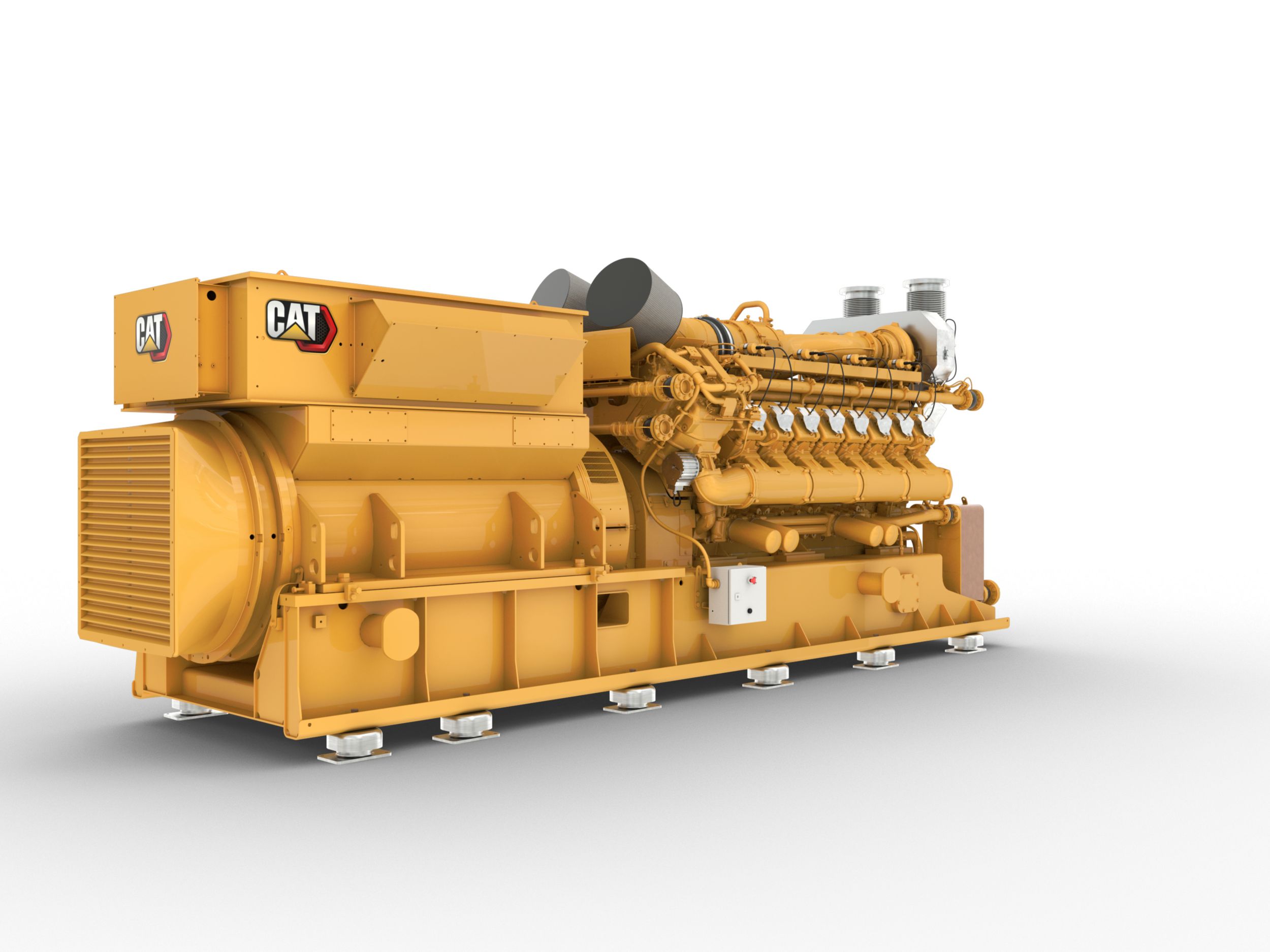

CG170B-16 Gas Generator Set
1840 kW Generator Set
More Comfort – More Performance – More Versatility
-
Cogeneration Up to 13% Savings
On owning and operating costs from improved efficiency
-
Digital Plant Control
Total Plant and Energy Management System (TPEM) gives you comprehensive and flexible digital control of your generator set's efficiency and performance helping to reduce planning and installation costs.
-
Up to 25% hydrogen blended fuel option
Enables operation of up to 25% hydrogen blend (by volume) with pipeline natural gas fuel.
Generator Set Specifications
| Continuous Rating | 1840 ekW @1.0pf |
| Frequency | 50 Hz |
| Fuel Type | Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%) |
| Maximum Electrical Efficiency | 44.70% |
| Maximum Standby Rating | 1840 |
| RPM | 1500 rpm |
Engine Specifications
| Aspiration | TA |
| Bore | 6.7 in |
| Engine Model | CG170B-16 |
| Stroke | 7.7 in |
Generator Set Dimensions
| Dry Weight - Genset | 38360 lb |
| Height | 86 in |
| Length | 240 in |
| Width | 67 in |
