DE500 GC (50 Hz) Generator Set

DE500 GC (50 Hz) Generator Set

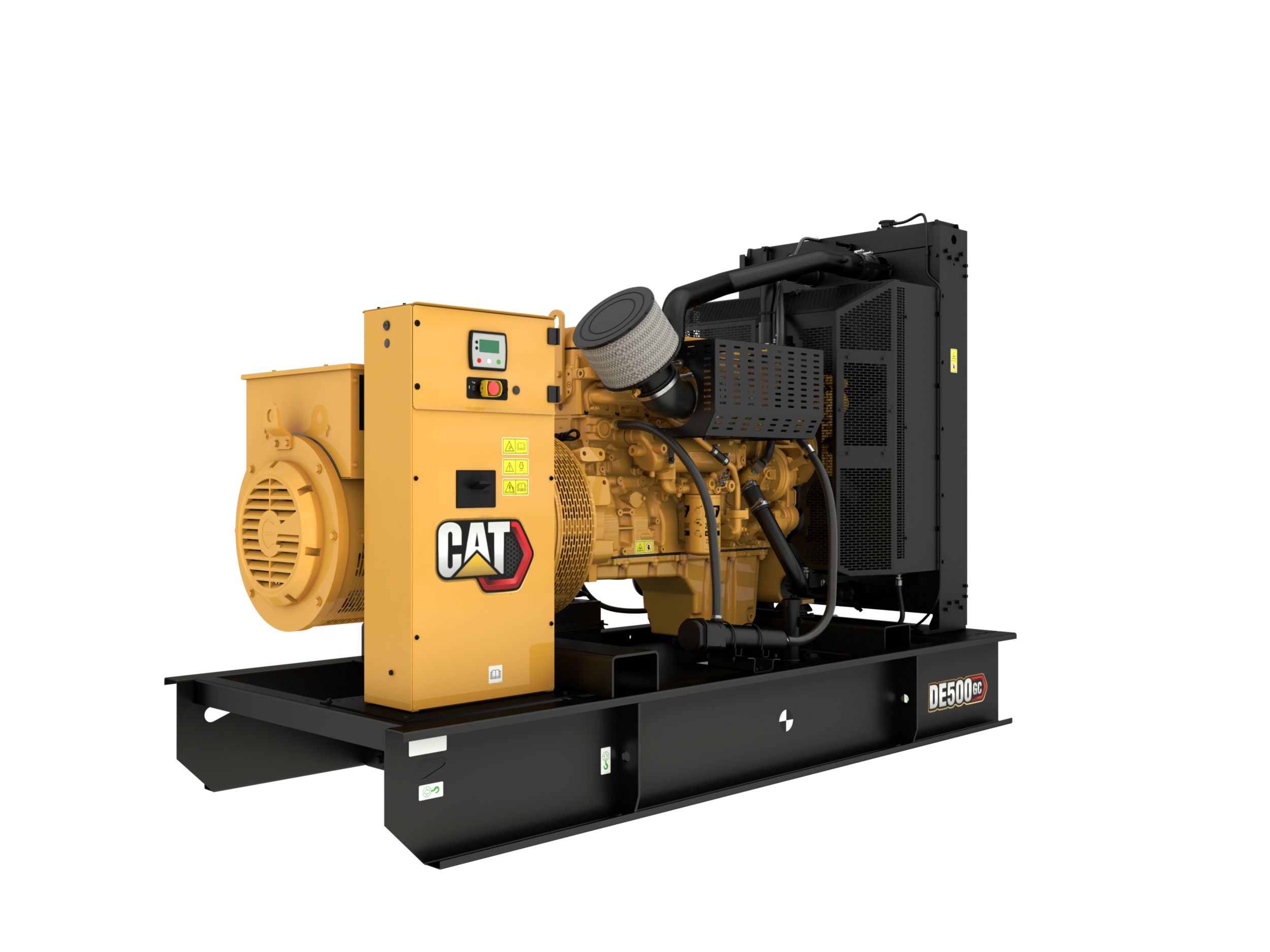

500 kVA Diesel Generator Set

More Comfort ā€“ More Performance ā€“ More Versatility

  • Integrated CatĀ® Product Linkā„¢ Control System

    • Track Genset Health and Operation Parameters
    • Genset Utilization and Performance Tracking

  • Remote Connectivity 24/7/365 Monitoring

    Cat Connect option ensures your generator set is always ready to start and perform as expected

  • Optimised for 5% Lower Fuel Consumption

    Longer run times between fuel fills; reduced operating costs

Generator Set Specifications

Duty Cycle Standby
Emissions/Fuel Strategy Non Regulated
Frequency 50 Hz
Maximum Rating 500 kVA
Minimum Rating 500 kVA
Speed 1500 rpm
Voltage 380 to 415 Volts

Engine Specifications

Aspiration Turbocharged Air-to-Air Aftercooled
Bore 5.1 in
Compression Ratio 15.8:1
Displacement 763 inĀ³
Engine Model C13 In-line 6, 4-cycle diesel
Fuel System EUI
Governor Type Ademā„¢A4
Stroke 6.2 in

Generator Set Dimensions

Dry Weight - Genset (maximum) 6446 lb
Height - Maximum 85.4 in
Length - Maximum 122 in
Width - Maximum 52.7 in

Download resources

DE500 GC, 50 Hz 500 kVA, Spec Sheet
Electric Power Ratings Guide
