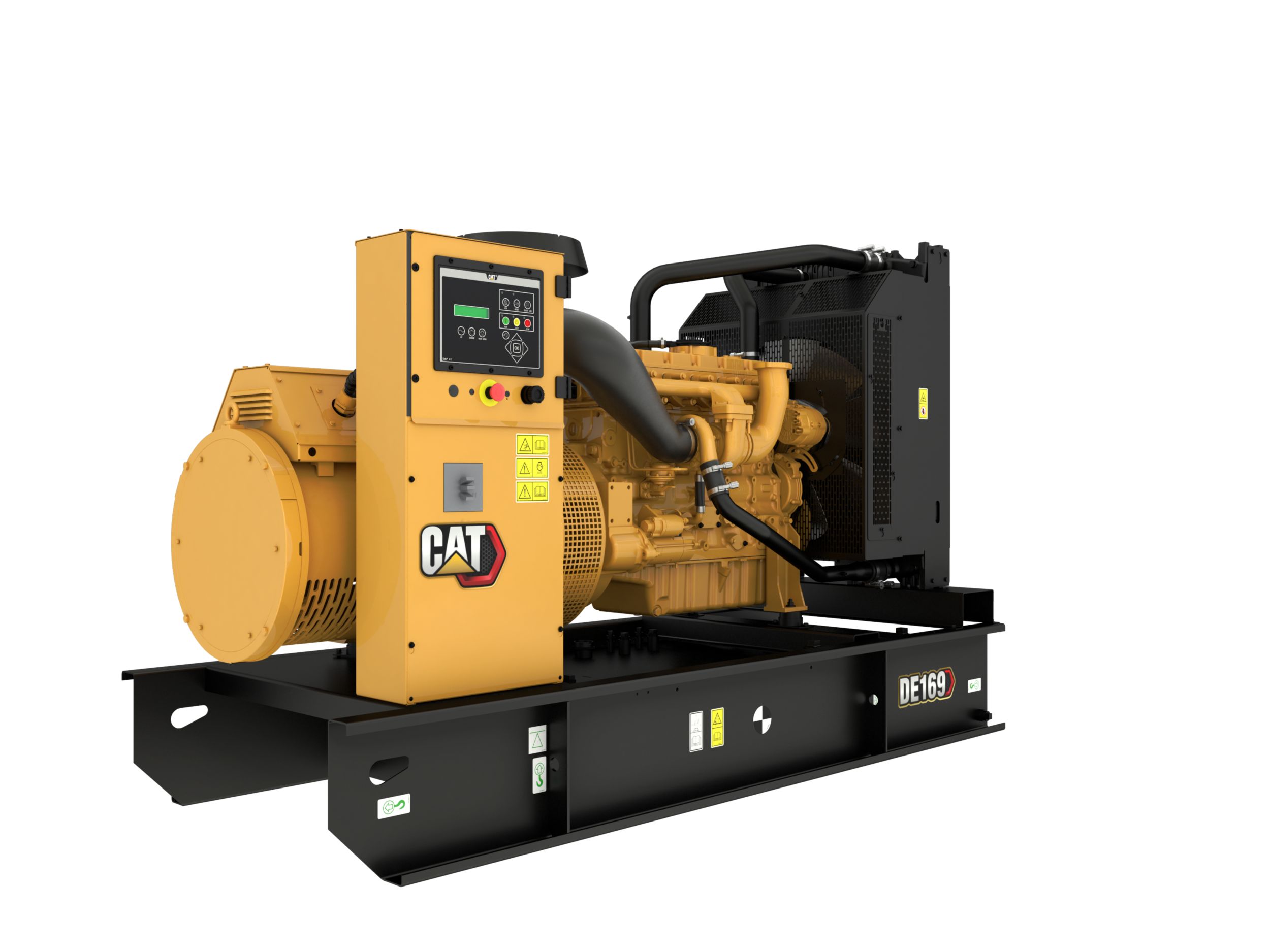

DE169AE0 (60 Hz) Generator Set
DE169AE0 | 120 ekW Diesel Generator Set
Generator Set Specifications
Duty Cycle | Standby, Prime |
Emissions/Fuel Strategy | Non-Certified Emissions |
Frequency | 60 Hz |
Maximum Rating | 120.0 ekW |
Minimum Rating | 120.0 ekW |
Speed | 1800 rpm |
Voltage | 220 to 380 Volts |
Engine Specifications
Aspiration | Turbocharged |
Bore | 4.1 in |
Compression Ratio | 18.2:1 |
Displacement | 427.8 inÂł |
Engine Model | Cat® C7.1 |
Fuel System | Direct Injection |
Governor Type | Mechanical |
Stroke | 5.3 in |
Generator Set Dimensions
Dry Weight - Genset (maximum) | 3135 lb |
Height - Maximum | 60.8 in |
Length - Maximum | 96.5 in |
Width - Maximum | 1010 mm |
