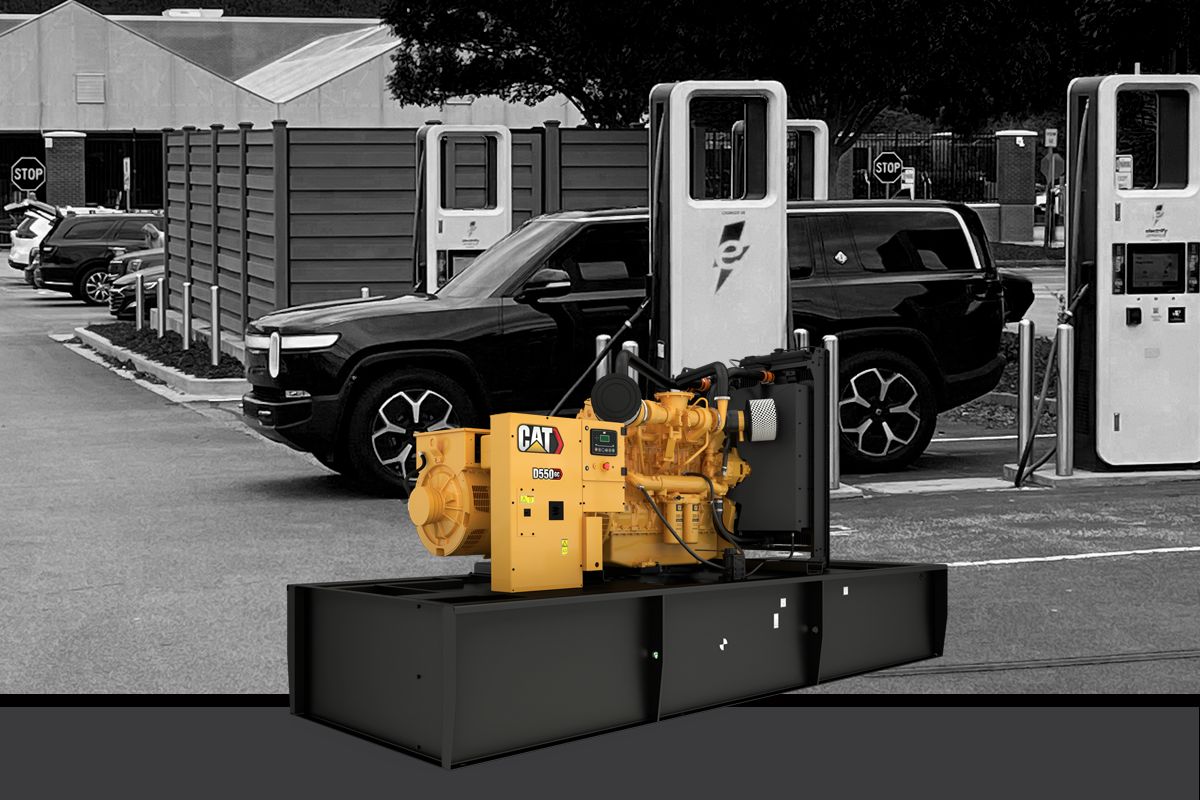

D550 GC (60 Hz) Generator Set

D550 GC (60 Hz) Generator Set

550 ekW Diesel Generator Set

More Comfort ‚Äď More Performance ‚Äď More Versatility

  • Saves up to 20% Installed Space

    Requires less space for installation; leaves more room for your on-going operations

  • Weighs up to 18% Less

    Easier handling; less structural reinforcement required to support genset weight

  • Standard 105 or 130¬įC Alternator Temperature Rise

    Meets most all specifications; ensures long alternator life

Generator Set Specifications

Duty Cycle Standby
Emissions/Fuel Strategy EPA Stationary Emergency
Frequency 60 Hz
Maximum Rating 550 ekW
Minimum Rating 550 ekW
Speed 1800 rpm
Voltage 480 to 600 Volts

Engine Specifications

Aspiration Turbocharged Air-to-Air Aftercooled
Bore 5.7 in
Compression Ratio 14.5:1
Displacement 1106 in³
Engine Model Cat¬ģ C18 In-line 6, 4-cycle diesel
Fuel System MEUI
Governor Type ADEM‚ĄĘA4
Stroke 7.2 in

Generator Set Dimensions

Dry Weight - Genset (maximum) 11464 lb
Dry Weight - Genset (minimum) 8776.6 lb
Height - Maximum 100.9 in
Height - Minimum 79.1 in
Length - Maximum 196.1 in
Width - Maximum 73.4 in

Download resources

Electric Power Ratings Guide
D550 GC, C18, 60 Hz 550 ekW Spec Sheet
D250 - D600 GC Enclosure Brochure
GCCP 1.2 Control Panel Data Sheet
GCCP 1.5 Control Panel Data Sheet
