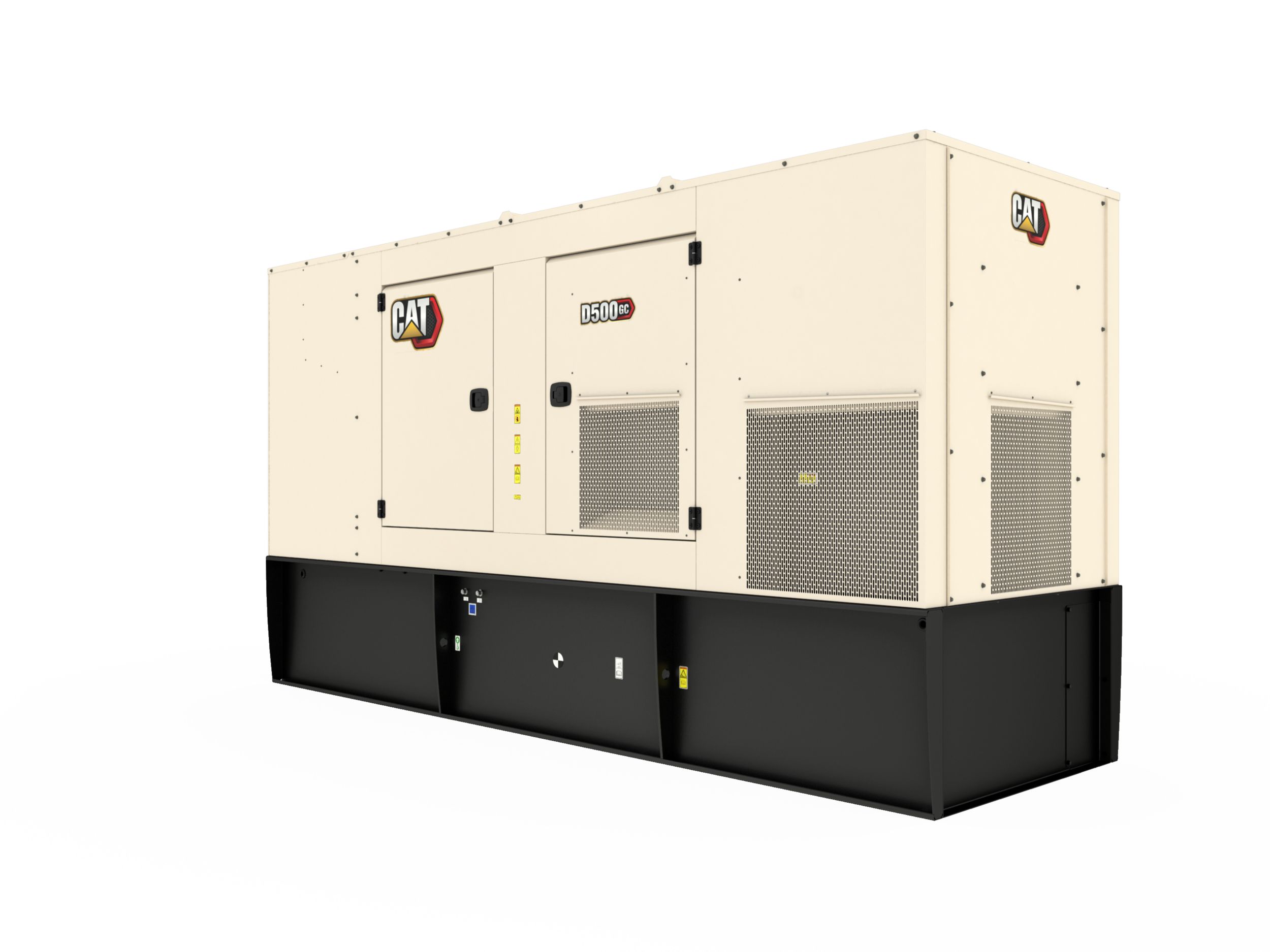

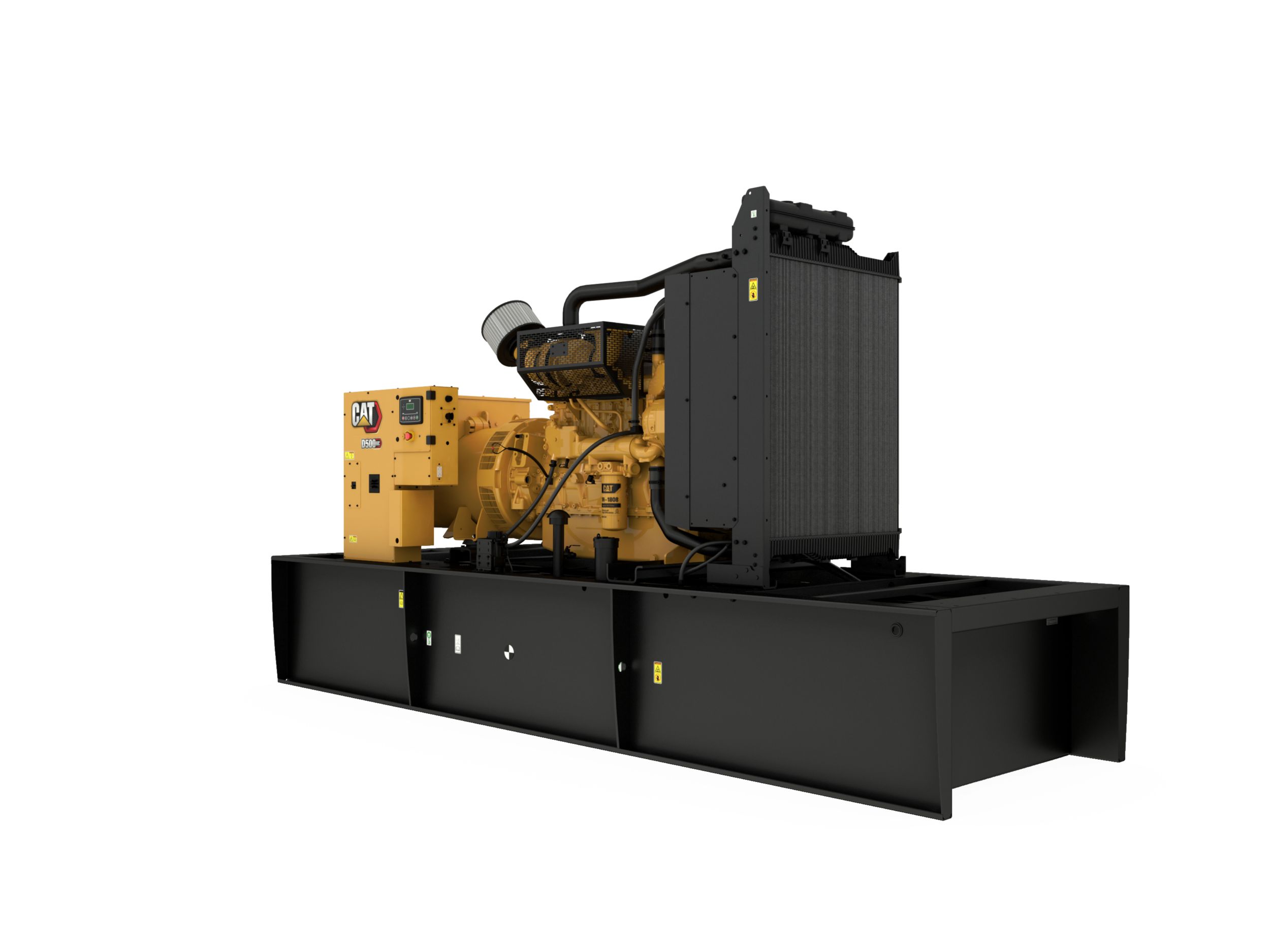

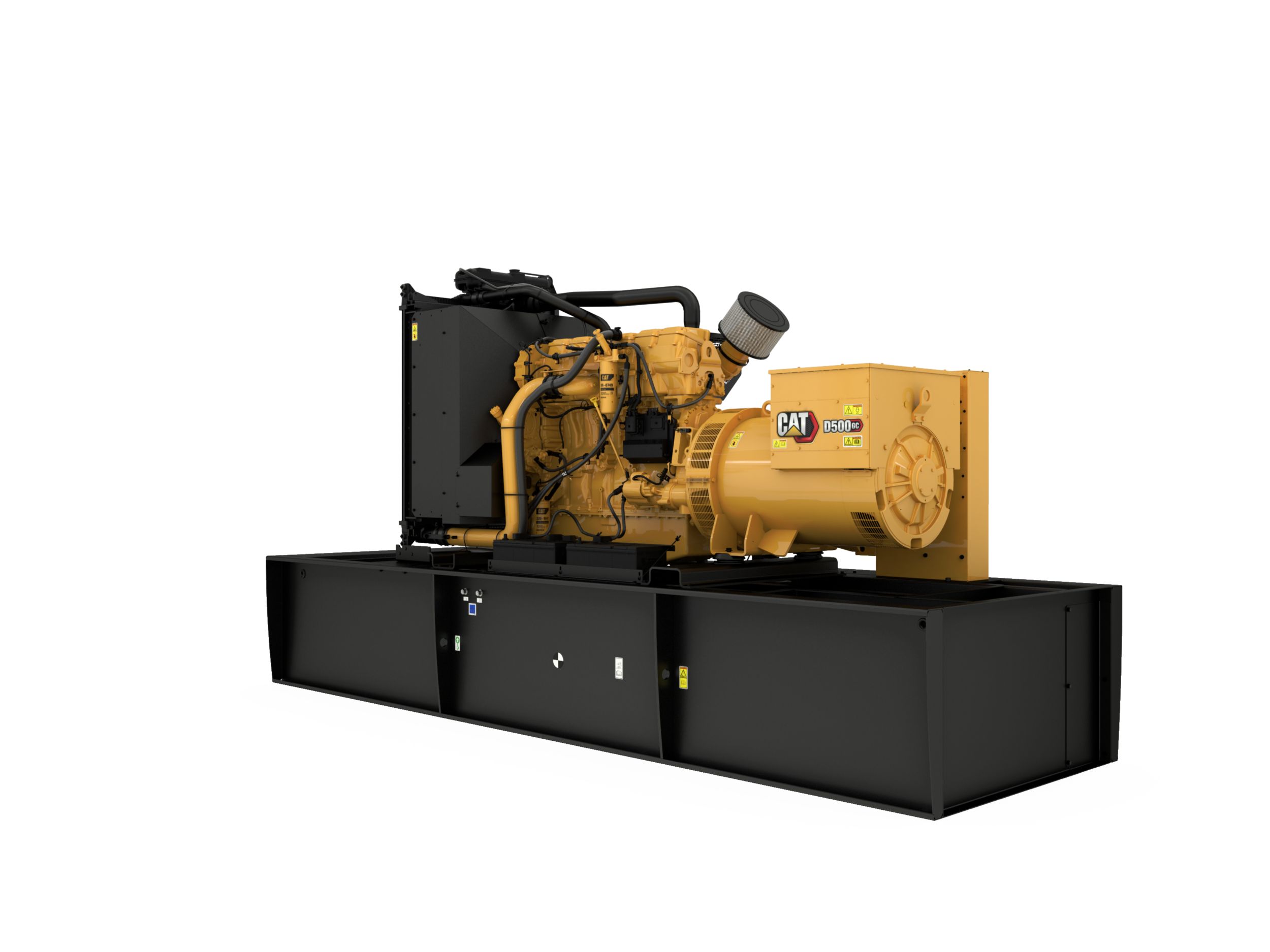

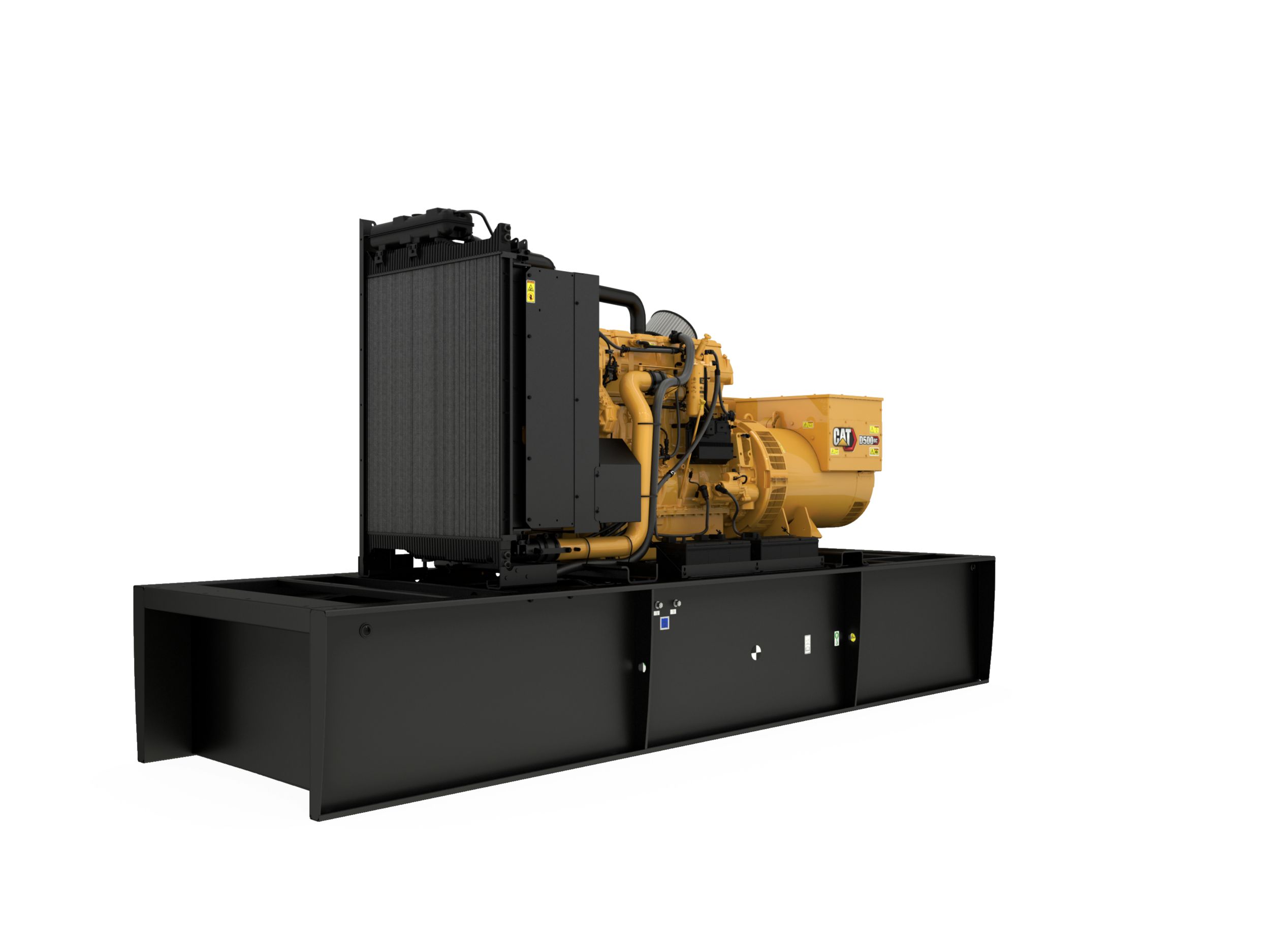

D500 GC (60 Hz) Generator Set

D500 GC (60 Hz) Generator Set

500 ekW Diesel Generator Set

More Comfort ‚Äď More Performance ‚Äď More Versatility

  • Saves up to 31% Installed Space

    Requires less space for installation; more space available for on-going operations

  • Weighs up to 26% Less

    Easier handling; less structural reinforcement required to support genset weight

  • Standard 105 or 130¬įC Alternator Temperature Rise

    Meets most all specifications; ensures long alternator life

Generator Set Specifications

Duty Cycle Standby
Emissions/Fuel Strategy EPA Stationary Emergency
Frequency 60 Hz
Maximum Rating 500 ekW
Minimum Rating 500 ekW
Speed 1800 RPM
Voltage 480 to 600 Volts

Engine Specifications

Aspiration Turbocharged Air-to-Air Aftercooled
Bore 5.4 in
Compression Ratio 16.1:1
Displacement 928 in³
Engine Model Cat¬ģ C15 In-line 6, 4-cycle diesel
Fuel System MEUI
Governor Type ADEM‚ĄĘA4
Stroke 6.8 in

Generator Set Dimensions

Dry Weight - Genset (maximum) 10346.3 lb
Dry Weight - Genset (minimum) 8280.6 lb
Height - Maximum 101.7 in
Height - Minimum 2034 in
Length - Maximum 189.6 in
Width - Maximum 64.2 in

Download resources

Electric Power Ratings Guide
D500 GC, C15, 60 Hz, 500 ekWSpec Sheet
D250 - D600 GC Enclosure Brochure
GCCP 1.2 Control Panel Data Sheet
GCCP 1.5 Control Panel Data Sheet
