C2.2 | D25 Generator Set

C2.2 | D25 Generator Set

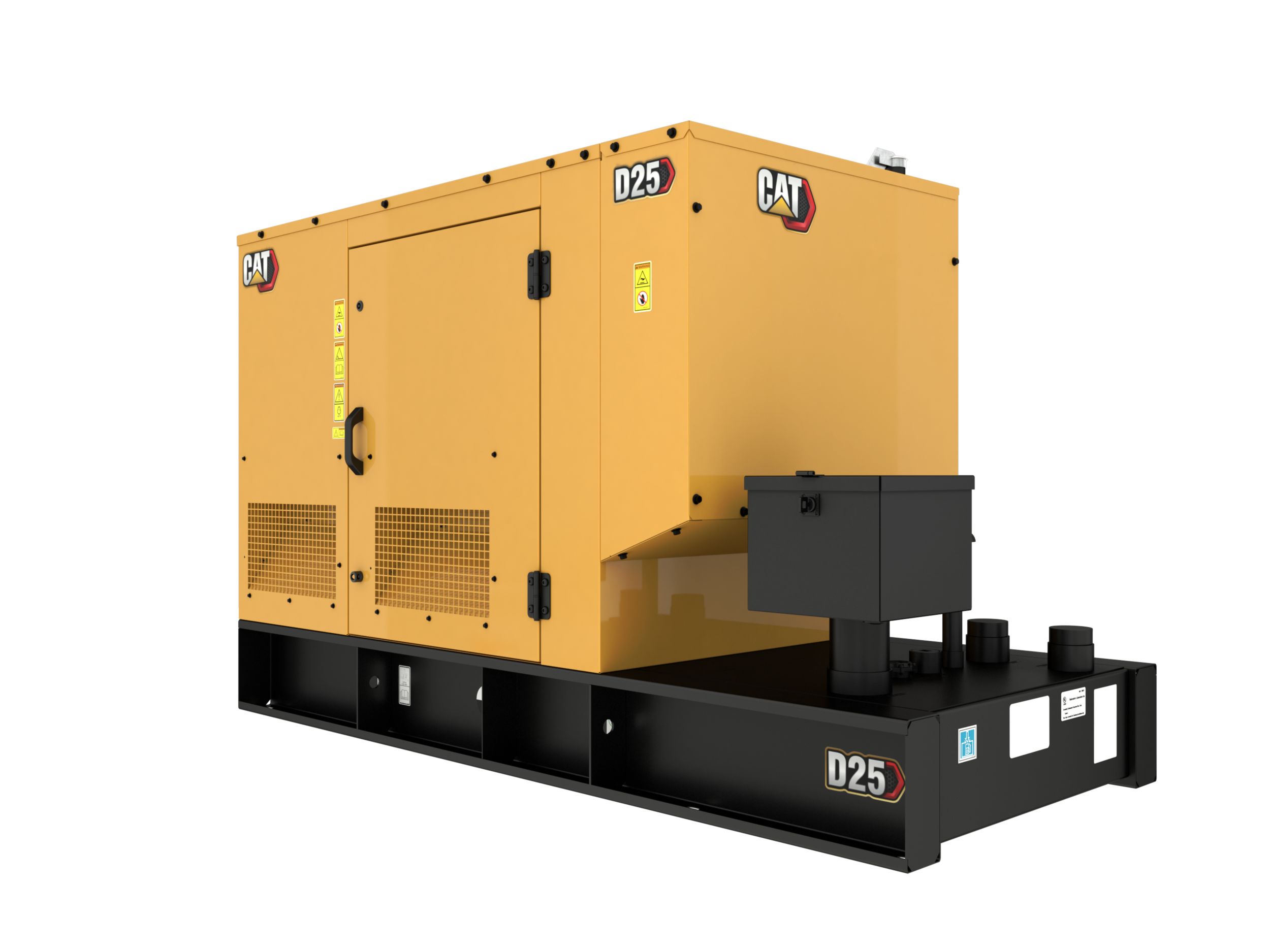

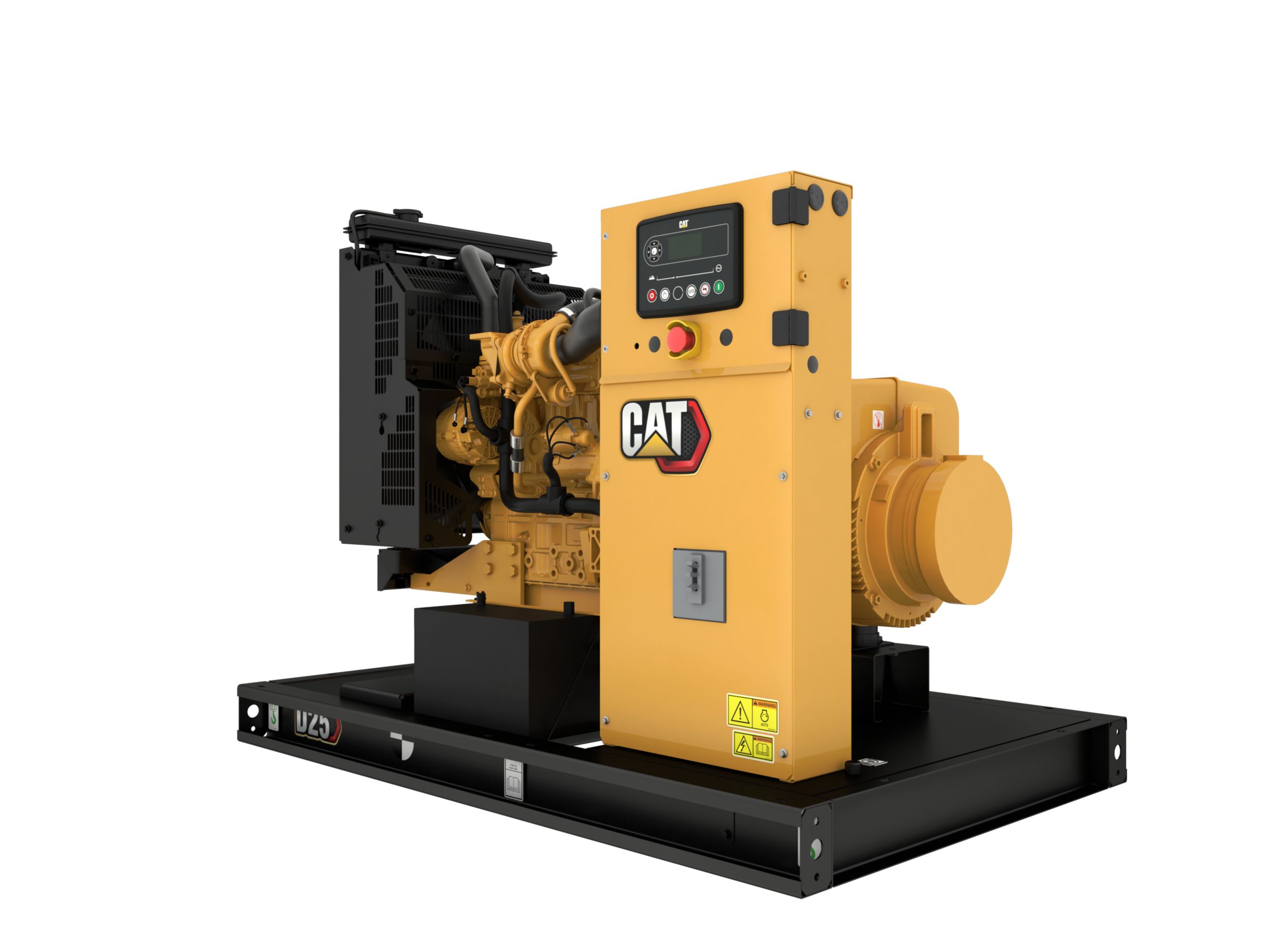

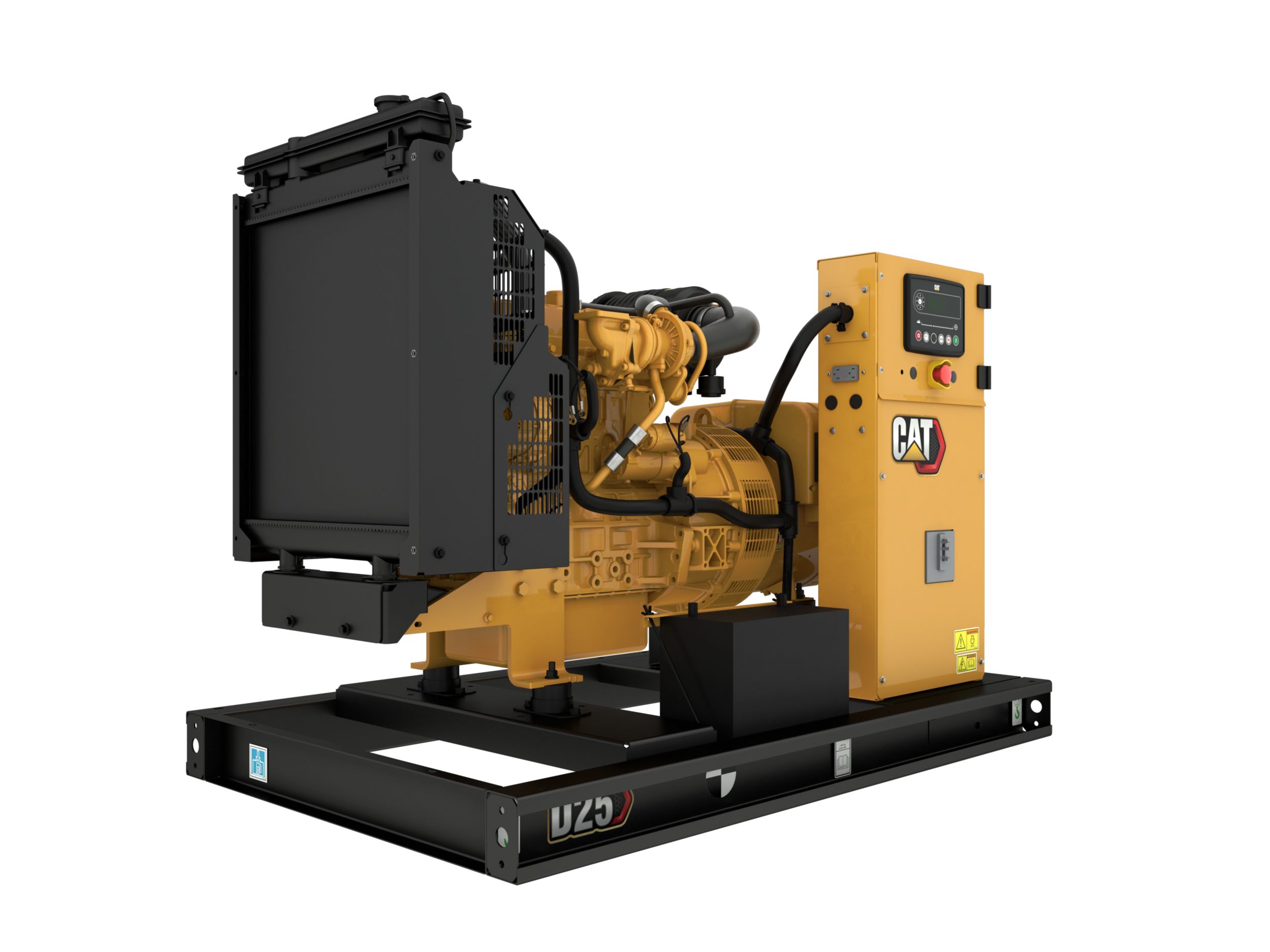

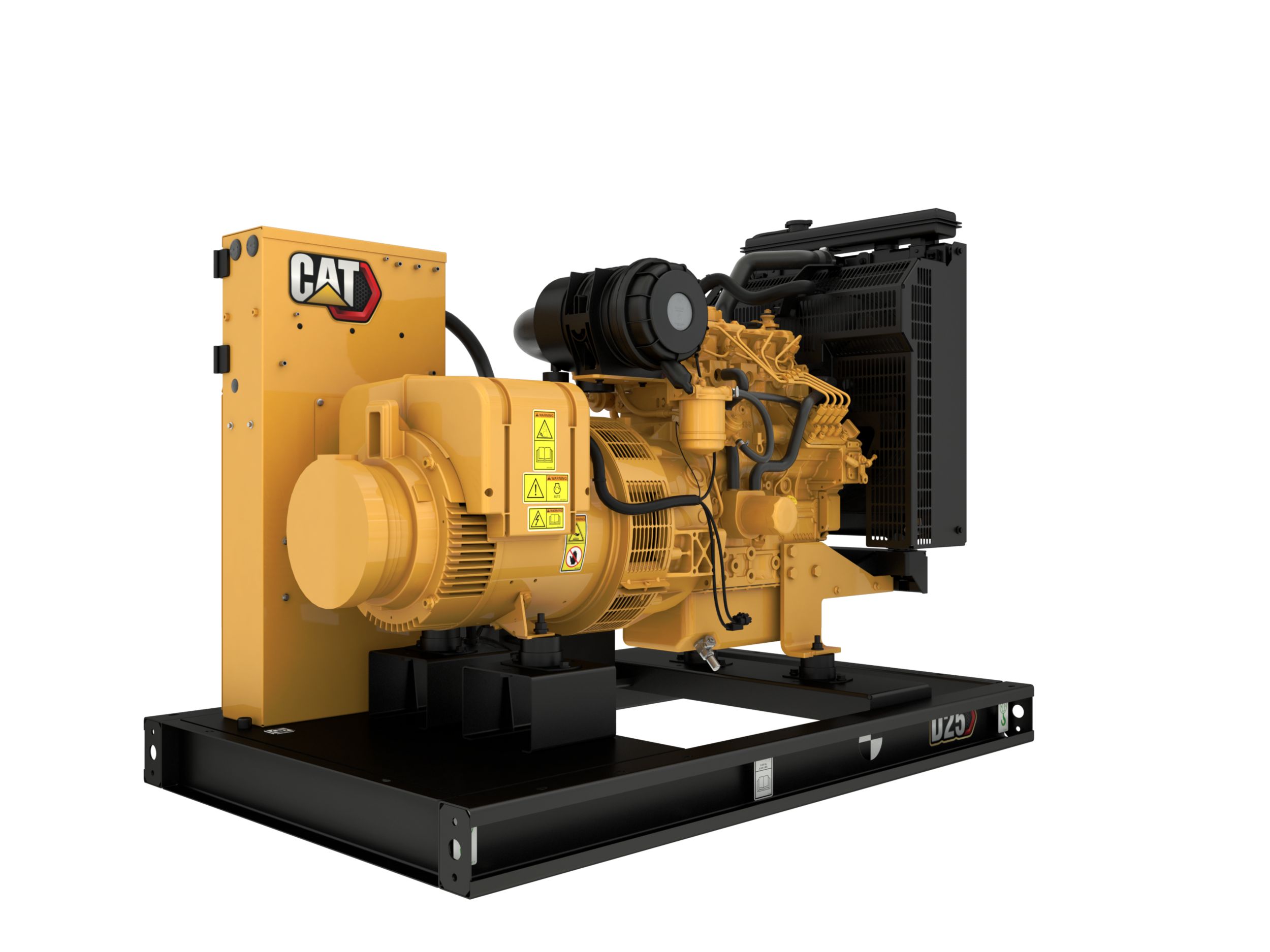

25 ekW Diesel Generator Set

More Comfort – More Performance – More Versatility

  • Over 1000 hour Continuous Run Time

  • Remote Connectivity 24/7/365 Monitoring

    Cat Connect option ensures your generator set is always ready to start and performing as expected

Generator Set Specifications

Duty Cycle Standby
Emissions/Fuel Strategy US EPA TIER 4I (EPA 40 CFR Part 1039 Interim Tier 4)
Frequency 60 Hz
Speed 1800 rpm
Standby Rating 25.0 ekW
Voltage 480/277, 240/120, 208/120, 600/346, 240/120 VAC

Engine Specifications

Aspiration Turbocharged
Bore 3.3 in
Compression Ratio 23.3:1
Displacement 134 in³
Engine Model Cat® C2.2, In-line 4, 4-cycle diesel
Fuel System Mechanical Cassette Type
Governor Type Mechanical
Stroke 3.9 in

Generator Set Dimensions

Dry Weight - Genset (maximum) 2052 lb
Height - Maximum 57.9 in
Length - Maximum 88.6 in
Width - Maximum 41.3 in

Download resources

Electric Power Ratings Guide
D25, 60 Hz, 25 ekW EPA TIER 4I (EPA 40 CFR Part 1039 Interim Tier 4) Spec Sheet
GCCP 1.2 Control Panel Data Sheet
GCCP 1.5 Control Panel Data Sheet
