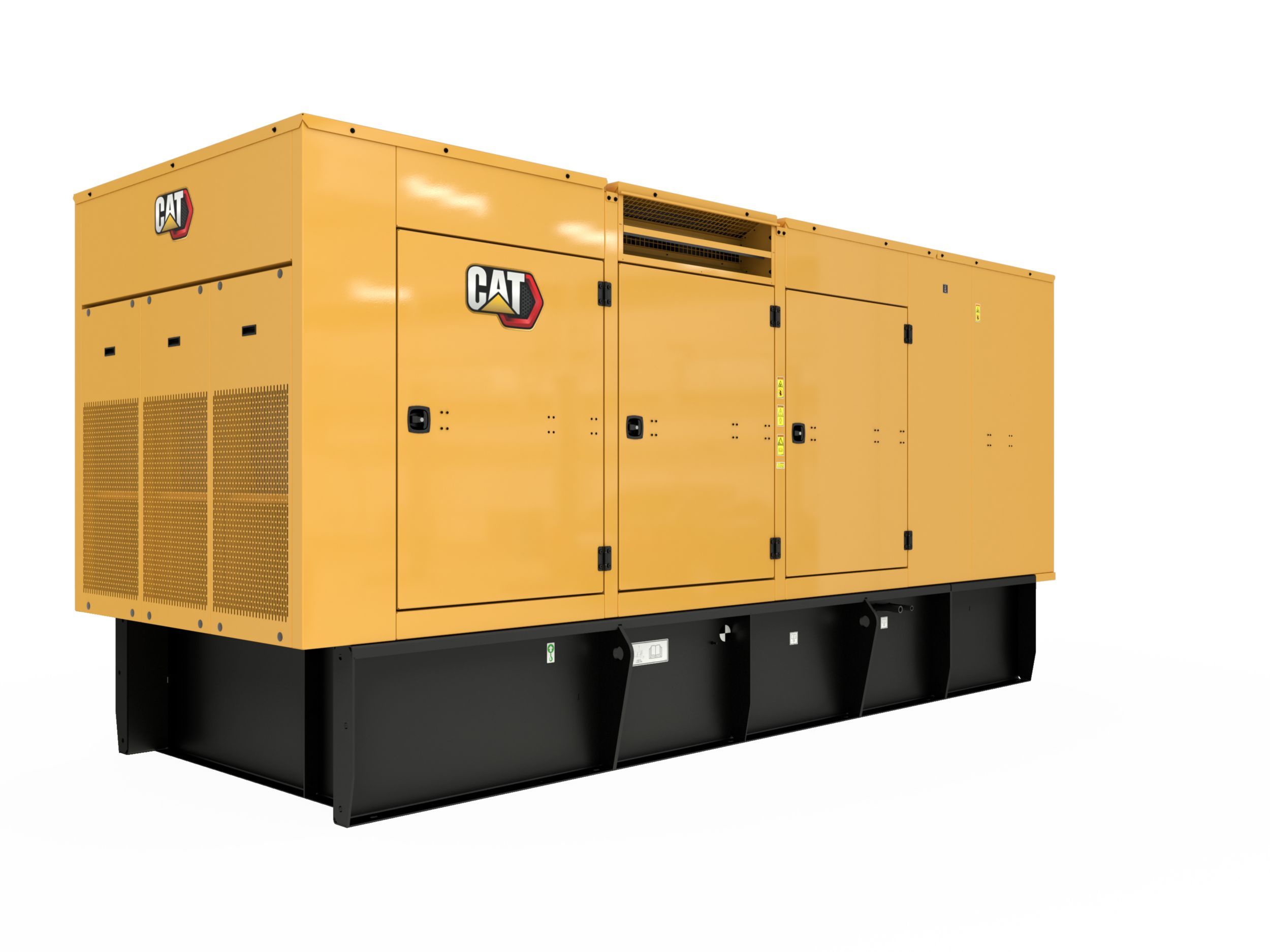

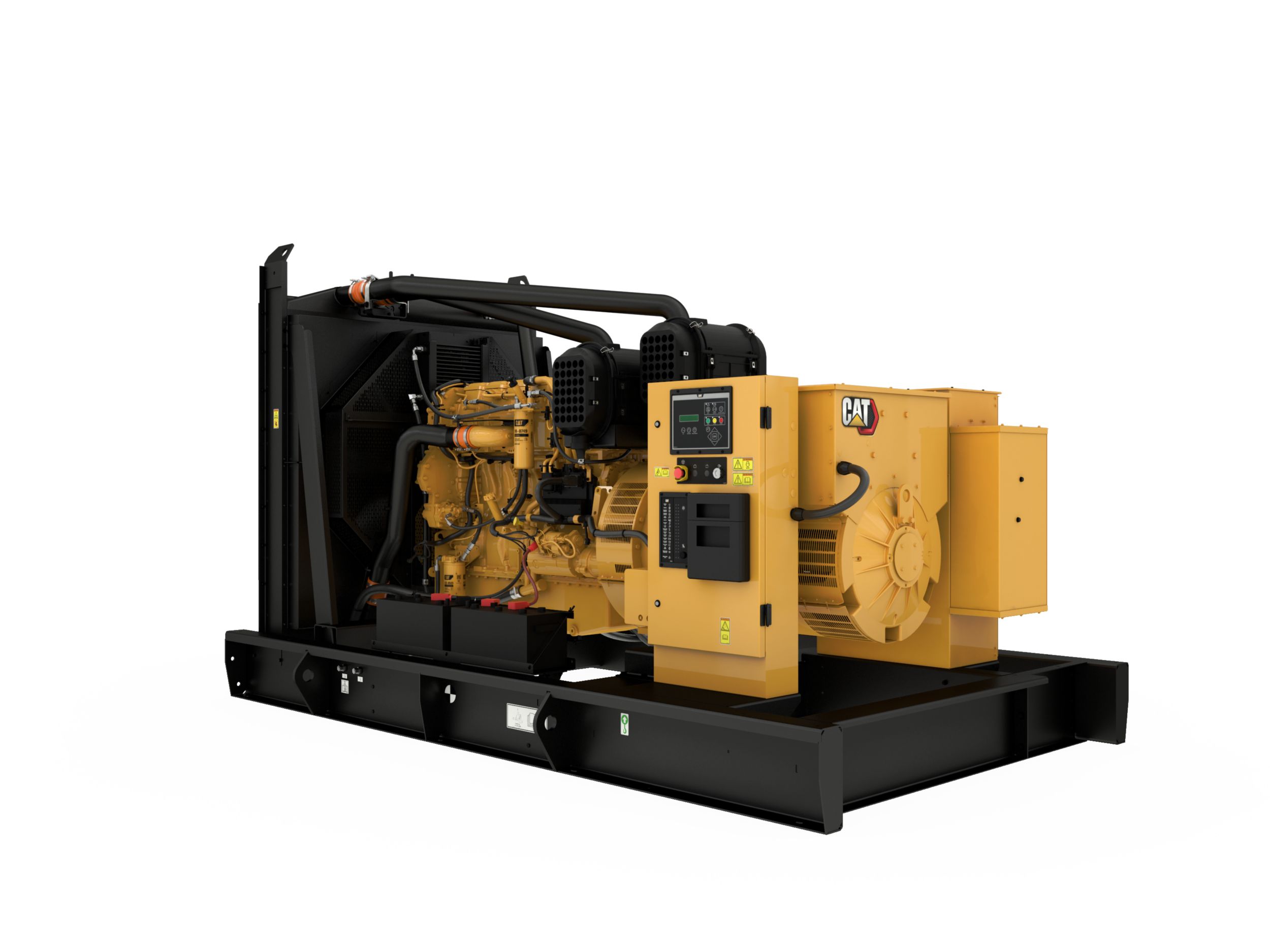

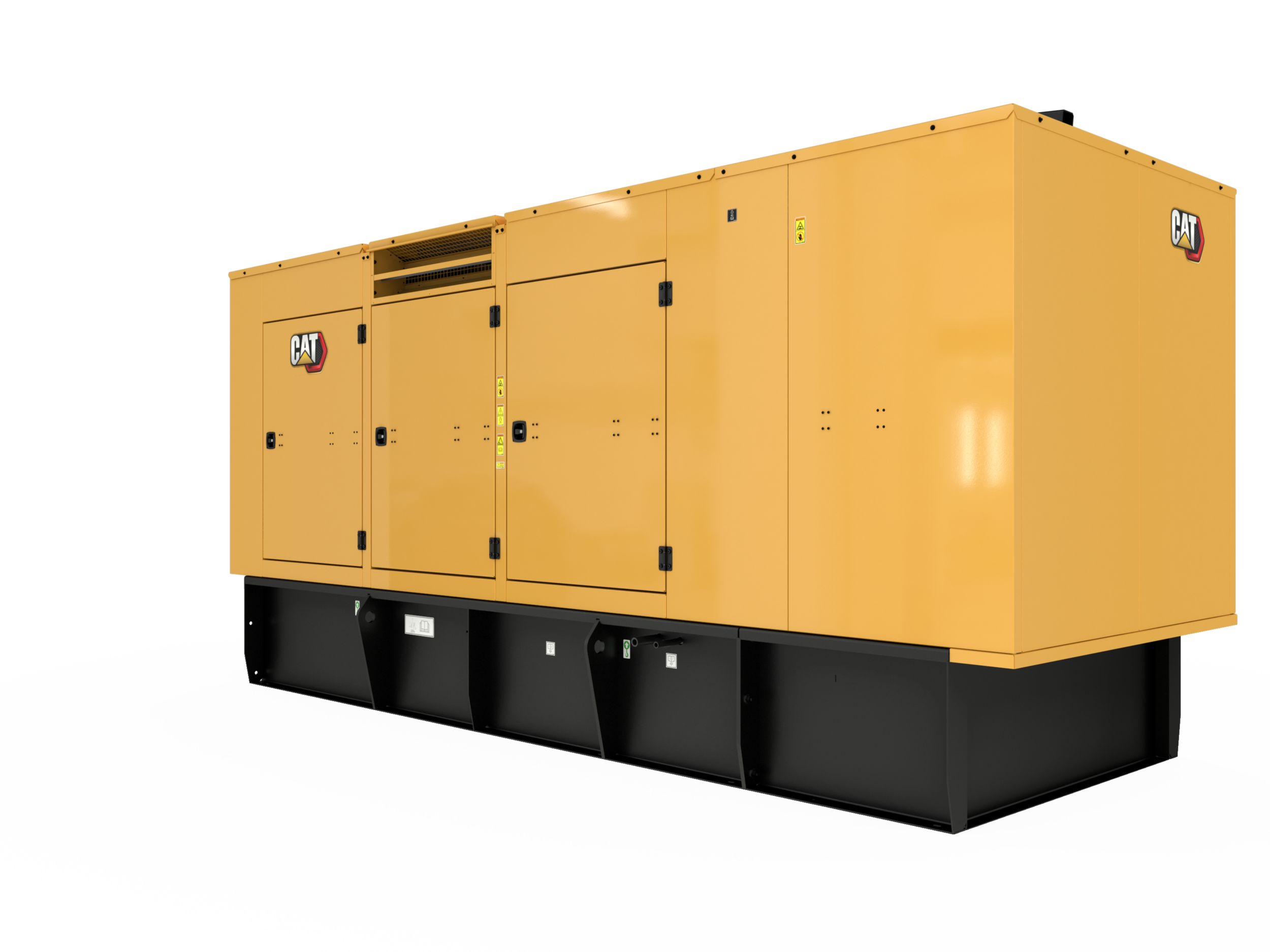

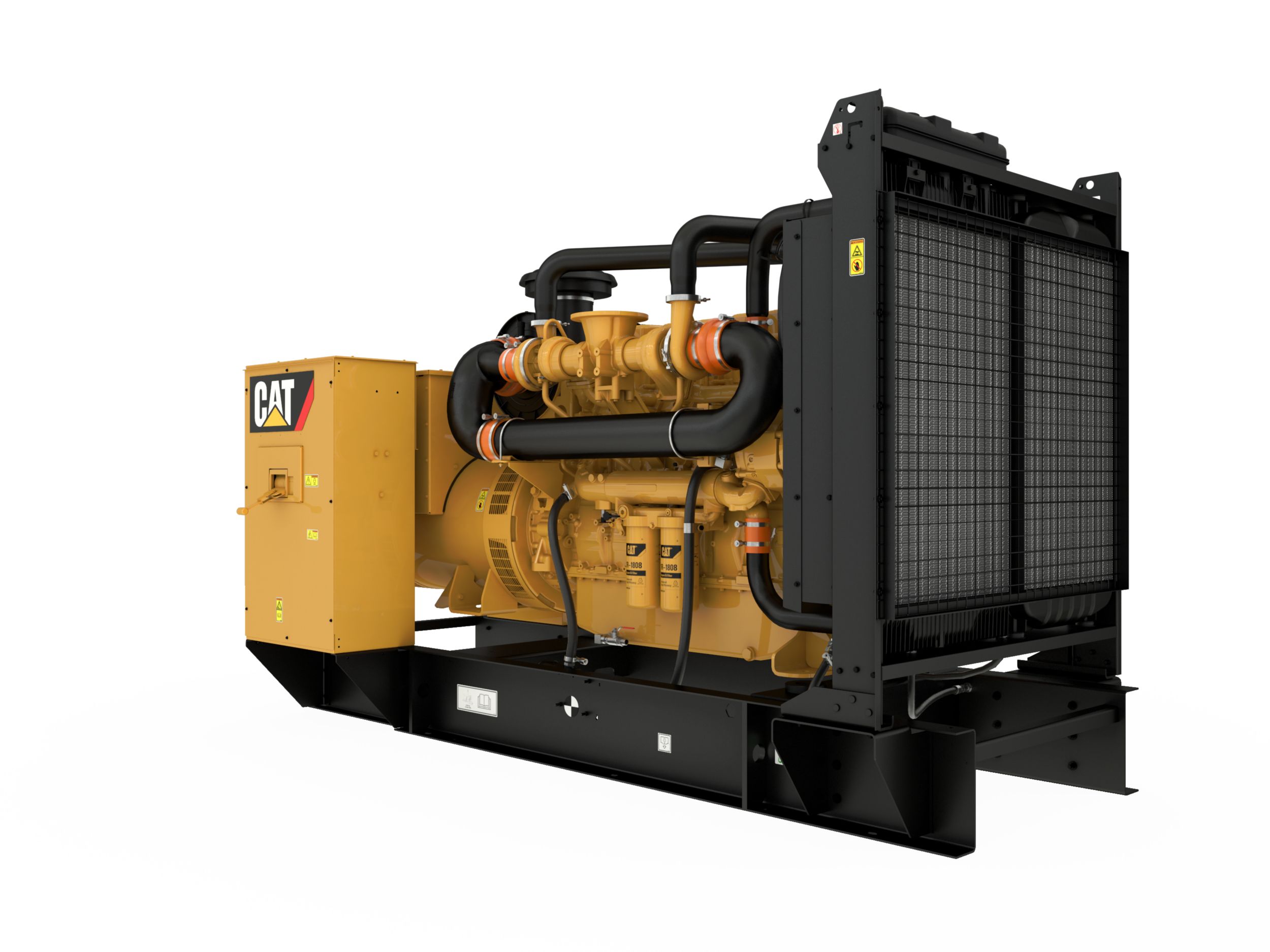

C18 Generator Set
500 - 750 ekW Diesel Generator Set
More Comfort – More Performance – More Versatility
-
Up to 55% Footprint Reduction
Requires less space for installation
-
Greater than 15% kW/m2
-
Integrated Cat® Product Link™ Control System
- Track Genset Health and Operation Parameters
- Genset Utilization and Performance Tracking
Generator Set Specifications
| Duty Cycle | Standby, Prime |
| Emissions/Fuel Strategy | U.S. EPA Certified |
| Frequency | 60 Hz |
| Maximum Rating | 750 ekW |
| Minimum Rating | 500 ekW |
| Speed | 1800 rpm |
| Voltage | 208 to 600 Volts |
Engine Specifications
| Aspiration | Turbocharged Air to Air Aftercooled |
| Bore | 5.71 in |
| Compression Ratio | 14:01 |
| Displacement | 1106.3 inÂł |
| Engine Model | Cat® C18 ATAACTM In-line 6, 4-cycle diesel |
| Fuel System | Electronic unit injection |
| Governor Type | Electronic ADEM™ A4 |
| Stroke | 7.2 in |
Generator Set Dimensions
| Height - Maximum | 88 in |
| Length - Maximum | 138 in |
| Width - Maximum | 67 in |
Download resources
Electric Power Ratings Guide
C18, 60 Hz, 550 ekW Standby, 500 ekW Prime, TIER II Non-Road Spec Sheet
C18, 60 Hz, 600 ekW Standby, 545 ekW Prime, TIER II Non-Road Spec Sheet
C18, 60 Hz, 650 ekW Standby, 600 ekW Prime, EPA TIER II Spec Sheet
C18, 60 Hz, 700 ekW Standby, 635 ekW Prime, EPA TIER II Spec Sheet
C18, 60 Hz, 750 ekW Standby, 680 ekW Prime, EPA TIER II Spec Sheet
C18, 60 Hz, 550-750 ekW Standby, 500-680 ekW Prime, EPA TIER III Spec Sheet
C18 High Ambient Acoustic Enclosures
C18 for Industrial Applications
GCCP 1.2 Control Panel Data Sheet
GCCP 1.5 Control Panel Data Sheet
