C175-16 Tier 4 Final

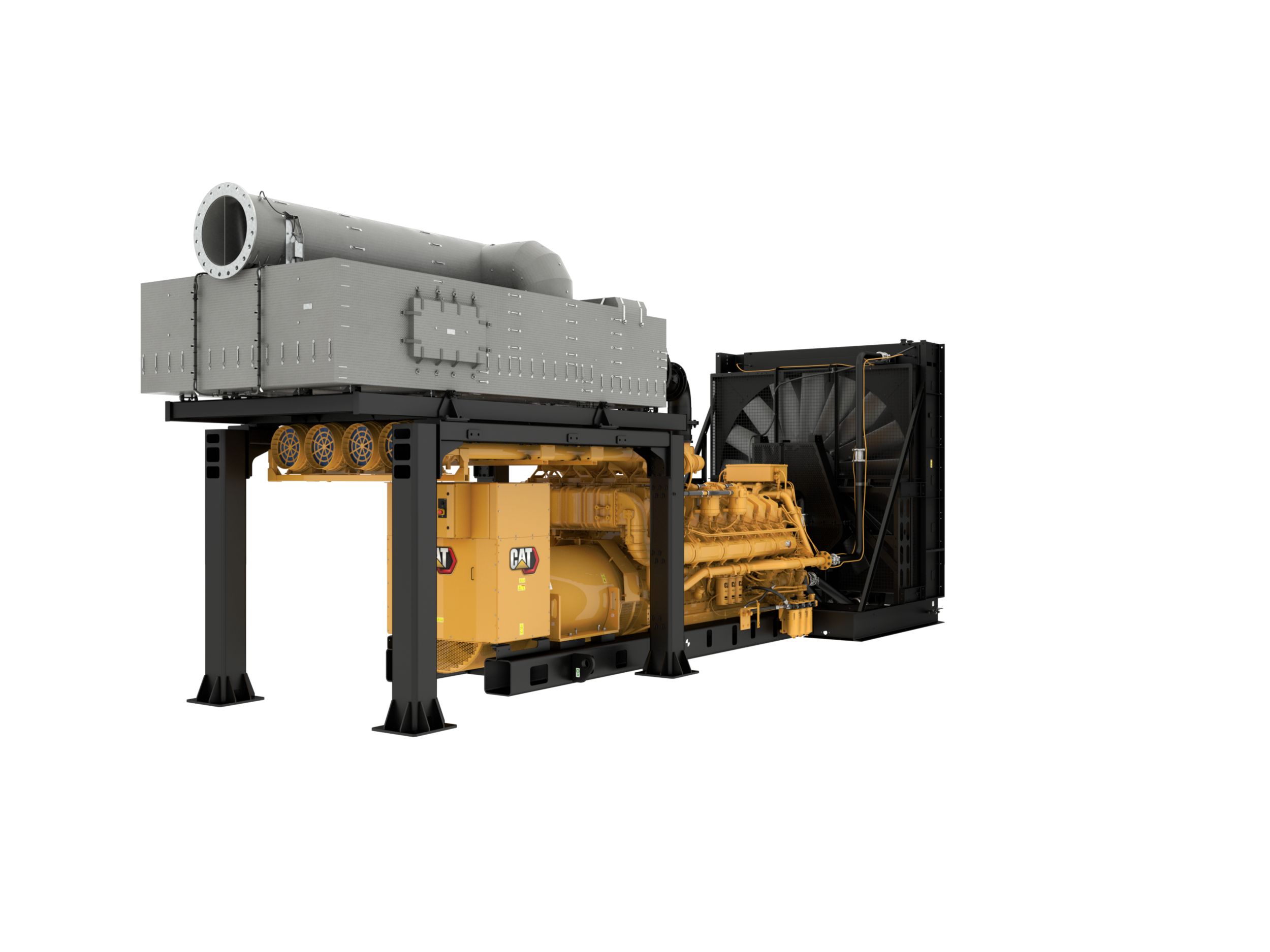

2500 - 3100 ekw C175-16 Tier 4 diesel generator set
More Comfort – More Performance – More Versatility
-
Over 20,000,000 Operating hours
at Global locations
-
Over 3000 Engines
In the field
-
Highest Rated Tier 4 Product
Available on the market
Generator Set Specifications
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Emissions/Fuel Strategy | U.S. EPA Certified Tier 4 |
| Frequency | 60 Hz |
| Maximum Rating | 3100 ekW |
| Minimum Rating | 2500 ekW |
| Prime Power Rating | 2825(no fan)/2725 ekW |
| Speed | 1800 rpm |
| Standby Rating | 3100(no fan)/3000 ekW |
| Voltage | 480 to 13800 Volts |
Engine Specifications
| Aspiration | Turbo Aftercooled |
| Bore | 6.89 in |
| Compression Ratio | 16.7:1 |
| Displacement | 5155.88 in³ |
| Engine Model | C175-16 SCAC, V-16, 4-Stroke Water-Cooled Diesel |
| Fuel System | EUI |
| Governor Type | ADEM� A4 |
| Stroke | 8.66 in |
Generator Set Dimensions
| Dry Weight - Genset (maximum) | 45114 lb |
| Dry Weight - Genset (minimum) | 42750 lb |
| Height - Maximum | 142.3 in |
| Height - Minimum | 127.2 in |
| Length - Maximum | 320 in |
| Length - Minimum | 242.77 in |
| Width - Maximum | 122.8 in |
| Width - Minimum | 82.7 in |
