C15 (50 Hz) China Non Road

C15 (50 Hz) China Non Road

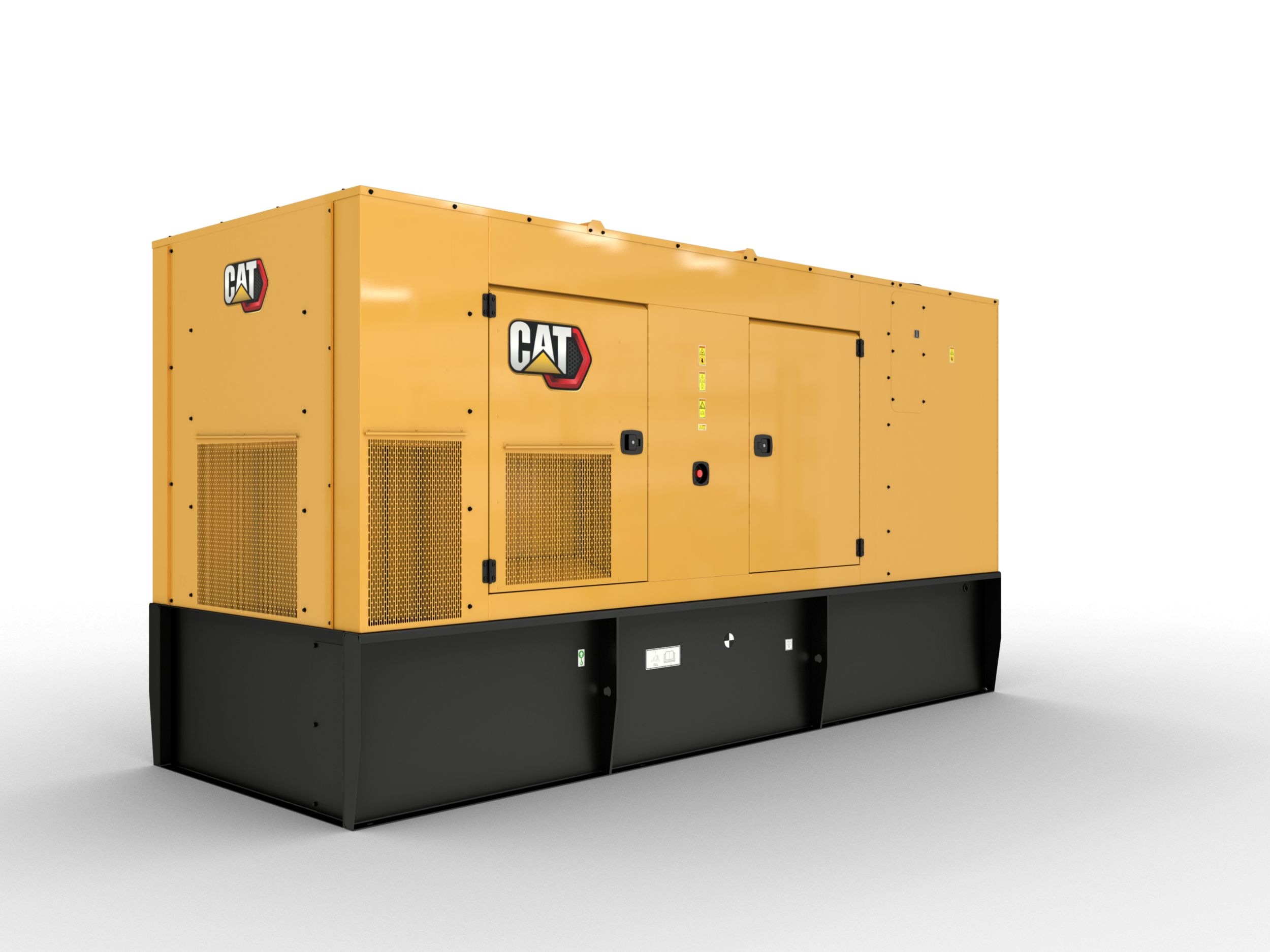

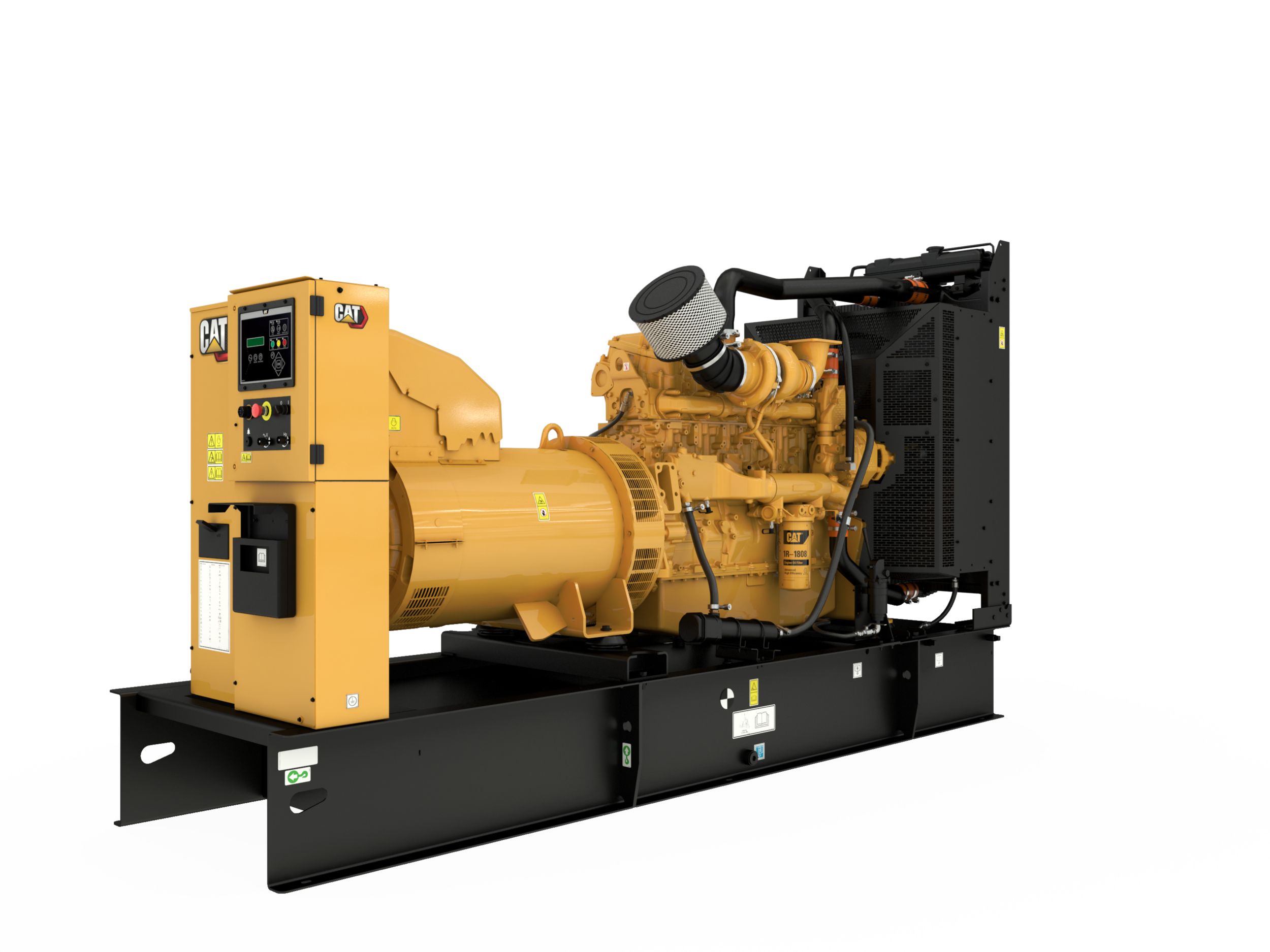

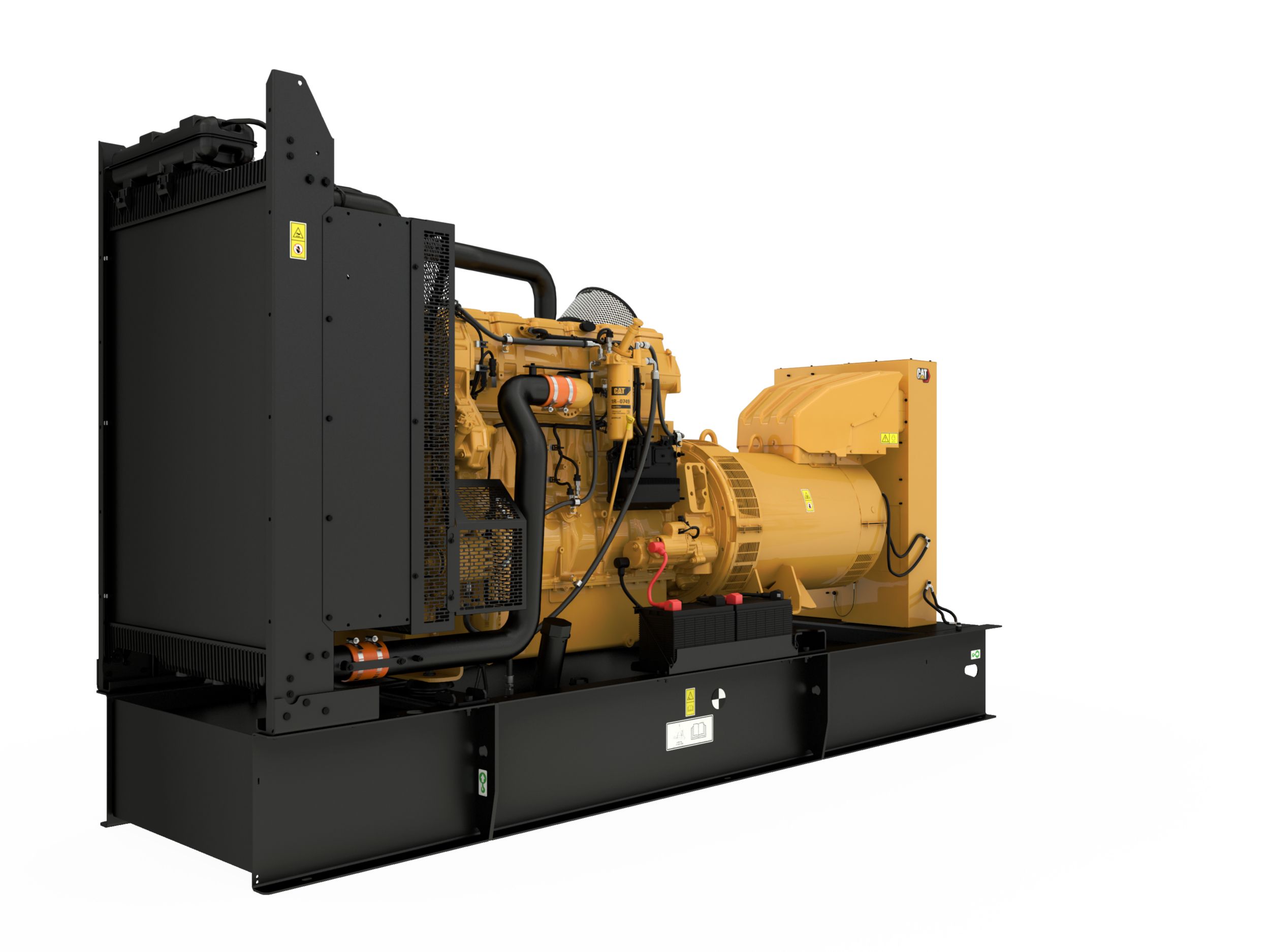

365 - 550 kVA Diesel Generator Set

More Comfort ā€“ More Performance ā€“ More Versatility

  • Integrated CatĀ® Product Linkā„¢ Control System

    • Track Genset Health and Operation Parameters
    • Genset Utilization and Performance Tracking

  • Remote Connectivity 24/7/365 Monitoring

    Cat Connect option ensures your generator set is always ready to start and perform as expected

  • Optimised for 5% Lower Fuel Consumption

    Longer run times between fuel fills; reduced operating costs

Generator Set Specifications

Duty Cycle Standby, Prime
Emissions/Fuel Strategy Low Fuel, Tier 2 or 3
Frequency 50 Hz
Maximum Rating 550 kVA
Minimum Rating 365 kVA
Speed 1500 rpm
Voltage 208 to 600 Volts

Engine Specifications

Aspiration Air to Air Aftercooled
Bore 5.4 in
Compression Ratio 16.1:1
Displacement 927.56 inĀ³
Engine Model C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
Fuel System MEUI
Governor Type Ademā„¢A4
Stroke 6.75 in

Generator Set Dimensions

Height - Maximum 93.2 in
Length - Maximum 222.7 in
Width - Maximum 90 in

Download resources

Electric Power Ratings Guide
DE450C3, 50 Hz 450 kVA, China Non-Road III Emissions Compliant Spec Sheet
DE500C3, 50 Hz 450 kVA, China Non-Road III Emissions Compliant Spec Sheet
