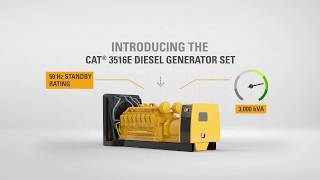

3516E Low Voltage Generator Set

3516E Low Voltage Generator Set

2750 - 3100 kVA Diesel Generator Set

More Comfort ‚Äď More Performance ‚Äď More Versatility

  • Saves up to 33% installed space

    Requires less space for installation

  • Weighs up to 19% Less

    Reduced amount of structural support required

  • Full Power up to 50¬įC Ambient

    Provides full power even on hottest days of the year

Generator Set Specifications

Duty Cycle Standby, Mission Critical, Prime
Emissions/Fuel Strategy Low Fuel Consumption
Frequency 50 Hz
Maximum Rating 3000 kVA (3100 kVA without fan)
Minimum Rating 2750 kVA (2850 kVA without fan)
Prime Power Rating 2750 kVA (2850 kVA without fan)
Speed 1500 rpm
Standby Rating 3000 kVA (3100 kVA without fan)
Voltage 380 to 11000 volts

Engine Specifications

Aspiration TA
Bore 6.69 in
Compression Ratio 14:01
Displacement 4766 in
Engine Model 3516E, SCAC, V-16, 4-Stroke, Water-Cooled Diesel
Fuel System Electronic unit injection
Governor Type Adem‚ĄĘ A5
Stroke 8.46 in

Generator Set Dimensions

Dry Weight - Genset (maximum) 43541 lb
Height - Maximum 133.5 in
Length - Maximum 296.8 in
Width - Maximum 87.2 in

Download resources

Electric Power Ratings Guide
3516E, 50 Hz, 2750-3000 kVA, Low Fuel Consumption Spec Sheet
3516E, 50 Hz, 2750 kVA, Prime-DCP, Low Fuel Consumption Spec Sheet
