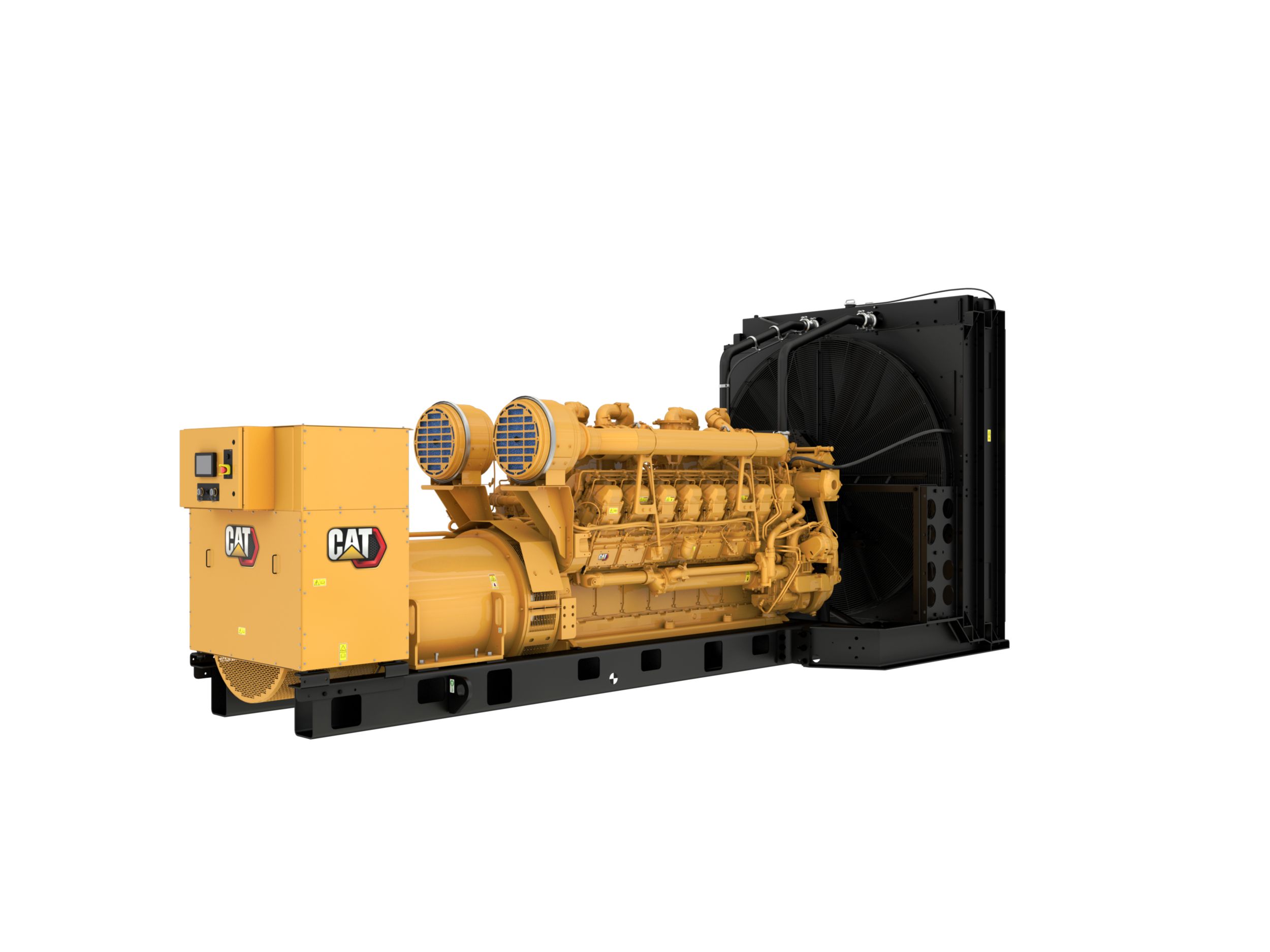

3516B Generator Set

3516B Generator Set

1750 - 2250 kVA Diesel Generator Set

More Comfort ‚Äď More Performance ‚Äď More Versatility

  • Over 200,000 Shipped

    Since 1981, leading the large engine market

  • Over 4,000,000,000 Global Operating Hours

    Proven performance in heavy-duty applications

  • Optimised for 8% Lower Fuel Consumption

    Demonstrated savings in operating costs

Generator Set Specifications

Duty Cycle Standby, Mission Critical, Prime, Continuous
Emissions/Fuel Strategy Low Fuel, Low Emissions
Frequency 50 Hz
Maximum Rating 2250 kVA
Minimum Rating 1750 kVA
Prime Power Rating 2000 kVA
Speed 1500 rpm
Standby Rating 2250 kVA
Voltage 380 to 11000 Volts

Engine Specifications

Aspiration TA
Bore 6.69 in
Compression Ratio 14.0:1
Displacement 69 in
Engine Model 3516B TA, V-16, 4-Stroke Water-Cooled Diesel
Fuel System Electronic unit injection
Governor Type Adem‚ĄĘ3
Stroke 7.48 in

Generator Set Dimensions

Dry Weight - Genset (maximum) 40320 lb
Dry Weight - Genset (minimum) 31900 lb
Height - Maximum 93.2 in
Length - Maximum 6377 in
Length - Minimum 233.4 in
Width - Maximum 90 in

Download resources

Electric Power Ratings Guide
3516B, 50 Hz, 2250 kVA Standby/MC, 2000 kVA Prime, 1750 kVA Cont., Low Fuel Consumption or Low Emissions Spec Sheet
3516B, 50 hz, 2000 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet
