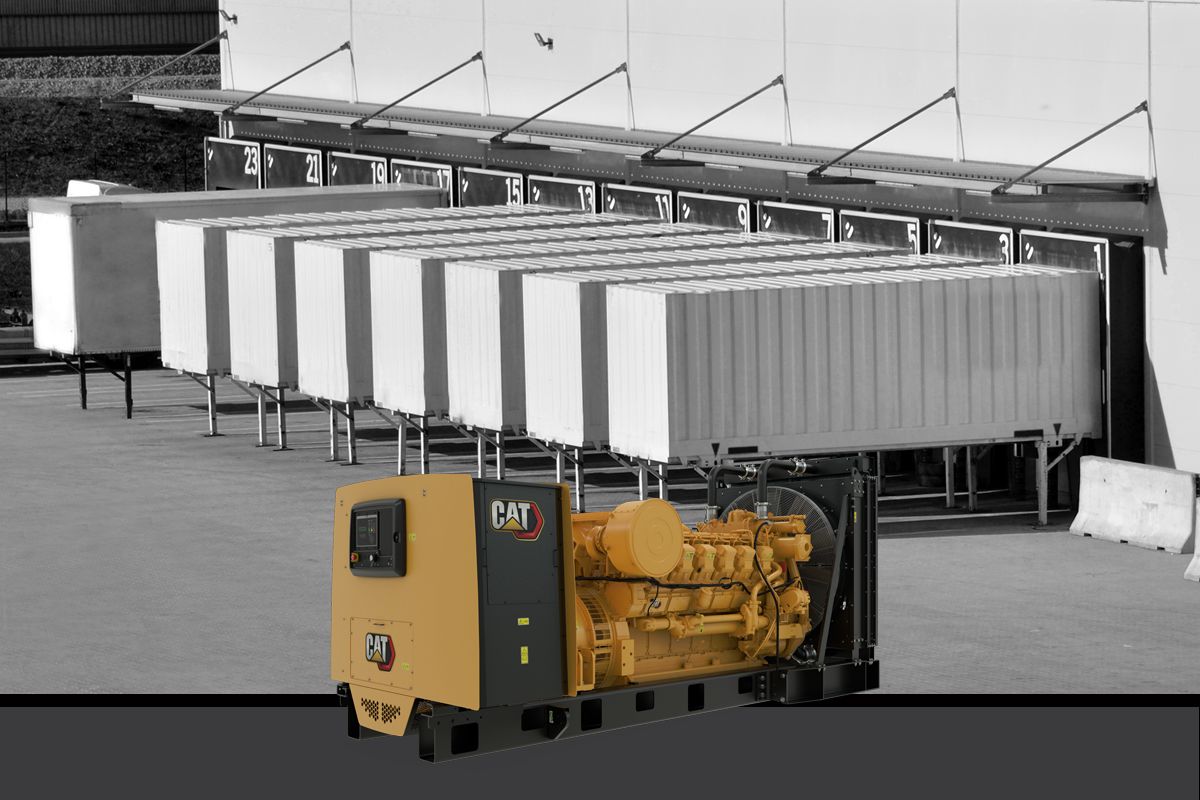

3512B Diesel Generator Set
1600 - 1875 kVA Diesel Generator Set
More Comfort – More Performance – More Versatility
-
- Over 200,000 shipped since 1981, leading the large engine market
-
- Optimised for 11% Lower Fuel Consumption. Demonstrated savings in operating costs
-
- Over 4,000,000,000 global operating hours.Proven performance in heavy-duty applications
-
- Worldwide support with 1,800 dealer branch stores operating in 200 countries. Get extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Duty Cycle | Standby, Mission Critical, Prime, Continuous |
| Emissions/Fuel Strategy | Low Fuel , Low Emissions |
| Frequency | 50 Hz |
| Maximum Rating | 1875 kVA |
| Minimum Rating | 1600 kVA |
| Prime Power Rating | 1700/1600 kVA |
| Speed | 1500 rpm |
| Standby Rating | 1875/1750 kVA |
| Voltage | 400 to 415 Volts |
Engine Specifications
| Aspiration | TA |
| Bore | 6.69 in |
| Compression Ratio | 15.5:1 HD |
| Displacement | 3161.03 inÂł |
| Displacement - HD | 3576 inÂł |
| Engine Model | 3512B TA, V-12, 4-Stroke Water-Cooled Diesel |
| Fuel System | Electronic Unit Injection |
| Governor Type | ADEM™ A3 |
| Stroke | 7.48 in |
| Stroke - HD | 8.46 in |
Generator Set Dimensions
| Dry Weight - Genset (maximum) | 26530 lb |
| Dry Weight - Genset (minimum) | 25620 lb |
| Height - Maximum | 94.9 in |
| Height - Minimum | 94.9 in |
| Length - Maximum | 217.1 in |
| Length - Minimum | 212.8 in |
| Width - Maximum | 90 in |
| Width - Minimum | 90 in |
Download resources
Electric Power Ratings Guide
3512B, 50 Hz, 1750 kVA Standby/MC, 1600 kVA Prime, Low Fuel Consumption or Low Emissions Spec Sheet
3512B Upgradeable, 50 Hz, 1875 kVA Low Fuel Consumption or Low Emissions Spec Sheet
3512B, 50 Hz, 1600 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet
3512B, 50 Hz, 1700 kVA, Prime-DCP, Low Fuel Consumption or Low Emissions Spec Sheet
