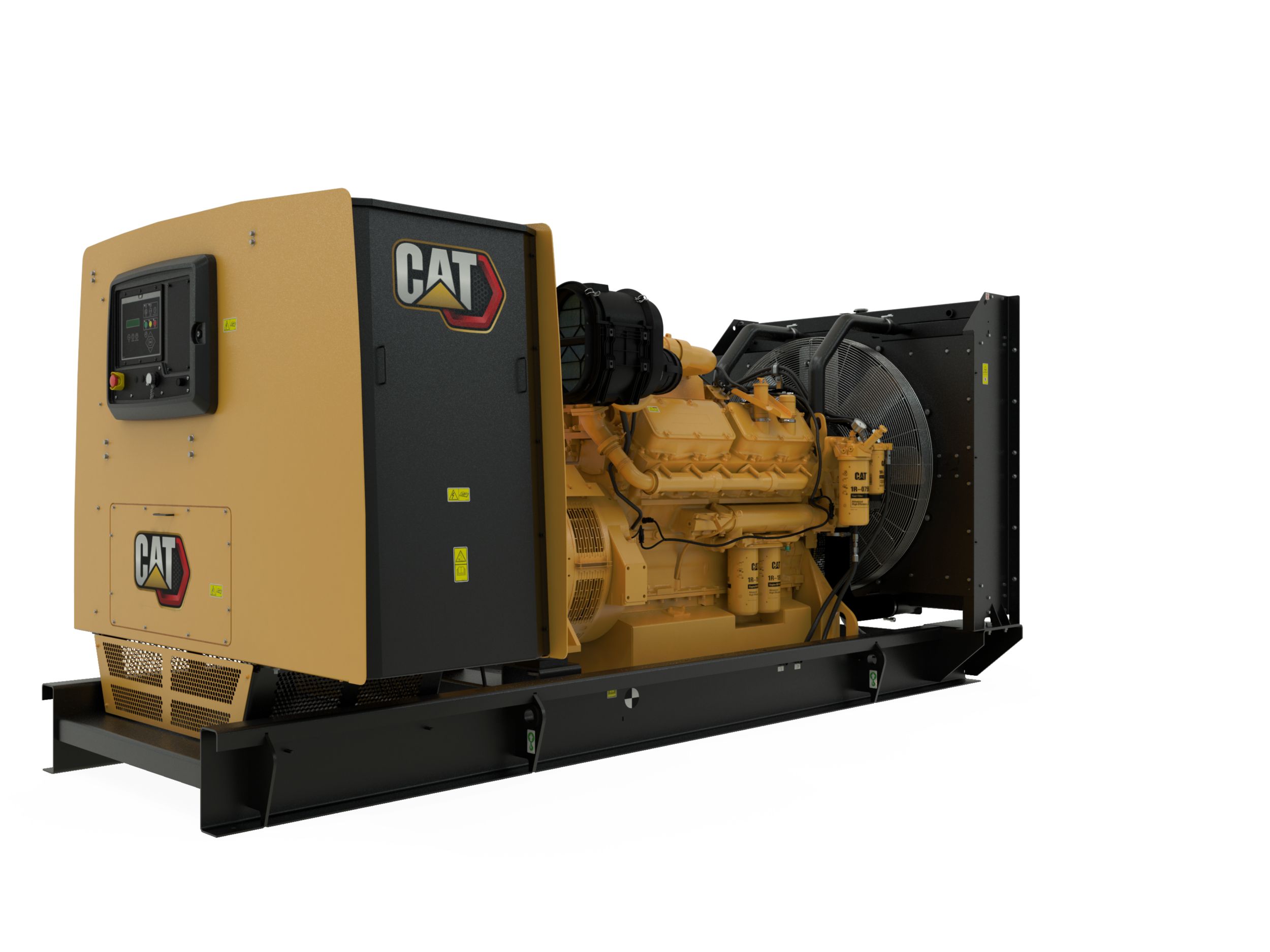

3412C | 750kVA 50Hz Generator Set
680 - 750 kVA Diesel Generator Set
More Comfort – More Performance – More Versatility
-
Accepts 100% block load in 1 step
Can handle large loads without affecting operations
-
Utilizes the latest ADEM 5 Controllers
Provides precise control over entire range of loads
-
Upgradeable controls. Allows for easy retrofit of EMCP 4.3/4.4 Controllers
Generator Set Specifications
| Duty Cycle | Standby, Prime |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Frequency | 50 Hz |
| Maximum Rating | 750 kVA |
| Minimum Rating | 680 kVA |
| Speed | 1500 rpm |
| Voltage | 380 to 415 Volts |
Engine Specifications
| Aspiration | Turbocharged, Air to Air Aftercooled |
| Bore | 5.4 in |
| Compression Ratio | 13:01 |
| Displacement | 1648.86 inÂł |
| Engine Model | 3412C TA, V-12, 4-Stroke Water-Cooled Diesel |
| Fuel System | Pump and Lines |
| Governor Type | ADEM™ A5 |
| Stroke | 6 in |
Generator Set Dimensions
| Dry Weight - Genset (maximum) | 13030 lb |
| Dry Weight - Genset (minimum) | 12039 lb |
| Height - Maximum | 75 in |
| Length - Maximum | 162.4 in |
| Width - Maximum | 78.3 in |
| Width - Minimum | 75 in |
