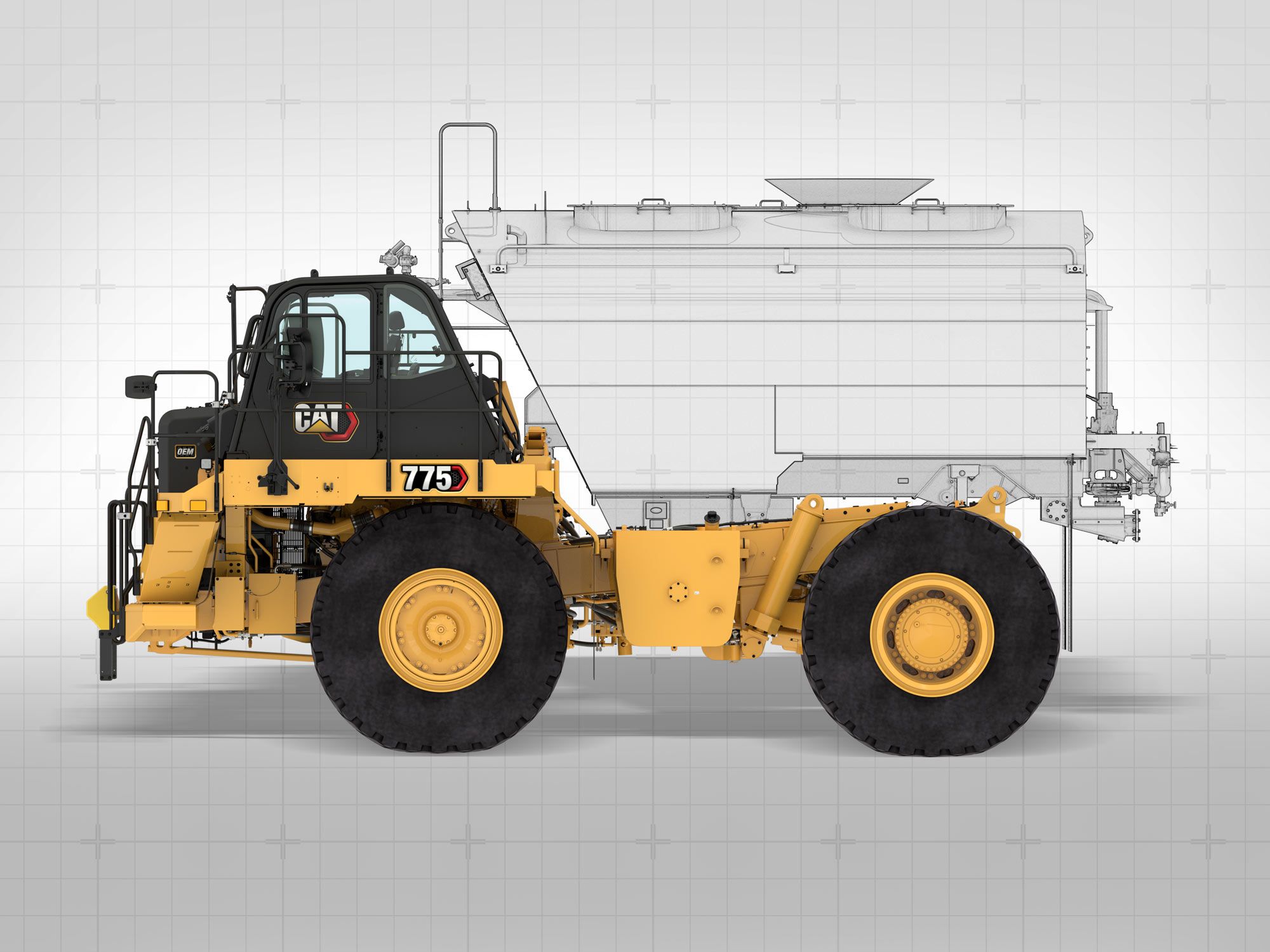

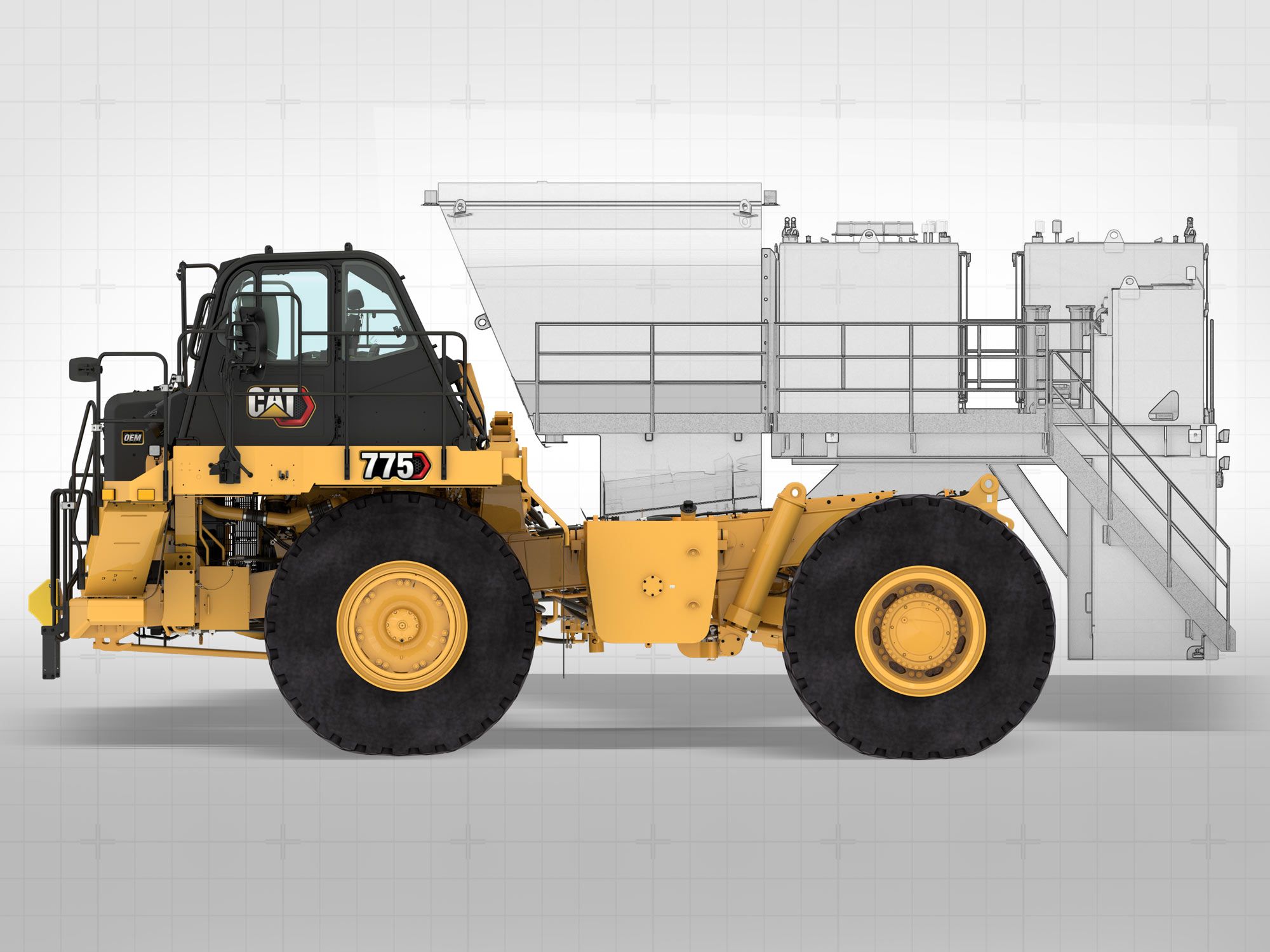

Get a quote775G Off-Highway Truck Bare Chassis
Customization to Work for Your Application.
Engine
| Bore | 5.4 in |
| Displacement | 1648 in³ |
| Engine Model | Cat® C27 |
| Gross Power - SAE J1995 | 825 hp |
| Note | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. Specifications shown are for LRC model. |
| Rated Net Power - SAE J1349 | 683 hp |
| Stroke | 6 in |
Weights
| HRC Bare Chassis Weight with Hoist | 77781 lb |
| HRC Bare Chassis Weight without Hoist | 76573 lb |
| HRC Gross Vehicle Weight (Target) with Hoist | 246503 lb |
| HRC Gross Vehicle Weight (Target) without Hoist | 246503 lb |
| LRC Bare Chassis Weight with Hoist | 76326 lb |
| LRC Bare Chassis Weight without Hoist | 75118 lb |
| LRC Gross Vehicle Weight (Target) with Hoist | 246503 lb |
| LRC Gross Vehicle Weight (Target) without Hoist | 246503 lb |
| Note | LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets. |
Operating Specifications
| Nominal Water Tank Capacity | 15000 gal (US) |
ROPS
| Tractor ROPS | 85288 lb |
Transmission
| Forward - 1 | 6.6 mile/h |
| Forward - 2 | 9.3 mile/h |
| Forward - 3 | 12.6 mile/h |
| Forward - 4 | 16.8 mile/h |
| Forward - 5 | 22.8 mile/h |
| Forward - 6 | 30.7 mile/h |
| Forward - 7 | 41.6 mile/h |
| Note | Maximum travel speeds with standard 24.00R35 (E4) tires |
| Reverse | 8.7 mile/h |
Brakes
| Brake Surface - Front | 257 in² |
| Brake Surface - Rear | 9497 in² |
Service Refill Capacities
| Brake Hoist System | 85 gal (US) |
| Brake/Hoist Hydraulic Tank | 46.5 gal (US) |
| Cooling System | 45 gal (US) |
| Crankcase | 24 gal (US) |
| Differential - Final Drives | 38 gal (US) |
| Fuel Tank Capacity | 210 gal (US) |
| Steering System - Including Tank | 14 gal (US) |
Steering
| Steer Angle | 31 ° |
| Steering Standards | ISO 5010:2007 |
| Turning Circle - Clearance Diameter | 85.6 ft |
| Turning Diameter | 77.1 ft |
