Get a quote24 Motor Grader
The Mine Haul Road Master
More Comfort – More Performance – More Versatility
-
Command the road. Without compromise.

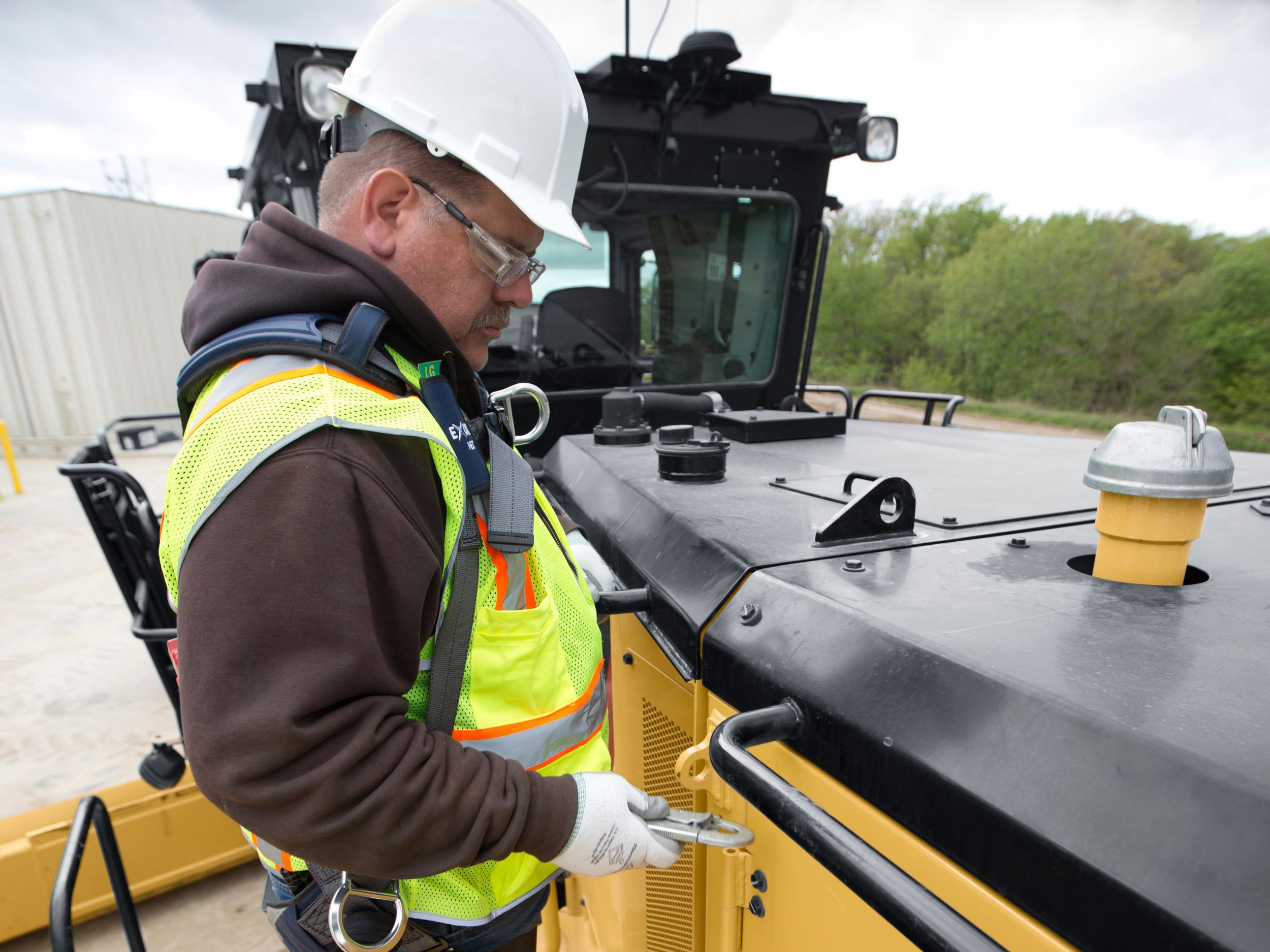

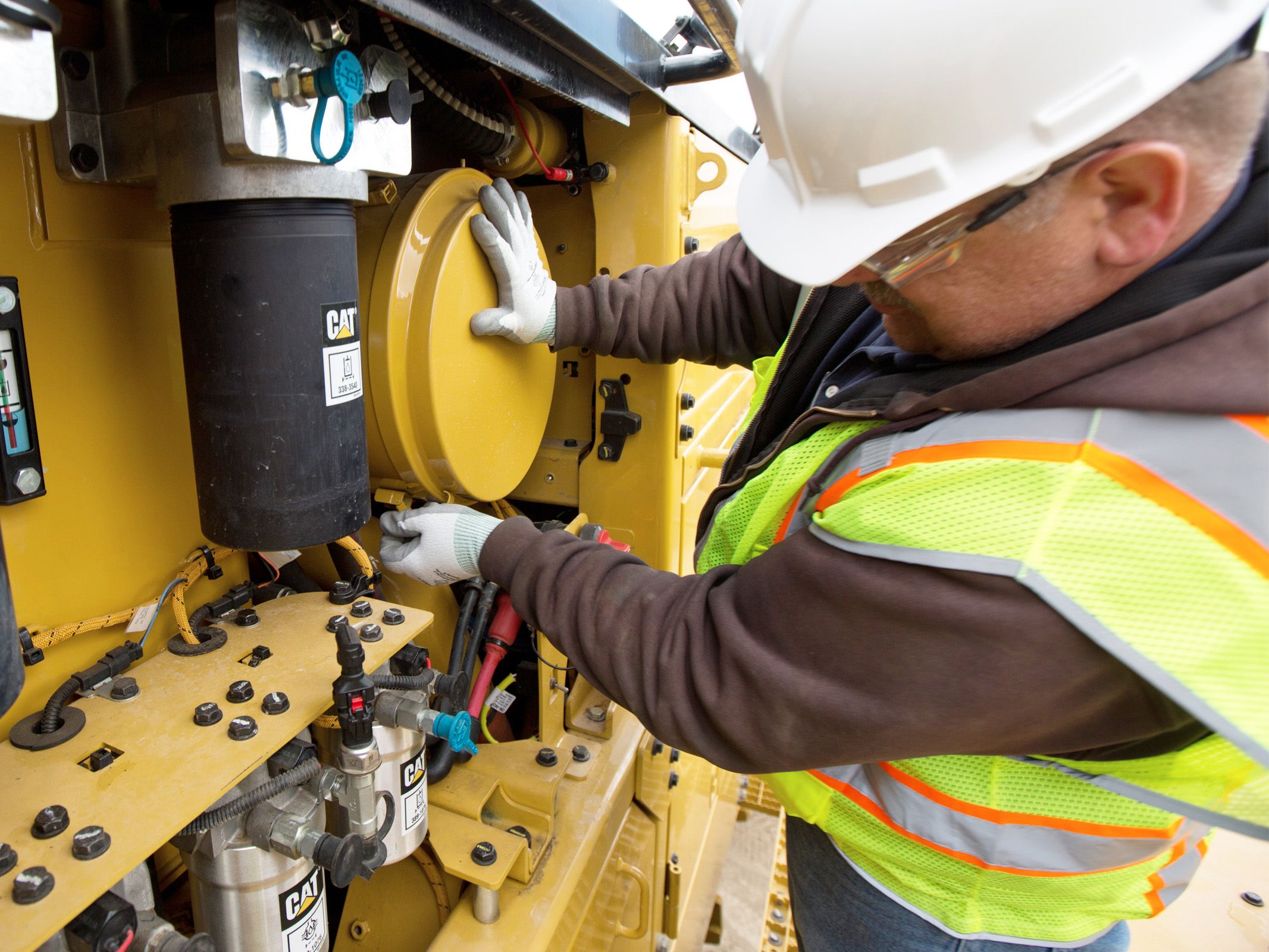

Designed for productivity: clustered filters and a ground-level fluid center speed up service, while modular components and extended intervals keep your machine working longer—delivering more uptime and greater value.
-
Crafted for Longevity
Boost productivity with the Cat® C27 engine delivering steady grading speed. Automatic power-to-ground ensures peak performance in any condition, while a rugged powertrain offers unmatched durability and control.
-
More weight, more power, more coverage
Experience unmatched performance with 221% more weight, double the power, and greater coverage in fewer passes. Boost efficiency with the High Performance Circle and choose a 24-ft or optional 28-ft moldboard for maximum productivity.
Engine
| Bore | 5.4 in |
| Displacement | 1648 in³ |
| Emissions | Tier 4 Final/Stage IV or Equivalent to Tier 2/Stage II |
| Engine Model | Cat C27 |
| Net Power - EEC 80/1269 | 535 hp |
| Note (1) | Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture. |
| Note (2) | Optimized VHP Plus is standard for the 24. |
| Note (3) | Net power advertised is the power available at rated speed of 1,800 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. |
| Note (4) | Power as declared per ISO 14396. Rated rpm 1,800 (561 hp) |
| Number of Cylinders | 12 |
| Standard Capability | 122 °F |
| Stroke | 6 in |
Weights
| Operating Weight - Typically Equipped | 165314 lb |
Moldboard
| Blade Height | 40 in |
| Blade Width | 24 ft |
Blade Range
| Maximum Depth of Cut | 21.7 in |
| Maximum Lift Above Ground | 16.1 in |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. |
Machine Weight
| Weight* | 161695 lb |
