140 Motor Grader LVR

140 Motor Grader LVR

Get More Done Comfortably and Efficiently

Get a quote

More Comfort – More Performance – More Versatility

  • Lower maintenance costs

    Extend typical maintenance intervals with the new filtration technology and grouped filters for easy access.

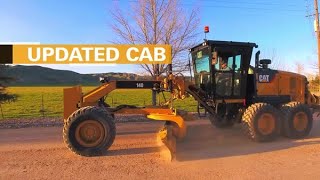

  • Cab Designed for comfort

    Be productive and comfortable with steering wheel and lever controls and the ergonomically adjustable console and seat.

  • Material savings

    Use less material with scalable Cat Grade technology solutions to increase accuracy and consistency.

Engine

Bore 4.5 in
Displacement 567.5 in³
Emissions U.S. EPA Tier 4 Final/EU Stage V
Engine Model Cat C9.3
Engine RPM 2,000
Net Power - EEC 80/1269 250 hp
Net Power - ISO 9249/SAE J1349 250 hp
Number of Cylinders 6
Standard Capability 109 °F
Stroke 5.9 in
Torque Rise - ISO 9294 44%

Weights

Operating Weight - Typically Equipped 44613 lb

Moldboard

Arc Radius 16.3 in
Blade Width 12 ft
Cutting Edge 6 in
End Bit 6 in
Throat Clearance 6.5 in

Air Conditioning System

Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.

Dimensions

Basic Blade Width 140 in
Length of Machine* 397.6 in
Maximum Height 132 in
Note *Typically equipped with push block and ripper.
Width 97.6 in

Service Refill

Circle Drive 1.8 gal (US)
Engine Crankcase 7.9 gal (US)
Front Wheel Spindle Bearing - Each 0.13 gal (US)
Fuel Tank 100 gal (US)
Hydraulic System 14.5 gal (US)

Machine Weight

All-Wheel Drive (AWD) Weight 44613 lb
Note *Typically equipped with push block and ripper.

Blade Range

Maximum Depth of Cut 28.9 in
Maximum Lift Above Ground 18.9 in
