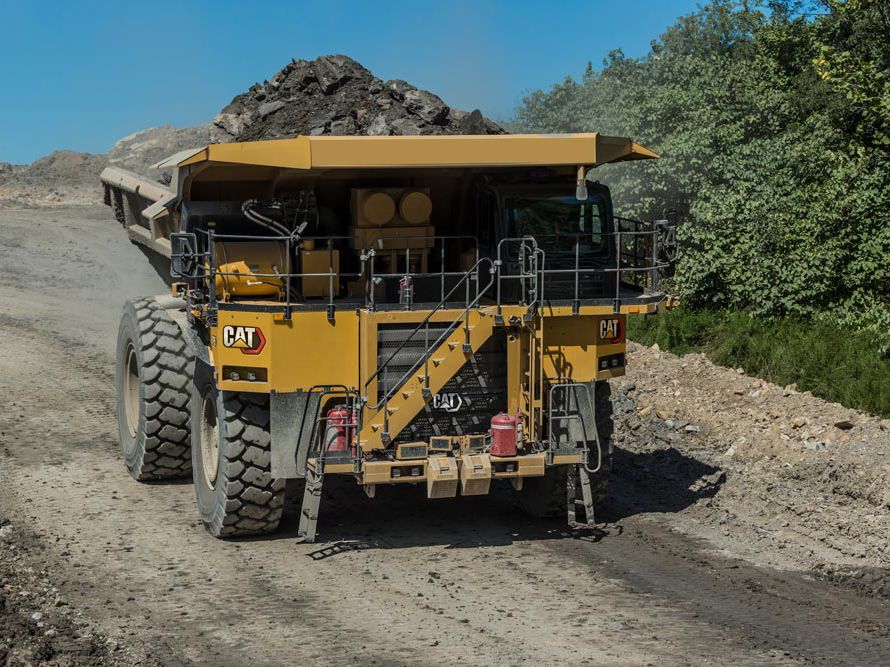

A Mining Industry Game Changer
More Comfort – More Performance – More Versatility
-
Up to 5% Fuel Reduction in Cycle Times
With larger tire options, high horsepower option and better shifting & acceleration with APECS transmission
-
34% More Operator Space
17% wider, 11% more legroom and 19% more shoulder room than D-Series models
-
Up to 9% Less Fuel Consumption
With Tier 4 engine
Engine
| Bore | 6.7 in |
| Displacement | 3573 in³ |
| Emissions Rating | Fuel Optimized |
| Engine Model | Cat 3512E |
| Gross Power - SAE J1995 | 1600 hp |
| Net Power - SAE J1349 | 1509 hp |
| Note (1) | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. |
| Note (2) | U.S. EPA Tier 4 Final / EU Stage V available for applicable markets. |
| Note (3) | Additional fuel optimized selectable power ratings: 1,450 hp |
| Stroke | 8.5 in |
Weights - Approximate
| Body Weight | 57779 lb |
| Chassis Weight (33.00R51 Tires) | 187736 lb |
| Chassis Weight (36.00R51 Tires) | 192959 lb |
| Nominal Rated Payload (33.00R51 Tires) | 158 ton (US) |
| Nominal Rated Payload (36.00R51 Tires) | 162 ton (US) |
| Note (1) | Consult your tire manufacturer for maximum tire load |
| Note (2) | Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires. |
| Note (3) | Unlined HP Body. Body weight varies depending on body selection and configuration. |
| Rated Gross Machine Weight (33.00R51 tires) | 550000 lb |
| Rated Gross Machine Weight (36.00R51 tires) | 564000 lb |
Weight Distributions - Approximate
| Front Axle - Empty | 48% |
| Front Axle - Loaded | 33% |
| Note | Weight distributions optimized with Cat body. |
| Rear Axle - Empty | 52% |
| Rear Axle - Loaded | 67% |
Final Drives
| Differential Ratio | 2:10:01 |
| Planetary Ratio | 10.83:1 |
| Total Reduction Ratio | 22.75:1 |
| Type | Double reduction, planetary with full floating axles. |
Transmission
| Forward - 1 | 7.4 mile/h |
| Forward - 2 | 10 mile/h |
| Forward - 3 | 13.7 mile/h |
| Forward - 4 | 18.5 mile/h |
| Forward - 5 | 25 mile/h |
| Forward - 6 | 35.6 mile/h |
| Note | Maximum travel speeds with standard 33.00-R51 tires. |
| Reverse | 7.2 mile/h |
| Top Speed - Loaded | 35.6 mile/h |
Tires
| Note (1) | Quick Change Rims optional. |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities. |
| Optional Tire | 36.00R51 |
| Optional Tires | 33.00R51 |
| Rims | 610 mm (24") Rims (optional). 660 mm (26") Rims (optional). |
Braking System
| Front Wet Disc Brake Surface Area | 9487 in² |
| Parking Brake | Four corner, multi disc, spring applied, hydraulically released |
| Rear - Wet Disc Brake Surface Area | 13908 in² |
| Service Brakes | Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated |
| Standards | Service and Secondary: ISO 3450:2011 |
Body Hoists
| Body Lower Time - Float | 15.6 s |
| Body Power Down- High Idle | 15.5 s |
| Body Raise Time - High Idle | 15 s |
| Pump Flow - High Idle | 223 gal/min |
| Relief Valve Setting - Raise | 2500 psi |
| Type | Twin, two-stage hydraulic cylinders with snubbing valve. |
Capacity - HP Body - 100% Fill Factor
| Heaped (SAE 2:1)* | 110 m3 / 144 yd3 |
| Struck | 84 m3 / 110 yd3 |
Suspension
| Effective Cylinder Stroke - Front | 12.6 in |
| Effective Cylinder Stroke - Rear | 6.5 in |
| Rear axle - Oscillation | +/- 5.4 degrees |
| Type | Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments |
Service Refill Capacities
| Brake Hoist System - Includes Tank | 143 gal (US) |
| Brake/Hoist Tank | 135 gal (US) |
| Cooling System | 126 gal (US) |
| Crankcase | 54 gal (US) |
| Diesel Exhaust Fluid Tank | 36 gal (US) |
| Differential - Final Drives | 139 gal (US) |
| Front Wheels - Each | 7.1 gal (US) |
| Fuel Tank | 410 gal (US) |
| Steering System - Includes Tank | 31 gal (US) |
| Steering Tank | 29 gal (US) |
| Torque Converter - Transmission System - Including Sump | 46 gal (US) |
Cab
| Air Conditioning | HFC - 134A refrigerant: 24,500 Btu/h |
| FOPS Standards | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer. |
| Heater / Defroster | 33300 Btu/h |
| ROPS Standards (1) | ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer. |
Sound
| Sound Standards | The operator sound pressure level, 77 dB(A) with direct drive and 75 dB9A) with optional clutch, tested to ISO 6396:2008. |
Steering
| Steer Angle | 25.1 ° |
| Steering Standards | ISO 5010:2019 |
| Turning Diameter - ISO 7457:1997 (33.00R51 tires) | 96.6 ft |
Dimensions (All dimensions are approximate. MSD II Body, 33R51 tires, unloaded machine.)
| Centerline Front Tire Width | 15.91 ft |
| Centerline of Rear Dual Tire Width | 14.06 ft |
| Dump Clearance | 3.7 ft |
| Engine Guard Clearance | 3.41 ft |
| Front Canopy Height | 19.8 ft |
| Ground Clearance | 3.29 ft |
| Height - Top of ROPS | 17.09 ft |
| Inside Body Depth - Maximum | 9.15 ft |
| Inside Body Length | 27.29 ft |
| Inside Body Width | 19.72 ft |
| Loading Height - Empty | 17.39 ft |
| Operating Width | 24.72 ft |
| Outside Body Width | 22 ft |
| Overall Body Length | 39.32 ft |
| Overall Canopy Width | 24.81 ft |
| Overall Height - Body Raised | 39.48 ft |
| Overall Length | 39.23 ft |
| Overall Tire Width | 20.59 ft |
| Rear Axle - Clearance | 3.25 ft |
| Rear Axle - Tail | 12.56 ft |
| Wheel Base | 17 ft |
