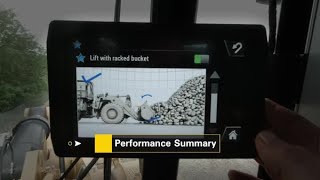

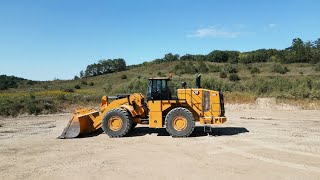

Engine
|
Bore
|
5.7 in
|
|
Displacement
|
1105 in³
|
|
Emissions
|
U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards, Brazil MAR-1 and China Nonroad Stage IV emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA, and U.S. EPA Tier 2 and EU Stage II
|
|
Engine Model
|
Cat® C18 ™
|
|
Engine Power - ISO 14396:2002
|
580 HP
|
|
Gross Power - SAE J1995:2014
|
588 HP
|
|
Net Power - SAE J1349:2011
|
541 HP
|
|
Peak Power Speed
|
1500/rpm
|
|
Peak Torque - 1,200 rpm
|
2230 lb/ft
|
|
Rated Speed
|
1700/min
|
|
Stroke
|
7.2 in
|
|
Torque Rise
|
58 %
|
Operating Specifications
|
Bucket Capacity Range
|
4.7-13 m3 (6.2-17 yd3)
|
|
Cat Truck Match - High Lift
|
773～775
|
|
Cat Truck Match - Standard
|
770～772
|
|
Operating Weight
|
112574 lb
|
|
Rated Payload - Loose Material
|
16 t
|
|
Rated Payload - Quarry Face
|
12.5 t
|
Transmission
|
Direct Drive - Forward 1
|
Lock-up disabled
|
|
Direct Drive - Forward 2
|
7.8 mile/h
|
|
Direct Drive - Forward 3
|
13.9 mile/h
|
|
Direct Drive - Forward 4
|
24.4 mile/h
|
|
Direct Drive - Reverse 1
|
5 mile/h
|
|
Direct Drive - Reverse 2
|
8.9 mile/h
|
|
Direct Drive - Reverse 3
|
15.8 mile/h
|
|
Forward - 1
|
4 mile/h
|
|
Forward - 2
|
7.2 mile/h
|
|
Forward - 3
|
12.7 mile/h
|
|
Forward - 4
|
21.6 mile/h
|
|
Reverse - 1
|
4.7 mile/h
|
|
Reverse - 2
|
8.3 mile/h
|
|
Reverse - 3
|
14.4 mile/h
|
|
Transmission Type
|
Cat planetary powershift
|
Hydraulic System - Lift/Tilt
|
Cylinders, Double Acting - Lift, Bore and Stroke
|
210 mm × 1050 mm (8.7 in × 41.3 in)
|
|
Cylinders, Double Acting - Tilt, Bore and Stroke
|
269 mm × 685 mm (8.7 in × 27 in)
|
|
Lift/Tilt System
|
Variable displacement piston
|
|
Lift/Tilt System - Circuit
|
EH- Positive Flow Control, Flow Sharing
|
|
Maximum Flow at 1,400-1,860 rpm
|
153 gal/min
|
|
Pilot System
|
Variable displacement piston
|
|
Relief Valve Setting - Lift/Tilt
|
4757 psi
|
|
Relief Valve Setting - Main
|
551 psi
|
Hydraulic Cycle Time (1,400-1,860 rpm)
|
Dump
|
2.2 s
|
|
Lower Float Down
|
3.5 s
|
|
Rack Back
|
4.5 s
|
|
Raise
|
8 s
|
|
Total Hydraulic Cycle Time - Empty Bucket
|
18.2 s
|
Hydraulic System - Steering
|
Maximum Flow
|
71.3 gal/min
|
|
Relief Valve Setting - Steering
|
4351 psi
|
|
Steering Cycle Times - High Idle
|
3.4 s
|
|
Steering Cycle Times - Low Idle
|
5.6 s
|
|
Steering System - Circuit
|
Pilot, load sensing
|
|
Steering System - Pump
|
Piston, variable displacement
|
|
Total Steering Angle
|
86 °
|
Air Conditioning System
|
Air Conditioning
|
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
|
Axles
|
Front
|
Fixed
|
|
Oscillation Angle
|
13 °
|
|
Rear
|
Trunnion
|
Operator's Cab
|
ROPS/FOPS
|
ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
|
Service Refill Capacities
|
Coolant (Validated by Test Cell Fill Quantities)
|
33 gal (US)
|
|
Cooling System
|
31.7 gal (US)
|
|
Crankcase
|
15.9 gal (US)
|
|
Diesel Exhaust Fluid Tank
|
8.7 gal (US)
|
|
Differential - Final Drives - Front
|
49.1 gal (US)
|
|
Differential - Final Drives - Rear
|
49.1 gal (US)
|
|
Fuel Tank
|
188 gal (US)
|
|
Hydraulic System - Tank Only
|
63.4 gal (US)
|
|
Hydraulic System Factory Fill
|
125.5 gal (US)
|
|
Transmission
|
31.7 gal (US)
|
|
Transmission - Validated by Test Cell Fill Quantities
|
29 gal (US)
|
Sound Performance - Tier 4 Final / Stage V - Standard
|
Machine Sound Power Level (ISO 6395:2008)
|
111 dB(A)
|
|
Operator Sound Pressure Level (ISO 6396:2008)
|
73 dB(A)
|
Sound Performance - Tier 3 / Stage III - Standard
|
Machine Sound Power Level (ISO 6395:2008)
|
112 dB(A)
|
|
Operator Sound Pressure Level (ISO 6396:2008)
|
73 dB(A)
|
Dimensions (Approximate) - Standard Lift Linkage
|
B-Pin Height - Maximum Lift
|
18 ft
|
|
Clearance at Maximum Lift
|
11.9 ft
|
|
Front Axle Centerline to Bucket Tip
|
14 ft
|
|
Ground to Lower Hitch Clearance
|
1.9 ft
|
|
Ground to Top of Exhaust Stacks
|
14.8 ft
|
|
Ground to Top of Hood
|
10.9 ft
|
|
Ground to Top of ROPS
|
13.8 ft
|
|
Maximum Overall Height - Bucket Raised
|
24.5 ft
|
|
Maximum Overall Length
|
39.3 ft
|
|
Reach - Maximum Lift
|
6.5 ft
|
|
Rear Axle - Centerline to Bumper
|
10.5 ft
|
|
Wheel Base
|
14.9 ft
|
Dimensions (Approximate) - High Lift Linkage
|
B-Pin Height - Maximum Lift
|
19.3 ft
|
|
Clearance at Maximum Lift
|
13.3 ft
|
|
Front Axle Centerline to Bucket Tip
|
15.3 ft
|
|
Ground to Lower Hitch Clearance
|
1.9 ft
|
|
Ground to Top of Exhaust Stacks
|
14.8 ft
|
|
Ground to Top of Hood
|
10.9 ft
|
|
Ground to Top of ROPS
|
13.8 ft
|
|
Maximum Overall Height - Bucket Raised
|
25.8 ft
|
|
Maximum Overall Length
|
40.7 ft
|
|
Reach - Maximum Lift
|
6.8 ft
|
|
Rear Axle - Centerline to Bumper
|
10.5 ft
|
|
Wheel Base
|
14.9 ft
|
Buckets
|
Bucket Capacities
|
4.7-13 m3 (6.2-17 yd3)
|
