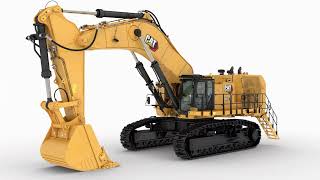

Get a quote6015 Hydraulic Shovel
More Time to Load More
More Comfort – More Performance – More Versatility
-
Increased Uptime
Proven Cat C27 engine with non-DEF aftertreatment and longer undercarriage life
-
Improved Productivity
Proven pass match with 100-ton trucks
-
At Least 5.5% Reduced Fuel Usage in Working Conditions
With new Pilot Pump System
General
| Bucket Payload | 16.1 ton (US) |
| Engine Output - SAE J1995 | 824 hp |
| Note | Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available. |
| Operating Weight | 154.3 ton (US) |
Engine - U.S. EPA Tier 4 Final
| Engine Model | Cat® C27 |
| Gross Power - SAE J1995 | 824 hp |
| Net Power - SAE J1349 | 812 hp |
Engine - Cat C27 with Tier 4 Final Emission Standards
| Bore | 5.4 in |
| Displacement | 1648 in³ |
| Number of Cylinders | 12 |
| Stroke | 6 in |
Engine - Equivalent to U.S. EPA Tier 2
| Engine Model | Cat® C27 |
| Gross Power - SAE J1995 | 839 hp |
| Net Power - SAE J1349 | 829 hp |
Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards
| Aspiration | Turbocharged and air-to-air aftercooled |
| Bore | 5.4 in |
| Displacement | 1648 in³ |
| Number of Cylinders | 12 |
| Stroke | 6 in |
Engine
| Emissions | U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1 |
Operating Weights - Backhoe
| Operating Weight | 154 ton (US) |
Weights
| Ground Pressure | 23.6 psi |
| Note | Operating weight includes: 700 mm (28 in) track pads, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants |
| Operating Weight | 308000 lb |
Track
| Extra Wide | 39 in |
| Number of Carrier Rollers - Each Side | 3 |
| Number of Shoes - Each Side | 46 |
| Number of Track Rollers - Each Side | 9 |
| Standard | 28 in |
| Track Pads | Heavy Duty (HD) with double grouser |
| Wide | 35 in |
Drive
| Gradeability - Travel Drives | Approximately 42% |
| Hydraulic Track Tensioning | With accumulator |
| Maximum Drawbar Pull | 179847 lbf |
| Maximum Drawbar Pull - Forward | 192886 lbf |
| Maximum Drawbar Pull - Reverse | 220987 lbf |
| Travel Speed - Two Stages - 1st Stage - Maximum | 1.6 mile/h |
| Travel Speed - Two Stages - 2nd Stage - Maximum | 2.3 mile/h |
Service Refill Capacities
| Cooling System | 44 gal (US) |
| Engine Oil | 23 gal (US) |
| Fuel Tank | 449 gal (US) |
| Grease Tank | 57 gal (US) |
| Hydraulic System - Including Tank | 463 gal (US) |
| Hydraulic Tank | 253 gal (US) |
| Swing Drive | 2.4 gal (US) |
Electrical System
| Alternator Rating | 150 A (24 V) in total |
| Batteries | 4 × 200 Ah (12 V each) |
| Components (1) | Emergency stop switches: one in cab, three in engine module, one pull rope accessible from ground level |
| Components (2) | Four maintenance free batteries |
| Components (3) | Lockable battery isolation switch |
| Components (4) | 5 LED service lights |
| Components (5) | 14 LED high-brightness working lights |
| Components (6) | 2 electric horns |
| Components (7) | Two (2) lights for rear end |
| Components (8) | One (1) light for machine deck/service |
| Components (9) | One (1) beacon light on cabin roof |
| System Voltage | 24 V |
Hydraulic System
| Engine Fan Pump | 1 × variable swash plate pump |
| Engine Fan Pump - Maximum Flow, Engine Fan | 53.1 gpm |
| Engine Fan Pump - Maximum Pressure, Engine Fan | 3191 psi |
| Filters (1) | Full-flow high-pressure filters (200 μm) for main pumps |
| Filters (2) | Full-flow filters (20 μm), return circuit |
| Filters (3) | Pressure filters (16 μm), servo circuit |
| Filters (4) | Full-flow filters (6 μm), cooling return circuit |
| Filters (5) | Swing charge filter (15 μm) |
| Filters (6) | Pump case return screens (125 μm) |
| Hydraulic Fan Pump | 1 × variable swash plate pump |
| Hydraulic Fan Pump - Maximum Flow, Hydraulic Fan | 22.7 gpm |
| Hydraulic Fan Pump - Maximum Pressure, Hydraulic Fan | 1958 psi |
| Hydraulic Oil Cooling - Diameter of Fan | 46 in |
| Hydraulic Oil Cooling - Maximum Flow | 284 gpm |
| Main Pumps | 3 × variable swash plate pumps |
| Main Pumps - Maximum Pressure - Attachment | 4641 psi |
| Main Pumps - Maximum Pressure - Travel | 4641 psi |
| Main Pumps - Maximum Total Oil Flow | 407 gpm |
| Pilot Pump | 1 × gear pump |
| Pilot Pump - Maximum Flow, Pilot | 40.4 gpm |
| Pilot Pump - Maximum Pressure, Pilot | 1378 psi |
| Swing Pump | 1 × variable swash plate pump |
| Swing Pump - Maximum Flow - Swing | 127 gpm |
| Swing Pump - Maximum Pressure - Swing | 5294 psi |
Swing System
| Features (1) | Closed-loop with torque control |
| Features (2) | Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking |
| Features (3) | All raceways and the internal gearing of swing ring supplied by automatic central lubrication system |
| Maximum Swing Speed | 4.9 r/min |
| Parking Brake | Wet multiple disc brake, spring-loaded/hydraulically released |
| Swing Drive | Two (2) compact planetary transmissions with axial piston motors |
| Swing Ring | Triple-race roller bearing with sealed internal greasing |
Centralized Service Area
| Equipped With (1) | One pull rope emergency stop |
| Equipped With (2) | Quick couplings for: diesel fuel and grease |
| Feature | Accessible from ground level for diesel fuel and grease |
Undercarriage
| Components (1) | Heavy Duty (HD) with double-grouser track pads |
| Components (2) | Chain links connected by hardened pins and bushings |
| Components (3) | Postive Pin Retention (PPR2) sealed and greased track design |
| Components (4) | Hardened running surfaces of sprockets, idlers, rollers and track chain links |
| Components (5) | Fully hydraulic self-adjusting track tensioning system with accumulator |
| Components (6) | Automatic hydraulic retarder valve |
| Components (7) | Acoustic travel alarm (forward and reverse) |
| Gradeability - Travel Drives | 38°/78% (SAE J1309) |
| Hydraulic Track Tensioning | With accumulator |
| Maximum Drawbar Pull - Reverse | 220987 lbf |
| Maximum Tractive Force | 197157 lbf |
| Number of Carrier Rollers - Each Side | 3 |
| Number of Shoes - Each Side | 46 |
| Number of Track Rollers - Each Side | 9 |
| Travel Speed - Two Stages - 1st Stage - Maximum | 1.6 mile/h |
| Travel Speed - Two Stages - 2nd Stage - Maximum | 2.3 mile/h |
Operator's Cab
| Components (1) | Pressurized cab with positive filtration |
| Components (10) | FM/AM radio with MP3 auxiliary port |
| Components (11) | Two stereo speakers |
| Components (12) | Storage shelf suitable for lunch or toolbox |
| Components (13) | Color LCD display with service parameters, event and diagnostic annunciation, preventative maintenance, trip total, lifetime totals. Gauges for engine speed, engine oil pressue, and hydraulic oil temperature |
| Components (14) | Head and arm rests |
| Components (15) | Independently adjustable seat consoles with integrated joysticks |
| Components (16) | Neutral lever (lock out) for all controls |
| Components (17) | Travel control pedals with removable hand levers |
| Components (18) | Two power outlets, 10 amp (total) |
| Components (19) | Laminated front upper window and tempered glass other windows |
| Components (2) | Heated cab mirror |
| Components (3) | Sliding upper door window |
| Components (4) | Glass-breaking safety hammer |
| Components (5) | Removeable lower windshield within cab storage |
| Components (6) | Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM |
| Components (7) | Beverage holder |
| Components (8) | Literature holder |
| Components (9) | AM/FM radio |
Automatic Lubrication System
| Capacity - Grease Barrel | 18 gal (US) |
| Type (1) | Central bank lubrication system |
| Type (2) | Grease is automatically applied to all attachment pivot points, slew bearing, and bucket linkage |
| Type (3) | Standard grease reel on machine for bucket linkage |
| Type (4) | Grease refill service point accessible from ground |
Attachments
| Buckets Equipped With | – Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds |
| Type (1) | Boom and stick torsion-resistant with welded box design |
| Type (2) | High-tensile steel with solid steel castings at pivot areas |
| Type (3) | Boom and stick stress-relieved after welding |
| Type (4) | Float valve for boom down function |
Backhoe Attachment (BH) - Working Range
| Maximum Digging Depth | 26.3 ft |
| Maximum Digging Height | 41.9 ft |
| Maximum Digging Reach | 45.6 ft |
| Maximum Dump Height | 27.9 ft |
Backhoe Attachment (BH) - Digging Forces
| Bucket Digging Force - ISO | 120947 lbf |
| Bucket Digging Force - SAE | 112600 lbf |
| Stick Digging Force - ISO | 104761 lbf |
| Stick Digging Force - SAE | 98800 lbf |
Backhoe Attachment (BH) - Backhoe
| Capacity 1:1 | 10.6 yd³ |
| Maximum Material Density - Loose | 3030 lb/yd³ |
| Number of Teeth | 5 |
| Tooth System | Cat C70 or M75 |
| Total Width | 8.8 ft |
| Weight - Including Standard Wear Package | 18521 lb |
