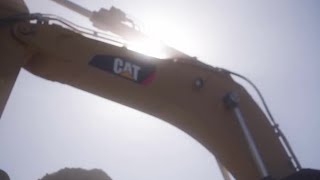

Cat® 395 Hydaulic Excavator

Cat® 395 Hydaulic Excavator

Greater Production. Reinforced Durability. Less Maintenance.

Get a quote

More Comfort – More Performance – More Versatility

  • Up To 10% more productive

    Move more material faster with greater power and bigger buckets.

  • Up To 2X more structural durability

    Do more demanding work with reinforced booms, sticks, and upper and lower frames.

  • Up To 20% less maintenance cost

    Save money and time using less oil and better filters with extended service intervals.

Engine

Biodiesel Capability B20¹
Bore 6 in
Displacement 1105 in³
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Engine Model Cat C18
Engine Power - ISO 14396 543 HP
Engine Power - ISO 14396 (DIN) 551 hp (metric)
Net Power - ISO 9249 542 HP
Net Power - ISO 9249 (DIN) 550 hp (metric)
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,700 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Stroke 7 in

Hydraulic System

Main System - Maximum Flow - Implement 281 gal/min
Maximum Pressure - Equipment 5366 psi
Maximum Pressure - Swing 4496 psi
Maximum Pressure - Travel 5076 psi

Swing Mechanism

Maximum Swing Torque 267333 ft·lbf
Swing Speed 6.26 r/min

Weights

Note (1) Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device.
Operating Weight 207400 lb

Service Refill Capacities

Cooling System 19 gal (US)
DEF Tank 21 gal (US)
Engine Oil 18 gal (US)
Final Drive - Each 5 gal (US)
Fuel Tank Capacity 322 gal (US)
Hydraulic System - Including Tank 196 gal (US)
Hydraulic Tank 98 gal (US)
Swing Drive 6 gal (US)

Dimensions

Boom GP 8.4m (25'7")
Bucket SD 5.2m³ (6.8 yd³)
Counterweight Clearance 5.5 ft
Ground Clearance 2.9 ft
Handrail Height 12.4 ft
Note Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps
Shipping Height - Top of Cab 12 ft
Shipping Length 49.6 ft
Stick R4.4m (14'5")
Tail Swing Radius 15.11 ft
Track Gauge 11.6 ft
Track Length 20.1 ft
Track Length to Center of Rollers 16.1 ft
Transport Width 12.9 ft

Working Ranges & Forces

Boom GP 8.4m (25'7")
Bucket SD 5.2m³ (6.8 yd³)
Bucket Digging Force - ISO 86100 ft·lbf
Maximum Cutting Height 44.5 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 31.4 ft
Maximum Digging Depth 31.9 ft
Maximum Loading Height 30.4 ft
Maximum Reach at Ground Level 48.3 ft
Maximum Vertical Wall Digging Depth 22.3 ft
Minimum Loading Height 9.11 ft
Stick R4.4m (14'5")
Stick Digging Force - ISO 68540 ft·lbf

Sustainability

Recyclability 98%

Air Conditioning System

Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.00 kg (2.2lb) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons).
