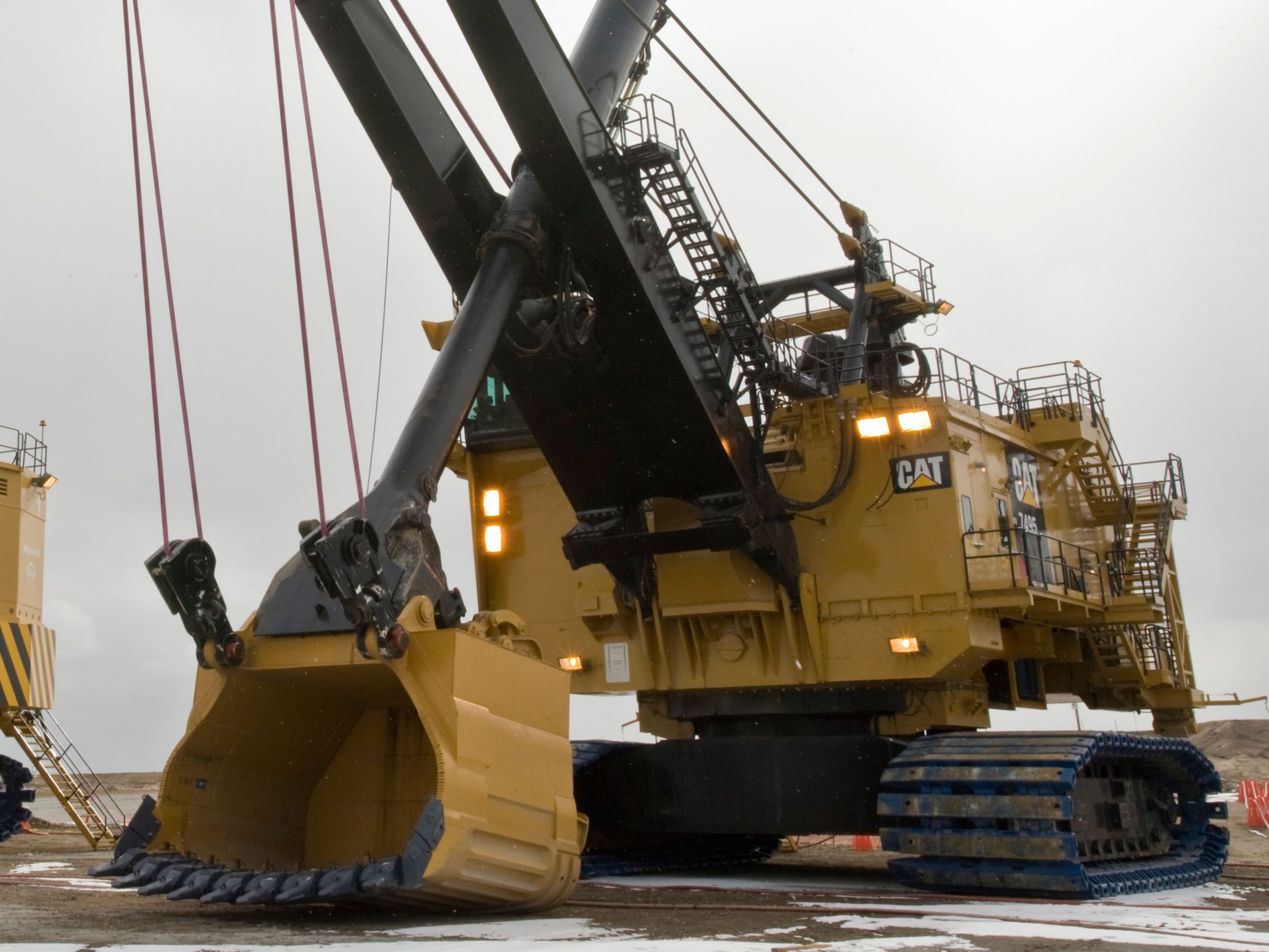

7495 HF Electric Rope Shovel

7495 HF Electric Rope Shovel

THE ULTIMATE IN EFFICIENCY AND RELIABILITY

More Comfort ‚Äď More Performance ‚Äď More Versatility

  • Reducing Environmental Impact

    Using power efficiently, producing zero direct carbon emissions and regenerating power back to the grid

  • Efficiency-Boosting Operator Assist Technology

    Reduces poor digging practices, enables consistent operator performance and provides equal or better cycle times

  • Leader in Reliability and Uptime

    With proven AC IGBT Electric Drive System that is streamlined, simple and easy to maintain

Dimensions

Dipper Capacity 30.6-62.7 m3 (40-82 yd3)
Dipper Payload 120 t
Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified) 120 t
Note Dependent on application and material density

Weights

Ballast - Furnished By Customer 667150 lb
Note (1) These weights will vary slightly depending upon dipper and optional equipment selection
Note (2) All specifications are based on a 45 m3 (59 yd3) dipper and standard 317.5 cm (125 in) crawlers.
Working Weight - With Dipper and Standard Links 3155000 lb

Main Structures

Crawler Dimensions - Overall Width 317.5 cm (125 in) Treads 41.67 in
Ground Bearing Pressure - Note Ground bearing pressure is dependent upon many factors
Ground Bearing Pressure - Total Effective Bearing Area (317.5 cm/125 in) Treads 57 m2 (247 kPa); 614 ft2 (36 psi)
Hoist A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.
Planetary Propel Dual-motor independent drive
Swing Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.
Upper Works Overall Width - Including Standard Walkways 41.99 in

Lube System

Components (1) Six pumps (four for open gear lubricant and two for grease) located in an insulated, heated, double-walled lube room
Components (2) External fast fill from lower level
Type Automatic, single-line system for open gear lubricant and grease

Electrical

Drive IGBT Acutrol drive system
Note Other voltage options available to suit customer requirements
Power Requirements - 50 Hz 6,000V, 6,600V, 7,200V, 11,000V
Power Requirements - 60 Hz 7,200V, 13,800V
Power Requirements - Average Power Demand 934-1308 kW
Power Requirements - Peak power 3737 kW
Power Requirements - Voltage 3 phase, 50/60 Hz, 7,200V
System Voltage - Nominal 50/60 Hz, 7,200V

Front End

Components One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
Crowd (1) Rope Crowd with crowd machinery located at the front center of the revolving frame, consisting of motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
Crowd (2) (Optional) HydraCrowd, hydraulic power skid, located at the front center of the revolving frame deck, powers a large hydraulic cylinder to move the dipper handle fore and aft.
Rope Data - Boom Suspension - Diameter 3.25 in
Rope Data - Boom Suspension - No. 4
Rope Data - Crowd - Diameter 2.5 in
Rope Data - Crowd - No. 1
Rope Data - Dipper Trip - Diameter 0.75 in
Rope Data - Dipper Trip - No. 1
Rope Data - Hoist - Diameter 2.75 in
Rope Data - Hoist - No. 2
Rope Data - Note High impact ropes available as an option
Rope Data - Retract - Diameter 2.5 in
Rope Data - Retract - No. 1

Dimensions - Working Ranges

Dipper Capacities 30.6-62.7 m3 (40-82 yd3)
Dipper Payload 120 ton (US)
Maximum Dumping Height 29.53 ft
Operating Weight 3155000 lb

Dimensions (Approximate) - Optimal Working Ranges*

Cutting Height - Maximum 55 ft
Cutting Radius - Maximum 79.72 ft
Dumping Height - With Clearance to Open Dipper Door 29.53 ft
Note (1) Optimal working ranges based on loading a Cat 797F truck.
Note (2) *All specifications are based on a 45 m3 (59 yd3) dipper and standard 317.5 cm (125 in) crawlers.
Radius of Level Floor 55.77 ft
Revolving Frame Tail Swing Radius 30.51 ft
