Engine
|
Emissions
|
U.S. EPA Tier 4 Final/EU Stage V/Japan 2014/Korea Stage V/China Nonroad Stage IV
|
|
Engine Model
|
Cat C9.3B
|
|
Net Power (Rated) - ISO 9249 (DIN)
|
268 mhp
|
|
Net Power - Rated - ISO 9249/SAE J1349
|
265 HP
|
|
Note (1)
|
Net power at 2,200 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.
|
|
Note (2)
|
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
|
|
Note (3)
|
Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document.
|
|
Note (4)
|
Machine Build Number 17A
|
|
Power - Net
|
265 HP
|
Weights
|
Note (1)
|
Standard SU operating weight includes ripper with three shanks adding approximately 2993 kg/6596 lbs. LGP S operating weight with drawbar.
|
|
Operating Weight
|
65644 lb
|
Transmission
|
Power Train
|

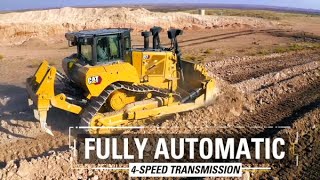

Fully Automatic 4-Speed
|
Service Refill Capacities
|
DEF Tank
|
12 gal (US)
|
|
Fuel Tank
|
123 gal (US)
|
Standard SU
|
Blade
|
Semi-Universal (SU)
|
|
Blade Capacity
|
10 yd³
|
|
Ground Pressure
|
10 psi
|
|
Operating Weight
|
65644 lb
|
|
Width of Standard Shoe
|
24 in
|
LGP S
|
Blade
|
Straight (S)
|
|
Blade Capacity
|
8 yd³
|
|
Ground Pressure
|
6 psi
|
|
Operating Weight
|
63220 lb
|
|
Width of Standard Shoe
|
36 in
|

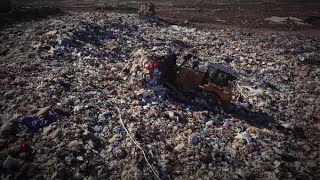

Waste Handler
|
Blade
|
Universal Landfill (U)
|
|
Blade Capacity
|
22 yd³
|
|
Ground Pressure
|
10 psi
|
|
Operating Weight
|
62035 lb
|
|
Width of Standard Shoe
|
24 in
|
Air Conditioning System
|
Air Conditioning
|
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes.
|
Specifications
|
Note (2)
|
Configurations and features may vary by region. Please consult your Cat dealer for availability in your area.
|
