Engine
|
Emissions
|
U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
|
|
Engine Model
|
Cat C9.3B
|
|
Net Power (Rated) - ISO 9249 (DIN)
|
219 mhp
|
|
Net Power - Rated - ISO 9249/SAE J1349
|
215 hp
|
|
Note (1)
|
Rated horsepower at 1,700 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.
|
|
Note (2)
|
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
|
|
Note (3)
|
Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document.
|
|
Note (4)
|
Machine Build Number 20B
|
|
Power - Net
|
215 hp
|
Weights
|
Operating Weight
|
51333 lb
|

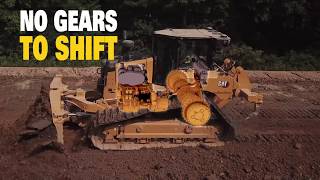

Transmission
|
Powertrain
|
Electric Drive
|
Service Refill Capacities
|
DEF Tank
|
7.4 gal (US)
|
|
Fuel Tank
|
90 gal (US)
|
D6 XE Push Arm
|
Blade
|
Semi-Universal (SU)
|
|
Blade Capacity
|
7.5 yd³
|
|
Ground Pressure
|
8 psi
|
|
Operating Weight
|
49388 lb
|
|
Width of Standard Shoe
|
24 in
|
D6 XE LGP (30-in) Push Arm
|
Blade
|
Semi-Universal (SU)
|
|
Blade Capacity
|
7.6 yd³
|
|
Ground Pressure
|
6.6 psi
|
|
Operating Weight
|
51020 lb
|
|
Width of Standard Shoe
|
30 in
|
D6 XE LGP (36-in) Push Arm
|
Blade
|
Straight
|
|
Blade Capacity
|
5 yd³
|
|
Ground Pressure
|
5.3 psi
|
|
Operating Weight
|
53315 lb
|
|
Width of Standard Shoe
|
36 in
|
D6 XE VPAT
|
Blade
|
VPAT
|
|
Blade Capacity
|
5.4 yd³
|
|
Ground Pressure
|
7.2 psi
|
|
Operating Weight
|
49708 lb
|
|
Width of Standard Shoe
|
24 in
|
D6 XE LGP (30-in) VPAT
|
Blade
|
VPAT
|
|
Blade Capacity
|
5.9 yd³
|
|
Ground Pressure
|
5.9 psi
|
|
Operating Weight
|
51333 lb
|
|
Width of Standard Shoe
|
30 in
|
D6 XE LGP (36-in) VPAT
|
Blade
|
VPAT
|
|
Blade Capacity
|
6.5 yd³
|
|
Ground Pressure
|
5.1 psi
|
|
Operating Weight
|
52512 lb
|
|
Width of Standard Shoe
|
36 in
|
Air Conditioning System
|
Air Conditioning
|
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes.
|
