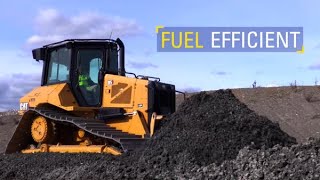

Get a quoteD5 Dozer
PERFORMANCE AND TECHNOLOGY
More Comfort – More Performance – More Versatility
-
Best-in-Class Performance
Nimble, responsive and maneuverable with a fully automatic transmission for seamless acceleration, fast cycle times and long-term durability. Cab sets the standard for visibility, comfort, productivity.
-
Up To 50% More Productivity with Cat Technology
Grade and Assist technology features help boost productivity and ease of operation for operators of varied skill levels.
-
More Power to Work
Goes beyond D6N with more power and added performance to get the job done. Stronger structures offer more durability and uptime, while a purpose-built push arm dozer helps you take on heavier work.
Engine
| Emissions | U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Stage V |
| Engine Model | Cat C7.1 |
| Net Power (Rated) - ISO 9249 (DIN) | 172 mhp |
| Net Power - Rated - ISO 9249/SAE J1349 | 170 hp |
| Note (1) | Rated horsepower at 1770 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel. |
| Note (3) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. |
| Note (4) | Machine Build Number 17B |
| Power - Net | 170 hp |
Weights
| Operating Weight | 42263 lb |
Transmission
| Powertrain | Fully Automatic 3-Speed |
Service Refill Capacities
| DEF Tank | 4.2 gal (US) |
| Fuel Tank | 83.2 gal (US) |
VPAT
| Blade | VPAT |
| Blade Capacity | 4.6 ydÂł |
| Ground Pressure | 6.9 psi |
| Operating Weight | 37875 lb |
| Width of Standard Shoe | 24 in |
LGP VPAT
| Blade | LGP VPAT |
| Blade Capacity | 5.5 ydÂł |
| Ground Pressure | 4.7 psi |
| Operating Weight | 42263 lb |
| Width of Standard Shoe | 33 in |
Fine Grading VPAT
| Blade | VPAT |
| Blade Capacity | 4.6 ydÂł |
| Ground Pressure | 6 psi |
| Operating Weight | 39198 lb |
| Width of Standard Shoe | 24 in |
Push Arm
| Blade | Semi-Universal (SU) |
| Blade Capacity | 5.6 ydÂł |
| Ground Pressure | 7 psi |
| Operating Weight | 38228 lb |
| Width of Standard Shoe | 24 in |
Sustainability
| Recyclability | 97% |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. |
Specifications
| Note (1) | Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. |
