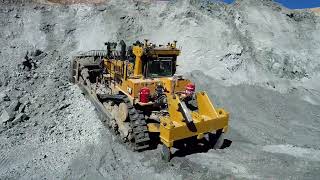

D10 Dozer

D10 Dozer

Innovation on Track

More Comfort ā€“ More Performance ā€“ More Versatility

  • Up to 6% More Efficient & 4% Less Fuel Consumption

    With stator clutch torque converter, single plane cooling and load-sensing hydraulics

  • Infused with Proven Technologies

    Improved operator interface, AutoCarryā„¢ and AutoRip, remote-control-ready and updated electronic architecture

  • Up to 8% Reduction in Maintenance & Repair

    Less downtime and reduced costs thanks to longer component life and improved serviceability

Engine - U.S. EPA Tier 4 Final/EU Stage V

Bore 5.4 in
Displacement 1648 inĀ³
Emissions U.S. EPA Tier 4 Final/EU Stage V
Engine Model CatĀ® C27
Engine Power - Gross SAE J1995* - Forward 631 HP
Engine Power - Gross SAE J1995* - Reverse 766 HP
Engine Power - ISO 14396* - Forward 620 HP
Engine Power - ISO 14396* - Reverse 754 HP
Engine Power - Net SAE J1349/ISO 9249** - Forward 602 HP
Engine Power - Net SAE J1349/ISO 9249** - Reverse 722 HP
Note (1) *Excludes all fan losses.
Note (2) All Engine ratings apply at 1,800 rpm.
Note (3) Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft).
Note (4) Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft).
Note (5) **Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, andĀ engineĀ emissions controls as required at 25Ā° C ambient temperature.
Stroke 6 in

Engine - U.S. EPA Tier 2 Equivalent

Bore 5.4 in
Displacement 1648 inĀ³
Emissions U.S. EPA Tier 2 Equivalent
Engine Model CatĀ® C27
Engine Power - Gross SAE J1995* - Forward 631 HP
Engine Power - Gross SAE J1995* - Reverse 766 HP
Engine Power - ISO 14396* - Forward 622 HP
Engine Power - ISO 14396* - Reverse 756 HP
Engine Power - Net SAE J1349/ISO 9249** - Forward 603 HP
Engine Power - Net SAE J1349/ISO 9249** - Reverse 722 HP
Note (1) *Excludes all fan losses.
Note (2) All Engine ratings apply at 1,800 rpm.
Note (3) Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft).
Note (4) Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft).
Note (5) **Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, andĀ engineĀ emissions controls as required at 25Ā° C ambient temperature.
Stroke 6 in

Fuel Tank Capacities

Fuel Tank - Total Volume 335.2 gal (US)
Fuel Tank - Usable Volume 323.3 gal (US)

FLUID CAPACITIES

Cooling System Refill ā€“ Tier 4 Final Engine 46.2 gal (US)
Engine Crankcase Sump 27.2 gal (US)
Final Drives (each) 12.2 gal (US)
Hydraulic System Tank 32.2 gal (US)
Pivot Shaft Oil 9.5 gal (US)
Power Train - Refill Volume 74.8 gal (US)
Power Train - Total Volume 81.4 gal (US)
Track Roller Frames (each) 16.9 gal (US)

Weights

Note (1) D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator.
Note (2) D10 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm (24 in) ES shoes.
Operating Weight 154888 lb
Shipping Weight 111739 lb

Hydraulic Controls

Cylinder Sizing - Blade Lift - Bore 5.5 in
Cylinder Sizing - Blade Lift - Stroke 65.1 in
Cylinder Sizing - Blade Tilt - Bore 8.3 in
Cylinder Sizing - Blade Tilt - Stroke 9.5 in
Cylinder Sizing - Ripper Shank Angle - Bore 7.1 in
Cylinder Sizing - Ripper Shank Angle - Stroke 26 in
Cylinder Sizing - Ripper Shank Lift - Bore 8.3 in
Cylinder Sizing - Ripper Shank Lift - Stroke 21.1 in
Fan Pump 21.7 gal/min
Lift Cylinder Relief Valve Setting 4061.1 psi
Note (1) Implement Pump output measured are 2,010 engine rpm and 7000 kPa (1,015 psi).
Note (2) Fan Pump output measured at 2,010 engine rpm and 26 000 kPa (3,771 psi).
Note (3) Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
Pump Output - Implement 112 gal/min
Pump Type Variable displacement piston
Ripper - Lift - Relief Valve Setting 4061.1 psi
Ripper - Pitch - Relief Valve Setting 4061.1 psi
Tank Capacity 32.2 gal (US)
Tilt Cylinder Flow - Head End Flow 63.4 gal/min
Tilt Cylinder Flow - Rod End Flow 112 gal/min
Tilt Cylinder Relief Valve Setting 3872.5 psi

Undercarriage

Ground Clearance 28.5 in
Ground Contact Area 7347 inĀ²
Grouser Height 3.7 in
Length - Track on Ground 152.8 in
Number of Carrier Rollers 1 per side (optional)
Pitch 10.2 in
Shoe Type Extreme Service (ES)
Shoes/Side 44
Track Gauge 100.4 in
Track Rollers/Side 8
Width - Shoe 24 in

Steering and Brakes

Brake Count 10
Brake Diameter 15.4 in
Brake Type Spring Applied Multiple- Disc Brake
Steering Type Hydraulically Applied Multiple-Disc Steering Clutch

Air Conditioning System

Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.600 metric tonnes.

Standards

FOPS Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
Note The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (1) The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (2) The sound levels listed above include both measurement uncertainty and uncertainty due to production variation.
Note (3) The available sound suppression package can reduce the dynamic exterior sound power level of the machine by up to 4 db(A) and the dynamic operator sound pressure level by up to 2 db(A).
ROPS Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.
Sound Operator Sound Pressure Level (ISO 6396:2008): 78 db(A)
Sound (1) Exterior Sound Pressure Level (ISO 6395:2008): 116 db(A)

Transmission

1.0 Forward 2.5 mile/h
1.0 Reverse 3.2 mile/h
1.5 Forward 3.4 mile/h
1.5 Reverse 4.2 mile/h
2.0 Forward 4.5 mile/h
2.0 Reverse 5.6 mile/h
2.5 Forward 6 mile/h
2.5 Reverse 7.5 mile/h
3.0 Forward 7.8 mile/h
3.0 Reverse 9.8 mile/h
Transmission Clutch Diameter 17 in
Type Planetary powershift

Dimensions (Approximate)

Ground Clearance* 28.5 in
Height - FOPS Cab* 162.8 in
Height - ROPS/Canopy* 173.5 in
Height - Top of Stack* 171.5 in
Length - Track on Ground 152.8 in
Length - With Multi-Shank Ripper 285.1 in
Length - With SU-Blade 292 in
Length - With Single-Shank Ripper 278.8 in
Length - With U-Blade 305.1 in
Note (1) *Includes grouser height for total dimensions on hard surfaces.
Overall Length - Basic Tractor 209.6 in
Overall Length - SU-Blade/SS Ripper 360.6 in
Track Gauge 100.4 in
Width - Over Trunnions 148 in
Width - Without Trunnions - 610 mm/24 in ES 130.4 in

Blades

10SU ABR - Capacity (SAE J1265) 24.2 ydĀ³
10SU ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread) 30.08 inĀ³
10SU ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry) 19.98 in
10SU ABR - Digging Depth - Blade Pitch: Nominal 25.23 in
10SU ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread) 53.86 in
10SU ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry) 66.14 in
10SU ABR - Ground Clearance - Maximum Tilt LH 56.3 in
10SU ABR - Ground Clearance - Maximum Tilt RH 56.3 in
10SU ABR - Height 83.5 in
10SU ABR - Width (over end bits) 194.5 in
10U ABR - Capacity (SAE J1265) 28.7 ydĀ³
10U ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread) 30.1 in
10U ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry) 19.98 in
10U ABR - Digging Depth - Blade Pitch: Nominal 60 in
10U ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread) 53.9 in
10U ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry) 66.1 in
10U ABR - Ground Clearance - Maximum Tilt LH 60.8 in
10U ABR - Ground Clearance - Maximum Tilt RH 60.8 in
10U ABR - Height 83.5 in
10U ABR - Weights - Blade Weight* 23585 lb
10U ABR - Weights - Total Operating Weight** (with blade and SS ripper) 154888 lb
10U ABR - Width (over end bits) 207.1 in
Note (1) Maximum LH and RH tilt for 10SU ABR and 10U ABR blades: 17.31 degrees
Note (2) *Does not include hydraulic controls but includes blade cylinders, pusharms.
Note (3) **D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator.

Ripper - Single Shank

Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole 36 in
Maximum penetration depth (standard tip) 59.2 in
Maximum penetration force * (shank vertical) 49233 lbf
Note Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank.
Weight 14209 lb

Ripper - Single Shank, Deep Ripping

Maximum penetration depth (standard tip) 78.3 in
Maximum penetration force * (shank vertical) 53055 lbf
Note Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank.
Weight 14548 lb
