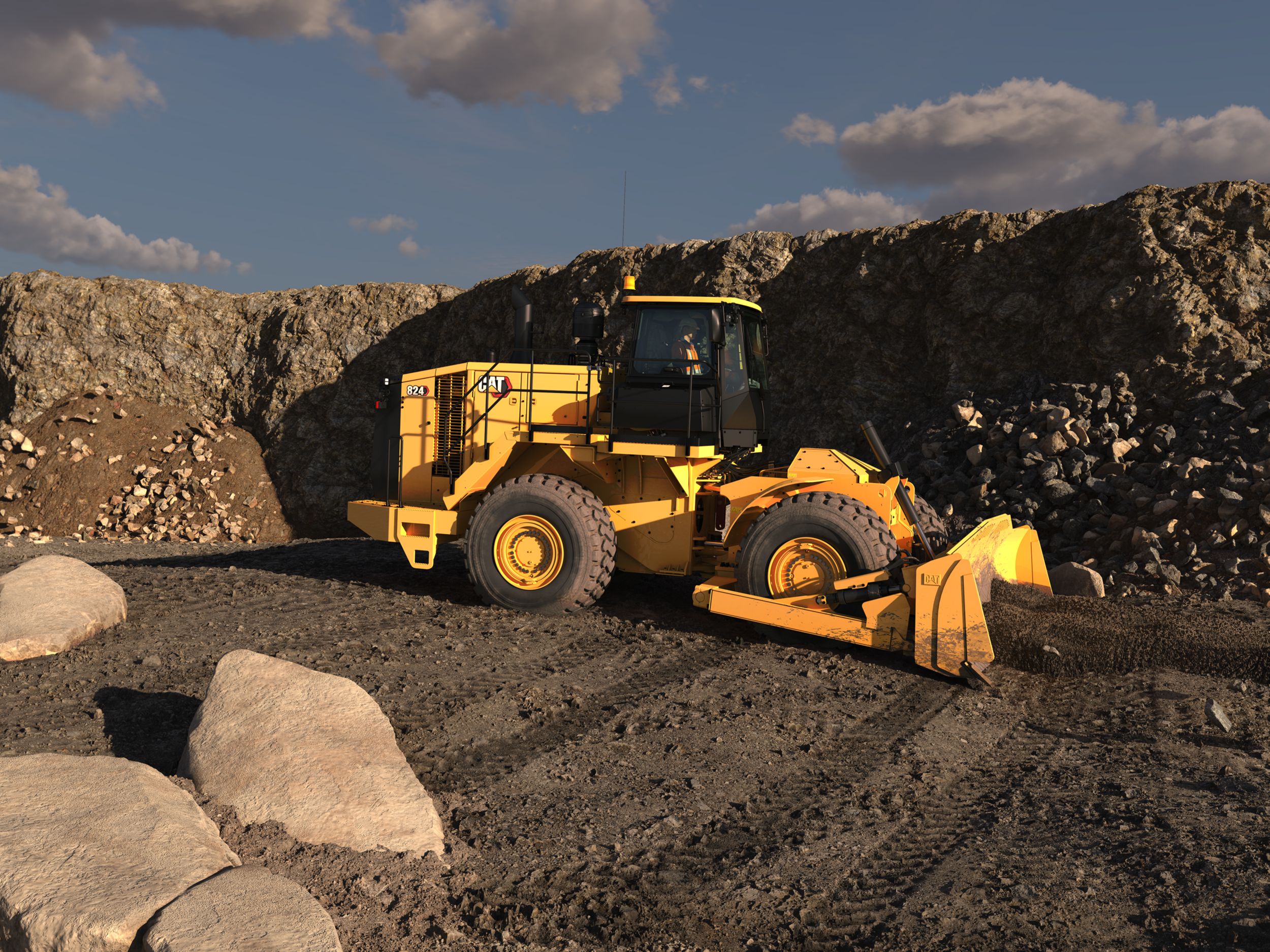

MOBILE. AGILE. VERSATILE.
More Comfort – More Performance – More Versatility
-
IMPROVED MAINTENANCE
Make regular maintenance more convenient with accessible controls located inside the cab.
-
ADDITIONAL SAFETY
Grouped ground level engine and machine controls allow for safe and easy daily maintenance.
-
ENHANCED OPERATOR COMFORT
Comfortable cab and low effort controls with reduced vibration levels help operators work more productively throughout the day.
Engine
| Bore | 5.4 in |
| Displacement | 927.6 inÂł |
| Engine Model | Cat® C15 |
| Engine Power - ISO 14396:2002 | 426 hp |
| Gross Power - SAE J1995:2014 | 434 hp |
| High Idle Speed | 2300 r/min |
| Low Idle Speed | 800 r/min |
| Maximum Altitude without Derating (U.S. EPA Tier 3/EU Stage IIIA) | 9098 ft |
| Maximum Altitude without Derating (U.S. EPA Tier 4 Final/EU Stage V) | 9298 ft |
| Net Power - ISO 9249:2007 | 405 hp |
| Net Power - SAE J1349:2011 | 405 hp |
| Note (1) | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Note (2) | Two engine emission configurations are available. One meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emissions standards. The other meets Brazil MAR-1 emission standards, emitting equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Peak Net Torque (1,300 rpm) | 1479 lbf·ft |
| Rated Speed | 1800 r/min |
| Stroke | 6.7 in |
| Torque Rise | 33% |
Operating Specifications
| Blade Capacity Range | 5.1-16.2 m3 (6.6-21.2 yd3) |
| Operating Weight – Straight Blade (Tier 4 Final/Stage V) | 74966 lb |
Transmission
| Forward - 1 | 3.8 mile/h |
| Forward - 2 | 6.9 mile/h |
| Forward - 3 | 12.2 mile/h |
| Forward - 4 | 21.6 mile/h |
| Reverse - 1 | 4.3 mile/h |
| Reverse - 2 | 7.8 mile/h |
| Reverse - 3 | 13.9 mile/h |
| Reverse - 4 | 24.7 mile/h |
| Transmission Type | Cat planetary - powershift - ECPC |
Hydraulic System - Lift/Tilt
| Cylinder, Double Acting - Tilt and Tip, Bore and Stroke | 140 mm Ă— 230 mm (5.5 in Ă— 9.1 in) |
| Cylinders, Double Acting - Lift, Bore and Stroke | 120 mm Ă— 1070 mm (4.7 in Ă— 42.1 in) |
| Main Relief Pressure | 3771 psi |
| Maximum Supply Pressure | 3495 psi |
| Pump Flow at 1,800 rpm | 30.9 gal/min |
Hydraulic System - Steering
| Bore | 4.5 in |
| Max Flow at 1,800 rpm | 44.9 gal/min |
| Relief Valve Setting - Steering | 3481 psi |
| Steering System - Circuit | Pilot operated, load sensing |
| Steering System - Pump | Variable displacement piston |
| Stroke | 22.7 in |
| Vehicle Articulation Angle | 86° |
Service Refill Capacities
| Cooling System | 30.6 gal (US) |
| Diesel Exhaust Fluid Tank (For Tier 4 Final/Stage V Only) | 8.5 gal (US) |
| Differential - Final Drives - Front | 26.4 gal (US) |
| Differential - Final Drives - Rear | 29.1 gal (US) |
| Engine Crankcase | 9 gal (US) |
| Fuel Tank | 206.6 gal (US) |
| Hydraulic System - Implement/Steering | 56.5 gal (US) |
| Hydraulic Tank Only | 35.4 gal (US) |
| Note (1) | All nonroad Tier 4 Final, EU Stage V, and Japan 2014 (Tier 4 Final) diesel engines are required to use: – Ultra low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. – Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases***: • Up to B20 biodiesel (FAME)** • Up to 100% HVO and GTL renewable fuels – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. * Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with aftertreatment devices can use up to B20. Engines with no aftertreatment devices can use higher blends, up to B100. *** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
| Transmission | 17.4 gal (US) |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 2.0 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes (3.15 tons). |
Axles
| Front | Planetary – Fixed |
| Oscillation Angle | ±11° |
| Rear | Planetary – Oscillating |
Braking System
| Brakes | Multi-disc wet (enclosed) 4 WHL |
| Parking Brake | Drum and shoe, spring applied, hydraulic released |
Sound Performance - Tier 4 Final / Stage V
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 110 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC.” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
Sound Performance - Tier 3 / Stage IIIA
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 110 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC.” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
Dimensions (Approximate)
| Centerline of Front Axle to Hitch | 6.1 ft |
| Centerline of Rear Axle to Edge of Bumper | 9.3 ft |
| Ground Clearance | 1.8 ft |
| Ground Clearance - Bumper | 2.8 ft |
| Ground Clearance to Trunnion | 1.45 ft |
| Height - Top of Cab | 13.5 ft |
| Height - Top of Exhaust Stack | 14.2 ft |
| Height - Top of Hood | 10.5 ft |
| Height to Top of Beacon | 14.5 ft |
| Length - With Blade on Ground - Straight Blade | 27.6 ft |
| Wheel Base | 12.1 ft |
| Width Over Guardrails | 10.94 ft |
Straight Blade
| Capacity | 6.6 ydÂł |
| Dig Depth | 17.6 in |
| Ground Clearance | 41.6 in |
| Height | 48.4 in |
| Maximum Tilt | 45.9 in |
| Turning Radius – Inside Corner of Blade | 10.15 ft |
| Turning Radius – Outside Corner of Blade | 23.7 ft |
| Width Over End Bits | 177.4 in |
Straight Push Plate Blade
| Capacity | 6.6 ydÂł |
| Dig Depth | 17.6 in |
| Ground Clearance | 41.6 in |
| Height | 48.4 in |
| Maximum Tilt | 45.9 in |
| Turning Radius – Inside Corner of Blade | 10.2 in³ |
| Turning Radius – Outside Corner of Blade | 23.2 ft |
| Width Over End Bits | 177.4 in |
Semi-Universal Blade
| Capacity | 10 ydÂł |
| Dig Depth | 18.8 in |
| Ground Clearance | 42 in |
| Height | 61.1 in |
| Maximum Tilt | 44.1 in |
| Turning Radius – Inside Corner of Blade | 10.8 ft |
| Turning Radius – Outside Corner of Blade | 23.8 ft |
| Width Over End Bits | 174.1 in |
Universal Blade
| Capacity | 10 ydÂł |
| Dig Depth | 18.1 in |
| Ground Clearance | 41.4 in |
| Height | 53.1 in |
| Maximum Tilt | 44.6 in |
| Turning Radius – Inside Corner of Blade | 11.3 ft |
| Turning Radius – Outside Corner of Blade | 23.9 ft |
| Width Over End Bits | 171.3 in |
Coal Blade
| Capacity | 21.2 ydÂł |
| Dig Depth | 18.6 in |
| Ground Clearance | 42.2 in |
| Height | 68.7 in |
| Maximum Tilt | 48.9 in |
| Turning Radius – Inside Corner of Blade | 11.4 ft |
| Turning Radius – Outside Corner of Blade | 24.9 ft |
| Width Over End Bits | 189 in |
Extended Wear Blade
| Capacity | 10.6 ydÂł |
| Dig Depth | 18.1 in |
| Ground Clearance | 41.4 in |
| Height | 53.1 in |
| Maximum Tilt | 44.6 in |
| Turning Radius – Inside Corner of Blade | 11.4 ft |
| Turning Radius – Outside Corner of Blade | 23.9 ft |
| Width Over End Bits | 171.6 in |

Get info about our financing options
Get The best solution for your job site needs
Let us help.
Engine
| Bore | 5.4 in |
| Displacement | 927.6 inÂł |
| Engine Model | Cat® C15 |
| Engine Power - ISO 14396:2002 | 426 hp |
| Gross Power - SAE J1995:2014 | 434 hp |
| High Idle Speed | 2300 r/min |
| Low Idle Speed | 800 r/min |
| Maximum Altitude without Derating (U.S. EPA Tier 3/EU Stage IIIA) | 9098 ft |
| Maximum Altitude without Derating (U.S. EPA Tier 4 Final/EU Stage V) | 9298 ft |
| Net Power - ISO 9249:2007 | 405 hp |
| Net Power - SAE J1349:2011 | 405 hp |
| Note (1) | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Note (2) | Two engine emission configurations are available. One meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emissions standards. The other meets Brazil MAR-1 emission standards, emitting equivalent to U.S. EPA Tier 3 and EU Stage IIIA. |
| Peak Net Torque (1,300 rpm) | 1479 lbf·ft |
| Rated Speed | 1800 r/min |
| Stroke | 6.7 in |
| Torque Rise | 33% |
Operating Specifications
| Blade Capacity Range | 5.1-16.2 m3 (6.6-21.2 yd3) |
| Operating Weight – Straight Blade (Tier 4 Final/Stage V) | 74966 lb |
Transmission
| Forward - 1 | 3.8 mile/h |
| Forward - 2 | 6.9 mile/h |
| Forward - 3 | 12.2 mile/h |
| Forward - 4 | 21.6 mile/h |
| Reverse - 1 | 4.3 mile/h |
| Reverse - 2 | 7.8 mile/h |
| Reverse - 3 | 13.9 mile/h |
| Reverse - 4 | 24.7 mile/h |
| Transmission Type | Cat planetary - powershift - ECPC |
Hydraulic System - Lift/Tilt
| Cylinder, Double Acting - Tilt and Tip, Bore and Stroke | 140 mm Ă— 230 mm (5.5 in Ă— 9.1 in) |
| Cylinders, Double Acting - Lift, Bore and Stroke | 120 mm Ă— 1070 mm (4.7 in Ă— 42.1 in) |
| Main Relief Pressure | 3771 psi |
| Maximum Supply Pressure | 3495 psi |
| Pump Flow at 1,800 rpm | 30.9 gal/min |
Hydraulic System - Steering
| Bore | 4.5 in |
| Max Flow at 1,800 rpm | 44.9 gal/min |
| Relief Valve Setting - Steering | 3481 psi |
| Steering System - Circuit | Pilot operated, load sensing |
| Steering System - Pump | Variable displacement piston |
| Stroke | 22.7 in |
| Vehicle Articulation Angle | 86° |
Service Refill Capacities
| Cooling System | 30.6 gal (US) |
| Diesel Exhaust Fluid Tank (For Tier 4 Final/Stage V Only) | 8.5 gal (US) |
| Differential - Final Drives - Front | 26.4 gal (US) |
| Differential - Final Drives - Rear | 29.1 gal (US) |
| Engine Crankcase | 9 gal (US) |
| Fuel Tank | 206.6 gal (US) |
| Hydraulic System - Implement/Steering | 56.5 gal (US) |
| Hydraulic Tank Only | 35.4 gal (US) |
| Note (1) | All nonroad Tier 4 Final, EU Stage V, and Japan 2014 (Tier 4 Final) diesel engines are required to use: – Ultra low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. – Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases***: • Up to B20 biodiesel (FAME)** • Up to 100% HVO and GTL renewable fuels – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. * Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with aftertreatment devices can use up to B20. Engines with no aftertreatment devices can use higher blends, up to B100. *** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
| Transmission | 17.4 gal (US) |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 2.0 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes (3.15 tons). |
Axles
| Front | Planetary – Fixed |
| Oscillation Angle | ±11° |
| Rear | Planetary – Oscillating |
Braking System
| Brakes | Multi-disc wet (enclosed) 4 WHL |
| Parking Brake | Drum and shoe, spring applied, hydraulic released |
Sound Performance - Tier 4 Final / Stage V
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 110 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC.” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
Sound Performance - Tier 3 / Stage IIIA
| Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) |
| Machine Sound Power Level (ISO 6395:2008)** | 110 dB(A) |
| Note (1) | * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives” |
| Note (2) | ** European Union Directive “2000/14/EC” as amended by “2005/88/EC.” and UK Noise Regulation 2001 No. 1701 |
| Note (3) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (4) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |
| Note (5) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
| Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) |
| Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) |
Dimensions (Approximate)
| Centerline of Front Axle to Hitch | 6.1 ft |
| Centerline of Rear Axle to Edge of Bumper | 9.3 ft |
| Ground Clearance | 1.8 ft |
| Ground Clearance - Bumper | 2.8 ft |
| Ground Clearance to Trunnion | 1.45 ft |
| Height - Top of Cab | 13.5 ft |
| Height - Top of Exhaust Stack | 14.2 ft |
| Height - Top of Hood | 10.5 ft |
| Height to Top of Beacon | 14.5 ft |
| Length - With Blade on Ground - Straight Blade | 27.6 ft |
| Wheel Base | 12.1 ft |
| Width Over Guardrails | 10.94 ft |
Straight Blade
| Capacity | 6.6 ydÂł |
| Dig Depth | 17.6 in |
| Ground Clearance | 41.6 in |
| Height | 48.4 in |
| Maximum Tilt | 45.9 in |
| Turning Radius – Inside Corner of Blade | 10.15 ft |
| Turning Radius – Outside Corner of Blade | 23.7 ft |
| Width Over End Bits | 177.4 in |
Straight Push Plate Blade
| Capacity | 6.6 ydÂł |
| Dig Depth | 17.6 in |
| Ground Clearance | 41.6 in |
| Height | 48.4 in |
| Maximum Tilt | 45.9 in |
| Turning Radius – Inside Corner of Blade | 10.2 in³ |
| Turning Radius – Outside Corner of Blade | 23.2 ft |
| Width Over End Bits | 177.4 in |
Semi-Universal Blade
| Capacity | 10 ydÂł |
| Dig Depth | 18.8 in |
| Ground Clearance | 42 in |
| Height | 61.1 in |
| Maximum Tilt | 44.1 in |
| Turning Radius – Inside Corner of Blade | 10.8 ft |
| Turning Radius – Outside Corner of Blade | 23.8 ft |
| Width Over End Bits | 174.1 in |
Universal Blade
| Capacity | 10 ydÂł |
| Dig Depth | 18.1 in |
| Ground Clearance | 41.4 in |
| Height | 53.1 in |
| Maximum Tilt | 44.6 in |
| Turning Radius – Inside Corner of Blade | 11.3 ft |
| Turning Radius – Outside Corner of Blade | 23.9 ft |
| Width Over End Bits | 171.3 in |
Coal Blade
| Capacity | 21.2 ydÂł |
| Dig Depth | 18.6 in |
| Ground Clearance | 42.2 in |
| Height | 68.7 in |
| Maximum Tilt | 48.9 in |
| Turning Radius – Inside Corner of Blade | 11.4 ft |
| Turning Radius – Outside Corner of Blade | 24.9 ft |
| Width Over End Bits | 189 in |
Extended Wear Blade
| Capacity | 10.6 ydÂł |
| Dig Depth | 18.1 in |
| Ground Clearance | 41.4 in |
| Height | 53.1 in |
| Maximum Tilt | 44.6 in |
| Turning Radius – Inside Corner of Blade | 11.4 ft |
| Turning Radius – Outside Corner of Blade | 23.9 ft |
| Width Over End Bits | 171.6 in |
