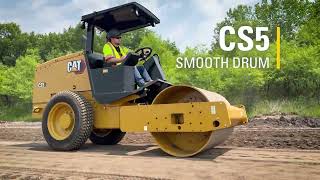

CS5 Vibratory Soil Compactor

CS5 Vibratory Soil Compactor

Operate with Precision

Get a quote

Engine

Bore 3.9 in
Emissions U.S. EPA Tier 4 Final
Engine Model Cat® C3.4B
Engine Power - ISO 14396 74.4 HP
Gross Power 74.6 HP
Net Power - ISO 9249 68.3 HP
Net Power - SAE J1349 67.5 HP
Note (1) Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Stroke 4.3 in

Weights

Note (1) Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator.
Operating Weight - With ROPS/FOPS Canopy 9800 lb
Weight - Drum with ROPS/FOPS Canopy 4497 lb

Vibratory System

Centrifugal Force - Maximum 17535 lb
Nominal Amplitude - High 0.051 in
Static Linear Load - With ROPS/FOPS Canopy 90.2 lb/in

Dimensions

Compaction Width 50 in
Drum Diameter 40 in
Maximum Height 8.3 ft
Overall Length 13.6 ft
Overall Width 4.6 ft
Wheel Base 7.3 ft

Operating Specifications

Curb Clearance 13.5 in
Ground Clearance 13.7 in
Travel Speed - Maximum 5.5 mile/h
Turning Radius - Inside Drum Edge 8.6 ft

Service Refill Capacities

Axle and Final Drives 1.9 gal (US)
Cooling System 4.8 gal (US)
Eccentric Weight Housings (combined) 14 gal (US)
Engine Oil - With Filter 2.4 gal (US)
Fuel Tank Capacity 29.9 gal (US)
Hydraulic Tank 10.6 gal (US)

Sustainability

Recyclability 97%
