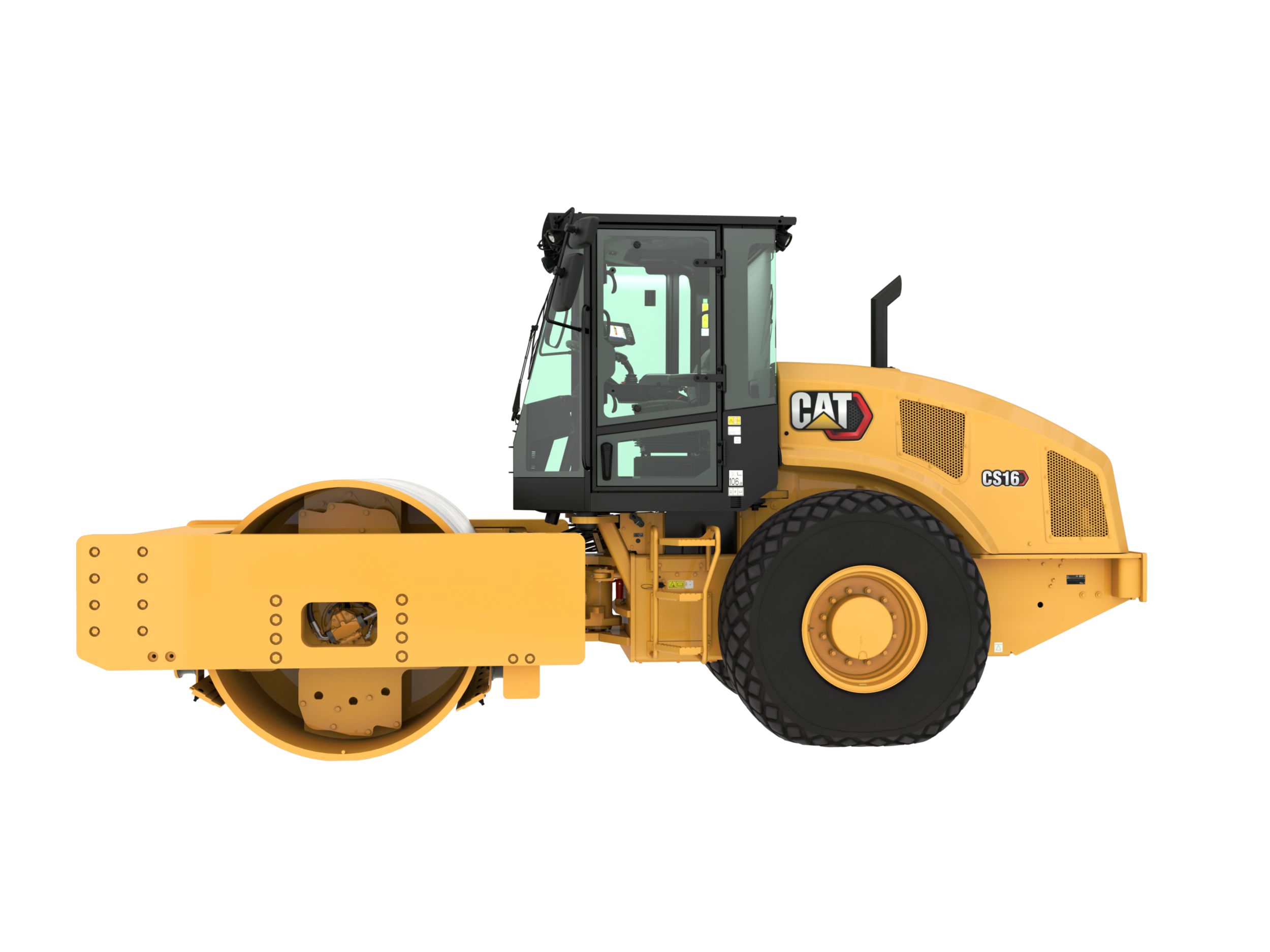

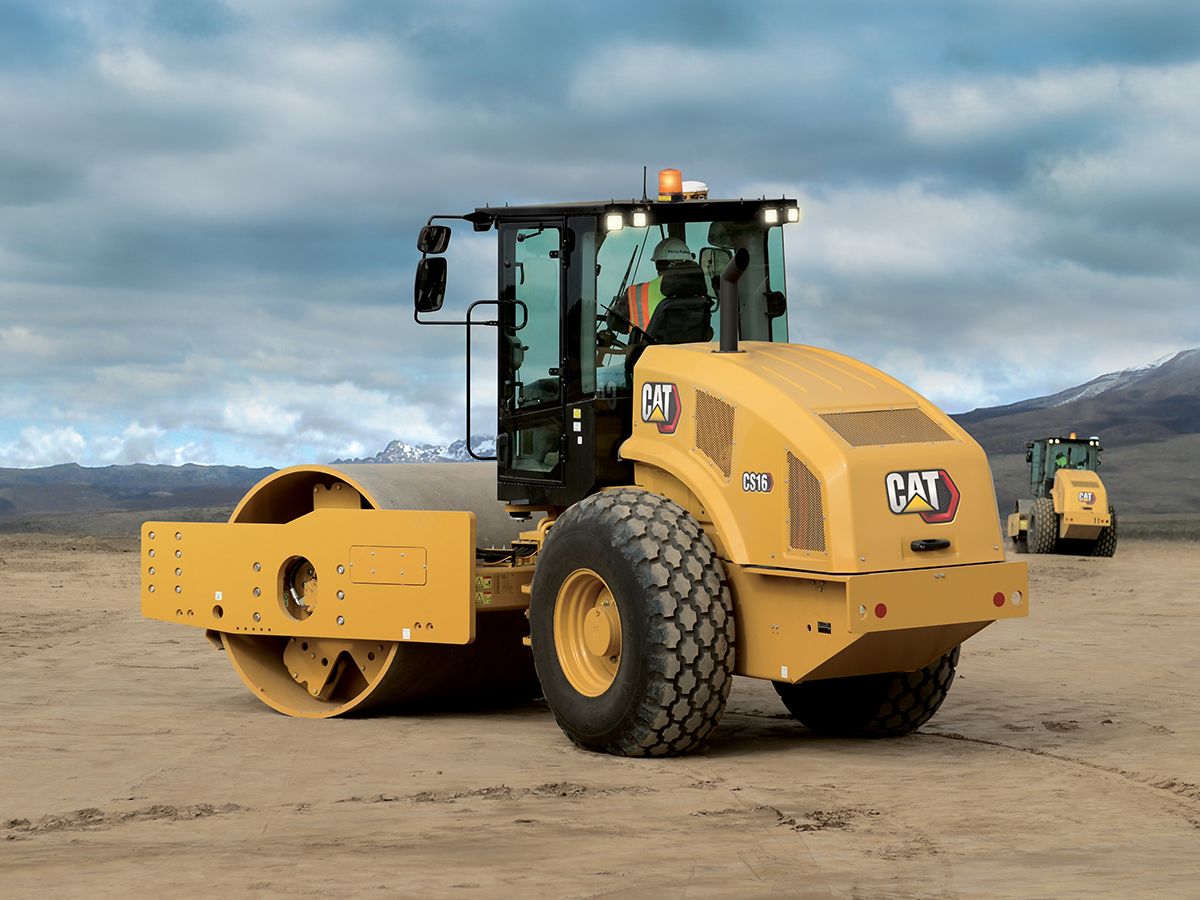

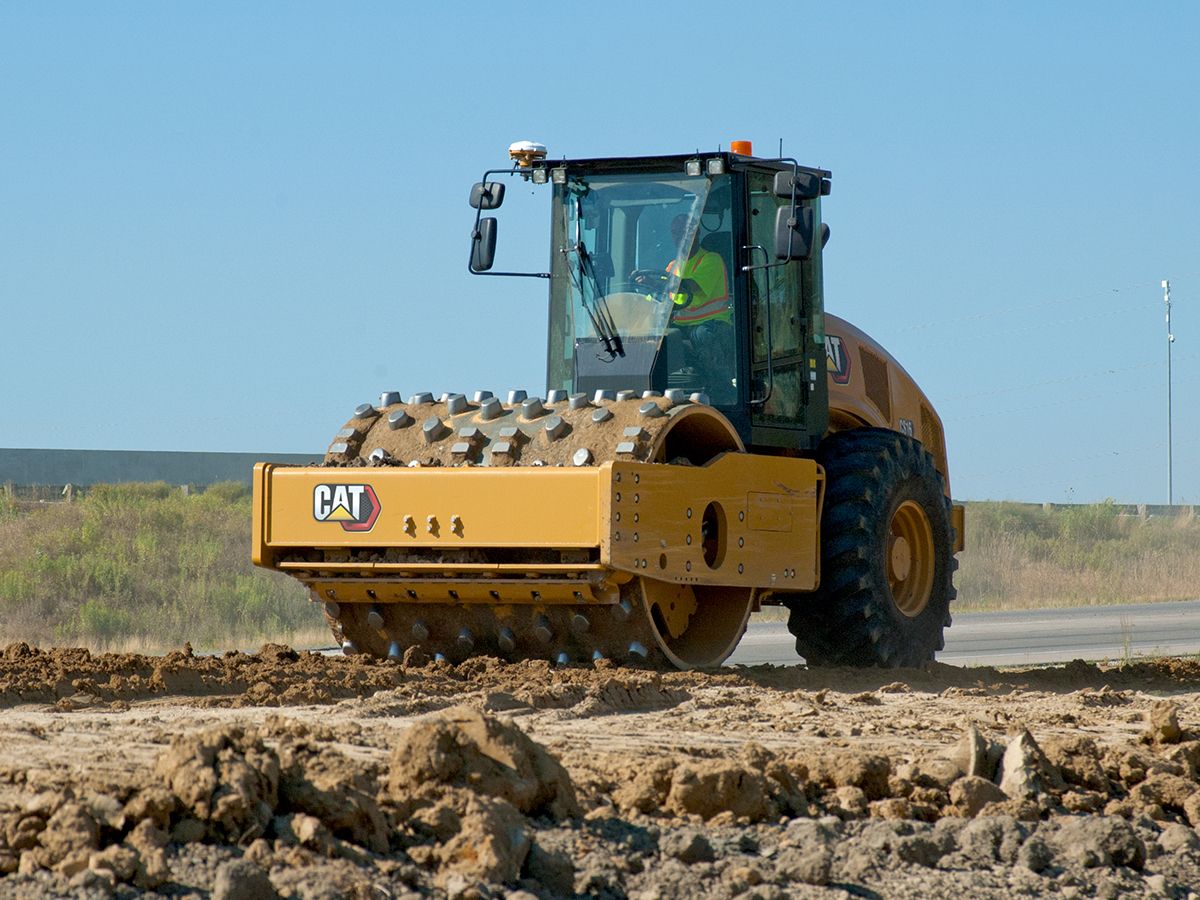

CS16 Vibratory Soil Compactor

CS16 Vibratory Soil Compactor

Efficient and Consistent Compaction

Get a quote

More Comfort – More Performance – More Versatility

  • Low Operating Costs

    Eco-Mode, no-maintenance hitch with sealed-for-life bearings and extended service intervals help keep your operating and maintenance costs low.

  • Increase Efficiency with Compaction Technology

    On-board compaction measurement technology indicates when specifications are met helping to eliminate guesswork, reduce unnecessary passes and minimize rework.

  • Exceptional Visibility and Comfort

    A rear vision camera enhances visibility around the machine and a pivoting seat with integrated controls and tiltable steering console provide an ergonomic work environment.

Engine

Bore 4.1 in
Emissions U.S. EPA Tier 4 Final
Engine Model Cat® C4.4
Engine Power - ISO 14396 173.5 HP
Gross Power 175.7 HP
Net Power - ISO 9249 147.1 HP
Net Power - SAE J1349 145.2 HP
Note (1) Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Stroke 5 in

Weights

Note (1) Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.
Operating Weight - With Cab 35589 lb
Weight - Drum with Cab 23241 lb

Vibratory System

Centrifugal Force - Maximum 75234 lb
Centrifugal Force - Minimum 35163 lb
Nominal Amplitude - High 0.083 in
Nominal Amplitude - Low 0.039 in
Static Linear Load - With Cab 276.6 lb/in
Variable Frequency Option Range 23.3 - 28 Hz (1400-1680 vpm)
Vibratory Frequency - Standard 1680 VPM

Dimensions

Compaction Width 84 in
Drum Diameter 60.4 in
Maximum Height 10.2 ft
Optional Blade Height 26.9 in
Overall Length 19.8 ft
Overall Length - With Blade Option 21.5 ft
Overall Width 7.7 ft
Overall Width - With Blade Option 8.2 ft
Wheel Base 9.5 ft

Operating Specifications

Curb Clearance 19.3 in
Ground Clearance 16.8 in
Travel Speed - Maximum 7.1 mile/h
Turning Radius - Inside Drum Edge 12.1 ft

Service Refill Capacities

Axle and Final Drives 4.8 gal (US)
Cooling System 7.4 gal (US)
DEF Tank 5 gal (US)
Eccentric Weight Housings (combined) 6.9 gal (US)
Engine Oil - With Filter 3.1 gal (US)
Fuel Tank Capacity 81.1 gal (US)
Hydraulic Tank 13.2 gal (US)

Sustainability

Recyclability 96%
