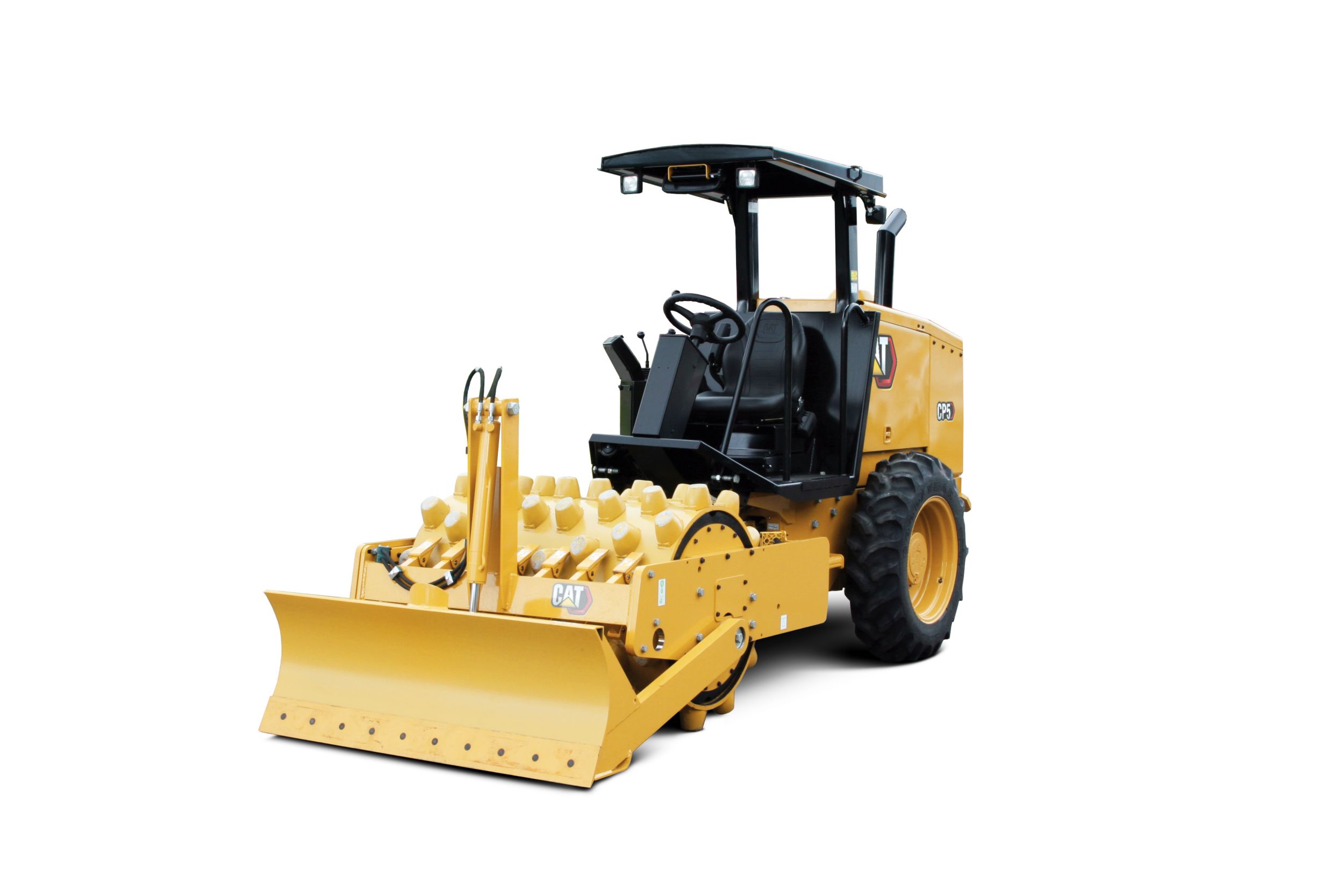

Get a quoteCP5 Vibratory Soil Compactor
Operate with Precision
Engine
| Bore | 3.9 in |
| Emissions | U.S. EPA Tier 4 Final |
| Engine Model | Cat® C3.4B |
| Engine Power - ISO 14396 | 74.4 hp |
| Gross Power | 74.6 hp |
| Net Power - ISO 9249 | 68.3 hp |
| Net Power - SAE J1349:2011 | 67.5 hp |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Stroke | 4.3 in |
Weights
| Note (1) | Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. |
| Operating Weight - With ROPS/FOPS Canopy | 10307 lb |
| Weight - Drum with ROPS/FOPS Canopy | 4872 lb |
Vibratory System
| Centrifugal Force - Maximum | 17535 lb |
| Nominal Amplitude - High | 0.05 in |
Dimensions
| Compaction Width | 50 in |
| Drum Diameter - Over Pads | 40 in |
| Maximum Height | 8.3 ft |
| Optional Blade Height | 22 in |
| Overall Length | 13.6 ft |
| Overall Length - With Blade Option | 14.9 ft |
| Overall Width | 4.6 ft |
| Overall Width - With Blade Option | 5.2 ft |
| Wheel Base | 7.3 ft |
Operating Specifications
| Curb Clearance | 13.5 in |
| Ground Clearance | 13.7 in |
| Travel Speed - Maximum | 5.5 mile/h |
| Turning Radius - Inside Drum Edge | 8.61 ft |
Service Refill Capacities
| Axle and Final Drives | 1.9 gal (US) |
| Cooling System | 4.8 gal (US) |
| Eccentric Weight Housings (combined) | 7 gal (US) |
| Engine Oil - With Filter | 2.4 gal (US) |
| Fuel Tank Capacity | 29.9 gal (US) |
| Hydraulic Tank | 10.6 gal (US) |
Sustainability
| Recyclability | 98% |
