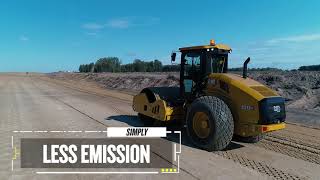

Get a quoteCP13 GC Vibratory Soil Compactor
Productive and Efficient
More Comfort – More Performance – More Versatility
-
Simple to Operate
The CP13 GC features an easy-to-use operator interface and excellent visibility to the ground and drum edges. An auto-vibe function helps operators maintain consistency.
-
Low Operating Costs
Eco-Mode, extended service intervals and a hitch with sealed-for-life bearings that do not require routine maintenance help keep your operating and maintenance costs low.
-
Excellent Compaction Performance
Compaction technology along with machine features and drum options help you achieve target density in a wide variety of applications.
Engine
| Bore | 3.9 in |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V |
| Engine Model | Cat® C3.6 |
| Engine Power - ISO 14396 | 121 hp |
| Gross Power | 122.9 hp |
| Net Power - ISO 9249 | 112.2 hp |
| Net Power - SAE J1349:2011 | 111.2 hp |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Stroke | 4.7 in |
Weights
| Note (1) | Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. |
| Operating Weight - With Cab | 27869 lb |
| Operating Weight - With ROPS/FOPS Canopy | 27529 lb |
| Weight - Drum with Cab | 17066 lb |
| Weight - Drum with ROPS/FOPS Canopy | 16971 lb |
Vibratory System
| Centrifugal Force - Maximum | 55932 lb |
| Centrifugal Force - Minimum | 33249 lb |
| Nominal Amplitude - High | 0.071 in |
| Nominal Amplitude - Low | 0.035 in |
Dimensions
| Compaction Width | 84 in |
| Drum Diameter - Over Pads | 60.9 in |
| Maximum Height | 9.8 ft |
| Overall Length | 18.7 ft |
| Overall Width | 7.5 ft |
| Wheel Base | 9.8 ft |
Operating Specifications
| Curb Clearance | 19.5 in |
| Ground Clearance | 20.3 in |
| Travel Speed - Maximum | 6.8 mile/h |
| Turning Radius - Inside Drum Edge | 12.7 ft |
Service Refill Capacities
| Axle and Final Drives | 2.6 gal (US) |
| Cooling System | 4.9 gal (US) |
| DEF Tank | 5 gal (US) |
| Eccentric Weight Housings (combined) | 6.9 gal (US) |
| Engine Oil - With Filter | 3.1 gal (US) |
| Fuel Tank Capacity | 56.3 gal (US) |
| Hydraulic Tank | 6.1 gal (US) |
Sustainability
| Recyclability | 95% |
