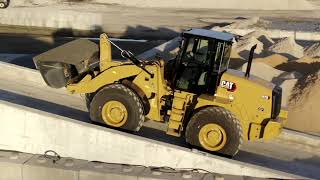

Get a quote914 Compact Wheel Loader
Configured for Success
More Comfort – More Performance – More Versatility
-
10% Power Boost
-
Big Options Compact Loader
-
9% More Capacity*
*914 Aggregate Handler only.
Engine
Bore | 3.85 in |
Displacement | 220 in³ |
Emissions | Engine meets Tier 4 Final/Stage V emission standards. |
Engine Model | Cat C3.6 |
Maximum Gross Power | 110 hp |
Maximum Gross Power - ISO 14396 | 110 hp |
Maximum Gross Power - ISO 14396 (metric) | 112 hp |
Maximum Gross Power - Rated Engine Speed | 1800 r/min |
Maximum Gross Torque - ISO 14396 | 332 ft·lbf |
Maximum Gross Torque - SAE J1995 | 335 ft·lbf |
Maximum Net Torque - ISO 9249 | 327 ft·lbf |
Maximum Net Torque - SAE J1349 | 329 ft·lbf |
Note | Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. |
Rated Net Power - ISO 9249 | 98 hp |
Rated Net Power - Rated Engine Speed | 2200 r/min |
Rated Net Power - SAE J1349 | 99 hp |
Stroke | 4.72 in |
Buckets
Bucket Capacities | 1.3-3.5 m3 (1.7-4.6 yd3) |
Bucket Capacities - General Purpose | 1.3-1.9 m³ (1.7-2.5 yd³) |
Bucket Capacities - Light Material | 2.5-3.5 m³ (3.3-4.6 yd³) |
Weights
Operating Weight | 19103 lb |
Steering
Maximum Flow - Steering Pump | 22 gal/min |
Maximum Working Pressure - Steering Pump | 3263 psi |
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.75 turns |
Steering Articulation Angle - Each Direction | 40 ° |
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed | 2.8 s |
Loader Hydraulic System
Hydraulic Cycle Time - Dump, at Maximum Reach | 1.4 s |
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 3.7 s |
Hydraulic Cycle Time - Rackback | 2.2 s |
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.2 s |
Hydraulic Cycle Time - Total Cycle Time | 12.5 s |
Maximum Flow - Implement Pump | 39 gal/min |
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High | 32 gal/min |
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard | 24 gal/min |
Maximum Flow - Implement Pump - 4th Function, Maximum Flow | 24 gal/min |
Maximum Working Pressure - Implement Pump | 4061 psi |
Relief Pressure - Tilt Cylinder | 4931 psi |
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure | 3046 psi |
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure | 3046 psi |
Service Refill Capacities
Axles - Front Center Differential | 2 gal (US) |
Axles - Rear Center Differential | 2 gal (US) |
Cooling System | 5.7 gal (US) |
Diesel Exhaust Fluid (DEF) Tank | 4.8 gal (US) |
Engine Crankcase | 2.6 gal (US) |
Fuel Tank | 43.6 gal (US) |
Hydraulic System - Including Tank | 25.9 gal (US) |
Hydraulic Tank | 14.5 gal (US) |
Note | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. |
Transmission | 0.8 gal (US) |
Transmission
Forward and Reverse - Speed Range 1* | 6.3 mile/h |
Forward and Reverse - Speed Range 2* | 12.5 mile/h |
Forward and Reverse - Speed Range 3 | 25 mile/h |
Note | *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. |
Tires
Note (1) | Other tire choices are available. Contact your Cat dealer for details. |
Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
Other Choices Include | 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow; 17.5 R25 Solid |
Standard Size | 17.5 R25 L2 XTLA |
Cab
FOPS | ISO 3449:2005 |
Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
Note (2) | The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A). |
Note (3) | The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A). |
Note (4) | *The measurements were conducted with the cab doors and windows closed. |
ROPS | ISO 3471:2008 |
Axles
Front | Fixed; Locking differential (standard) |
Rear | Oscillating ±11 degrees; Locking differential (Standard) |
Sustainability
Recyclability | 95% |
