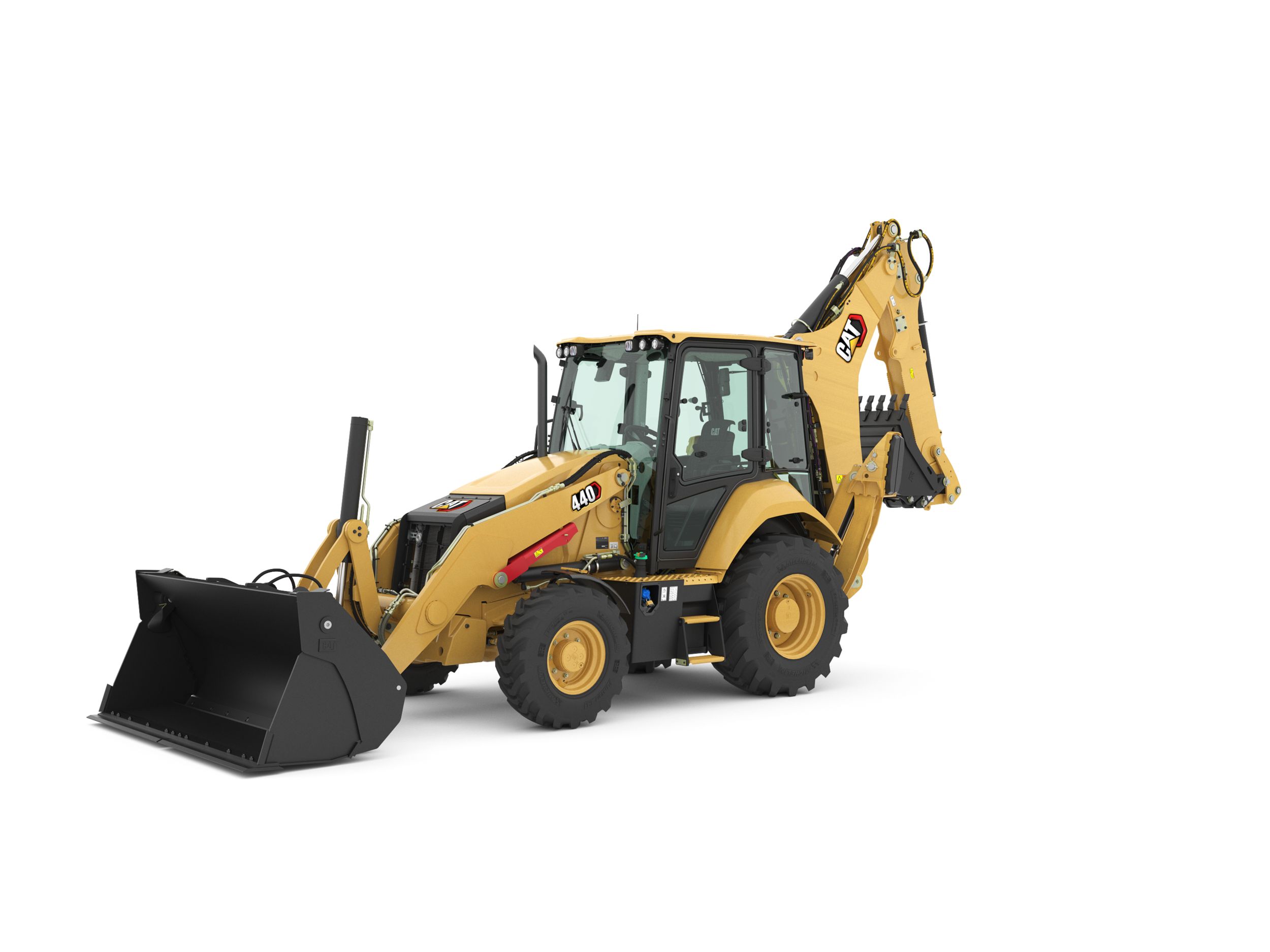

440 Backhoe Loader

440 Backhoe Loader

INSPIRED BY YOU

More Comfort – More Performance – More Versatility

  • Experience

    Enhanced features, including seat-mounted controls

  • Performance

    Up to 15% higher lift capacity

  • Power

    Up to 19% more breakout force

Engine

Bore 4.13 in
Displacement 268 inÂł
Emissions Engine meets U.S. EPA Tier 4 Final emission standards.
Engine Model C4.4 ACERT 87 kW (116 hp) Electronic – Turbo Intercooled
Gross Power - ISO 14396 74 HP
Gross Power - SAE J1995 74 HP
Net Peak Power - 1,800 rpm - EEC 80/1269 73 HP
Net Peak Power - 1,800 rpm - ISO 9249 73 HP
Net Peak Power - 1,800 rpm - SAE J1349 72 HP
Net Peak Power Rating - ISO 9249 at 1,800 rpm 108 HP
Net Peak Power Rating - SAE J1349 at 2,100 rpm 108 HP
Net Peak Torque SAE J1349 307 ft·lbf
Net Power - 2,200 rpm - SAE J1349 68 HP
Net Power - SAE J1349 104 HP
Net Power Rating at 2,200 rpm - ISO 9249 104 HP
Net Power Rating at 2,200 rpm - SAE J1349 104 HP
Net Torque Rise - 1,200 rpm 88 %
Net Torque Rise - 1,400 rpm 44%
Net Torque Rise - 1,400 rpm - SAE J1349 360 ft·lbf
Note No derating required up to 2286 m (7,500 ft).
Power Rating Conditions - No De-Rating Required Up To 7500 ft
Rated Net Power - 2,200 rpm - EEC 80/1269 69 HP
Rated Net Power - 2,200 rpm - ISO 9249 68 HP
Ratings at 2,200 rpm - Gross Power ISO 14396 116 HP
Ratings at 2,200 rpm - Gross Power SAE J1995 118 HP
Stroke 5 in

Weights

Air Conditioning 101 lb
Backhoe Quick Coupler +87 kg (+192 lb)
Cab - ROPS/FOPS 359 lb
Cab, ROPS/FOPS +243 kg (+536 lb)
Counterweight 1102 lb
Extendible Stick +301 kg (+664 lb)
Front Counterweight - Counterweights - Option 1 255 lb
Front Counterweight - Counterweights - Option 2 530 lb
Front Counterweight - Counterweights - Option 3 1015 lb
Loader Bucket - 1.34 m³ (1.75 yd³) GP (Hook-On) –150 kg (–331 lb)
Loader Bucket - 1.34 mÂł (1.75 ydÂł) MP ED (Hook-On) +160 kg (+353 lb)
Loader Bucket - 1.34 mÂł (1.75 ydÂł) MP ED (Pin-On) +290 kg (+639 lb)
Loader Bucket - 1.34 mÂł (1.75 ydÂł) MP HD (Hook-On) +85 kg (+187 lb)
Loader Bucket - 1.34 mÂł (1.75 ydÂł) MP HD (Pin-On) +214 kg (+472 lb)
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Hook-On) –73 kg (–162 lb)
Loader Bucket - 1.53 mÂł (2.0 ydÂł) GP (Pin-On) +80 kg (+176 lb)
Loader Quick Coupler +250 kg (+551 lb)
MP Bucket (1.00 m3/1.31 yd3) - With Fold-Over Forks 2018 lb
MP Bucket (1.00 m3/1.31 yd3) - Without Fold-Over Forks 3622 lb
Note (1) *Machine equipped with 340/80-18 front and 500/70-24 rear, AWD, OROPS, 1.34 mÂł (1.75 ydÂł) general purpose bucket with bolt-on cutting edge, standard stick, 610 mm (24"") severe-duty backhoe bucket.
Note (2) GP = General Purpose
Note (3) MP = Multi Purpose
Note (4) HD = Heavy Duty
Note (5) ED = Extreme Duty
Operating Weight - Estimated* 21544 lb
Operating Weight - Maximum 29321 lb
Operating Weight - Maximum - ROPS Capacity 29321 lb
Rear Counterweight 198 lb

Loader Bucket

Dig Depth - Standard 3 in

Hydraulic System

Pump Capacity at 2,200 rpm 58.1 gal/min
Pump Type Variable Flow, Axial Piston
System Pressure - Backhoe 3800 psi
System Pressure - Hitch/Box Scraper 2973 psi
System Pressure - Loader 3800 psi
Type Closed Center

Transmission

Autoshift Transmission - Forward - 1st 3.7 mile/h
Autoshift Transmission - Forward - 2nd 5.9 mile/h
Autoshift Transmission - Forward - 3rd 7.7 mile/h
Autoshift Transmission - Forward - 4th 12.2 mile/h
Autoshift Transmission - Forward - 5th 16.7 mile/h
Autoshift Transmission - Forward - 6th 24.4 mile/h
Autoshift Transmission - Reverse - 1st 3.7 mile/h
Autoshift Transmission - Reverse - 2nd 7.7 mile/h
Autoshift Transmission - Reverse - 3rd 16.7 mile/h
Note Travel speeds of backhoe loader in two wheel drive at full throttle, when equipped with 500/70-24 rear tires.
Power Shuttle Transmission - Forward 1st 3.4 mile/h
Power Shuttle Transmission - Forward 2nd 5.5 mile/h
Power Shuttle Transmission - Forward 3rd 13 mile/h
Power Shuttle Transmission - Forward 4th 23 mile/h
Power Shuttle Transmission - Reverse 1st 3.4 mile/h
Power Shuttle Transmission - Reverse 2nd 5.5 mile/h
Power Shuttle Transmission - Reverse 3rd 13 mile/h
Power Shuttle Transmission - Reverse 4th 23 mile/h

Service Refill Capacities

Cooling System with Air Conditioning 4.4 gal (US)
Cooling System with Cab Heater 6 gal (US)
Diesel Exhaust Fluid (DEF) 5 gal (US)
Engine Oil - With Filter 2.3 gal (US)
Front Axle (4WD) 2.9 gal (US)
Front Axle (4WD) - Planetaries 0.2 gal (US)
Front Axle (Center Housing) 2.9 gal (US)
Fuel Tank 42.3 gal (US)
Hydraulic System 23.8 gal (US)
Hydraulic System (Minimum) 31.7 gal (US)
Hydraulic Tank 10.6 gal (US)
Hydraulic Tank (Nominal) 14.3 gal (US)
Note Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
Planetaries 0.2 gal (US)
Rear Axle 4.4 gal (US)
Rear Axle (Center Housing) 4.4 gal (US)
Rear Axle - Planetaries 0.4 gal (US)
Transmission (Autoshift) - AWD, Autoshift 4.8 gal (US)
Transmission - Power Shuttle - 2WD 4 gal (US)
Transmission - Power Shuttle - 4WD 4 gal (US)

Steering

Axle Oscillation 11°
Bore 3.35 in
Note AWD cylinder, one (1) double-acting.
Power Steering Hydrostatic HMU
Rod Diameter 1.65 in
Stroke 9.29 in
Turning Circle (inner wheel not braked) - Outside Front Wheels 27.33 ft
Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket 37.75 ft
Turning Circle - (inner wheel not braked) - Outside Front Wheels 26.8 ft
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket 36 ft
Type Front Wheel

Axle Ratings

Front Axle (4WD) - Dynamic 20233 lb
Front Axle (4WD) - Static 50582 lb
Front Axle, AWD - Dynamic 20225 lb
Front Axle, AWD - Static 50565 lb
Rear Axle - Dynamic 20225 lb
Rear Axle - Static 50565 lb

Backhoe

Dig Depth - Standard 15.5 ft

Tires

Standard Configuration of Front/Rear Tires Front: 12.5 80/16.9; Rear: 16.9-24

Counterweights - Front - Minimum Recommendations

Standard Stick - GP Loader Bucket - 4WD 255 lb
Standard Stick - MP Loader Bucket - 4WD no counterweight
