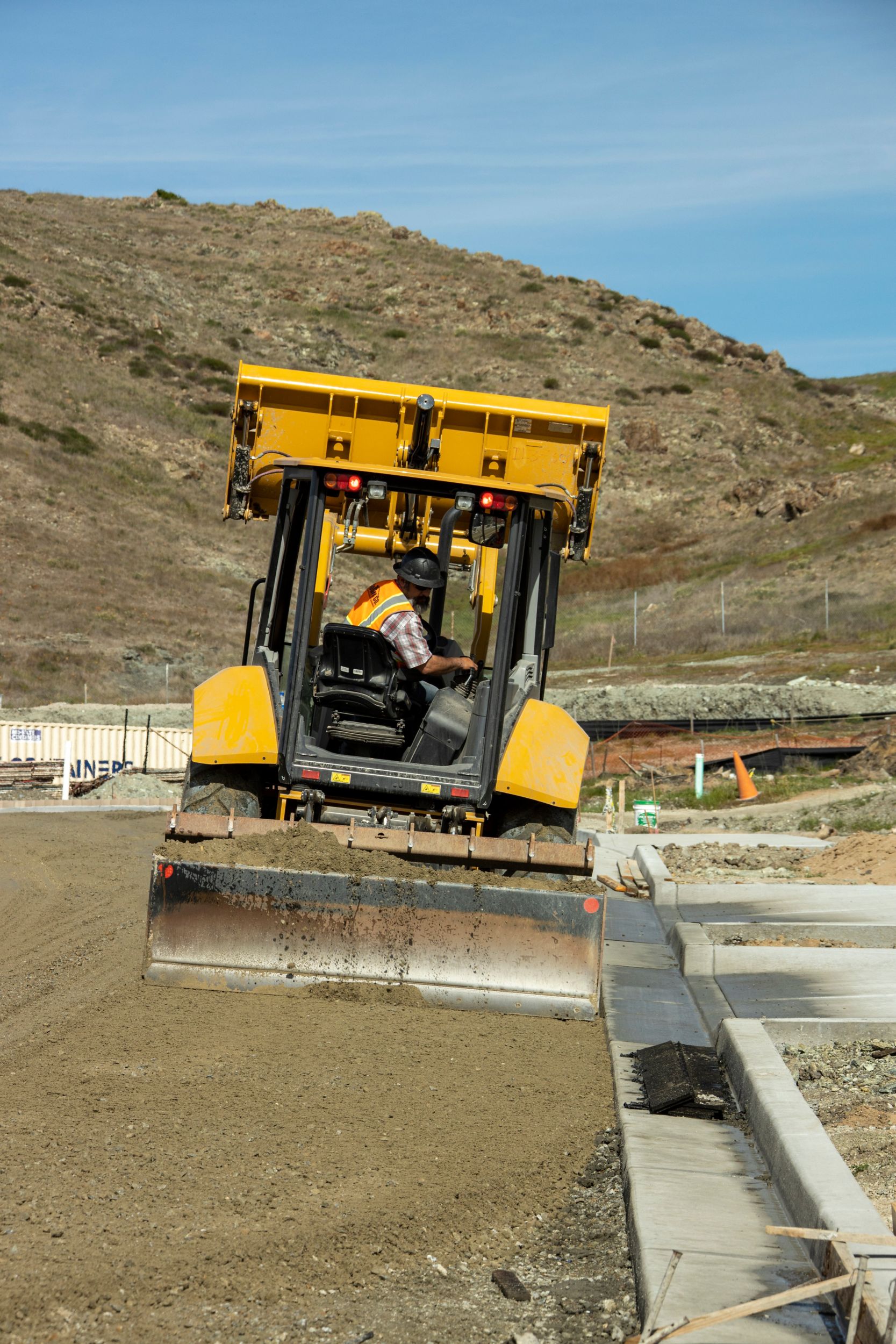

415 IL Industrial Loader

415 IL Industrial Loader

More Comfort – More Performance – More Versatility

Get a quote

Engine

Bore 3.86 in
Displacement 220 in³
Emissions Engine meets U.S. EPA Tier 4 Final emission standards.
Engine Model Cat C3.6
Gross Power - ISO 14396 74 hp
Gross Power - SAE J1995:2014 75 hp
Net Peak Power - 2,200 rpm - ISO 9249 69 hp
Net Peak Power - 2,200 rpm - SAE J1349 69 hp
Net Peak Torque SAE J1349 308 ft·lbf
Net Power - 2,200 rpm - SAE J1349 69 hp
Net Power - SAE J1349:2011 69 hp
Net Torque Rise - 1,200 rpm 86 %
Note No derating required up to 2286 m (7,500 ft).
Rated Net Power - 2,200 rpm - ISO 9249 69 hp
Stroke 4.72 in

Weights

Air Conditioning 101 lb
Cab - ROPS/FOPS 359 lb
Front Counterweight - Counterweights - Option 1 255 lb
Front Counterweight - Counterweights - Option 2 530 lb
Front Counterweight - Counterweights - Option 3 1015 lb
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017 lb
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642 lb
Minimum Operating Weight 14035 lb
Note *Specifications shown are for machine equipped with 0.76 m³ (1.0 yd³) general purpose loader bucket, 115 kg (255 lb) front counterweight, 80 kg (176 lb) operator, all wheel drive and full fuel tank.
Operating Weight - Maximum 17637 lb
Operating Weight - Maximum - ROPS Capacity 17637 lb
Rear Counterweight 198 lb

Transmission

Power Shuttle Transmission - Standard - Forward - 1st 3.4 mile/h
Power Shuttle Transmission - Standard - Forward - 2nd 5.5 mile/h
Power Shuttle Transmission - Standard - Forward - 3rd 13 mile/h
Power Shuttle Transmission - Standard - Forward - 4th 23 mile/h
Power Shuttle Transmission - Standard - Reverse - 1st 3.4 mile/h
Power Shuttle Transmission - Standard - Reverse - 2nd 5.5 mile/h
Power Shuttle Transmission - Standard - Reverse - 3rd 13 mile/h
Power Shuttle Transmission - Standard - Reverse - 4th 23 mile/h

Axle Ratings

Front Axle (4WD) - Dynamic 13228 lb
Front Axle (4WD) - Static 26455 lb
Rear Axle - Dynamic 20233 lb
Rear Axle - Static 50582 lb

Hydraulic System

Pump Capacity at 2,200 rpm 33 gpm
Pump Type Variable Flow, Axial Piston
System Pressure - Hitch/Box Scraper 2973 psi
System Pressure - Loader 2973 psi
Type Closed Center

Steering

Axle Oscillation 11°
Bore 2.6 in
Power Steering Hydrostatic
Rod Diameter 1.6 in
Stroke 4.2 in
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels 26.8 ft
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket 36 ft
Type Front Wheel

Service Refill Capacities

Cooling System with Air Conditioning 4.4 gal (US)
Engine Oil - With Filter 2.3 gal (US)
Front Axle (4WD) 2.9 gal (US)
Front Axle (4WD) - Planetaries 0.2 gal (US)
Fuel Tank 42 gal (US)
Hydraulic System 23.8 gal (US)
Hydraulic Tank 10.6 gal (US)
Note Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
Rear Axle 4.4 gal (US)
Rear Axle - Planetaries 0.4 gal (US)
Transmission - Power Shuttle - 2WD 4 gal (US)
Transmission - Power Shuttle - 4WD 4 gal (US)

Tires

Standard Configuration of Front/Rear Tires Front: 12.5 80/16.9; Rear: 16.9-24

Counterweights - Front - Minimum Recommendations

Standard Stick - GP Loader Bucket - 4WD 255 lb
Standard Stick - MP Loader Bucket - 4WD no counterweight
