Horsch

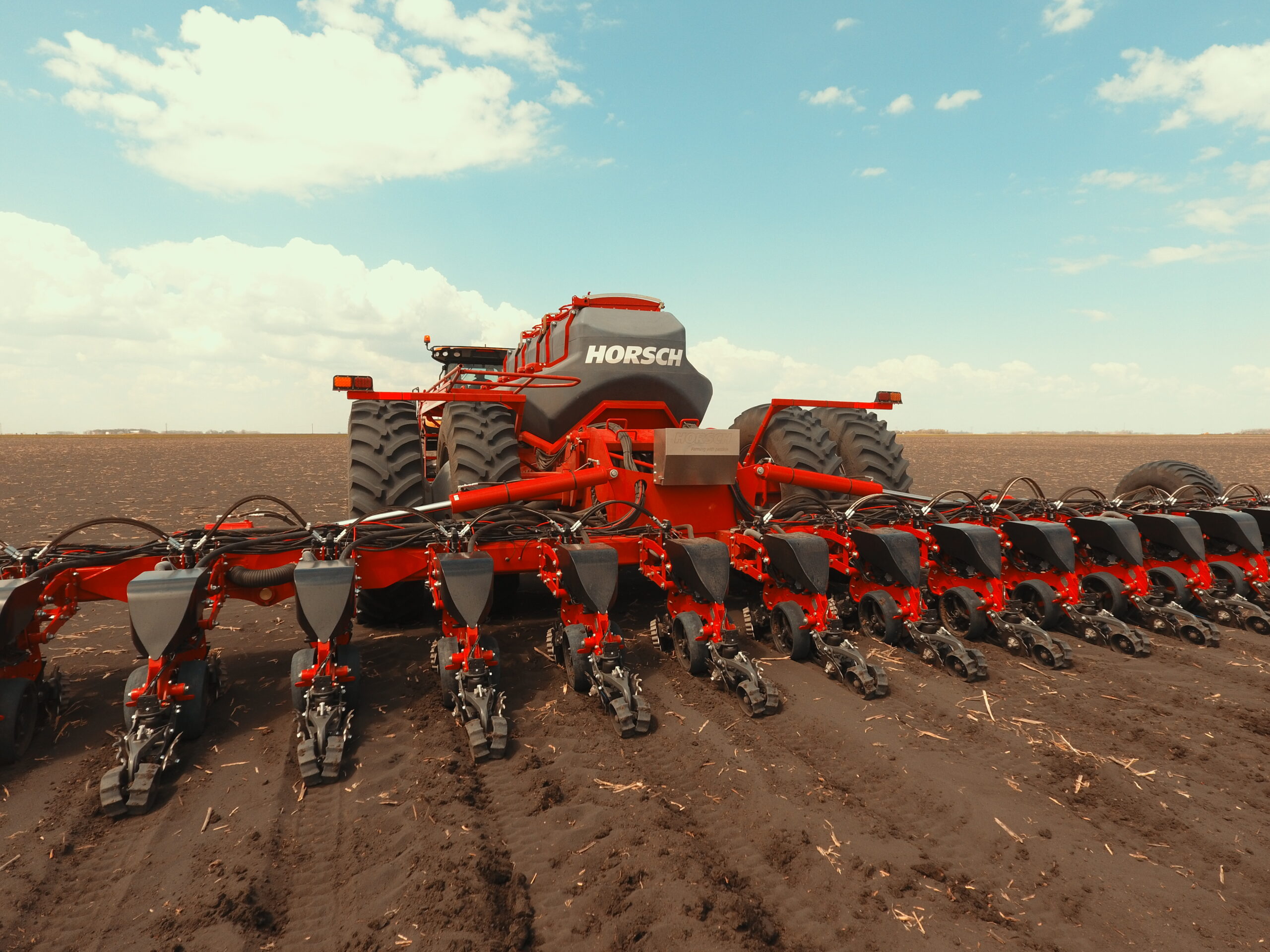

Maestro SP Planter

Seed Placement. Furrow Integrity. Timing.

The Maestro SP series combines proven pull type planter platforms with integrated technology from Precision Planting taking your planting to the next level! Horsch’s industry leading seed and fertilizer capacities maximize your planting window, the legendary chassis systems with pioneering weight transfer technology aid to eliminate yield robbing pinch rows plus provide a stable toolbar for row unit downforce, and the globally proven row unit design can now come factory equipped with Precision Planting technology including the Gen III 2020 monitor, vSet meters with vDrive, Delta Force, Wave Vision, Speed Tube and Clean Sweep. The ultimate planter platform with capacity for maximizing planted acres per day, maintaining seedbed and furrow integrity, while having a complete systems approach to pin-point seed placement.

Advantages

Complete concept for maximizing planted acres per day, precision seed placement, along with maintaining uniform and consistent seedbed soil structure.

Largest seed / fertilizer carrying capacities available in the market today.

Up to 249-bushel seed carrying capacity (pending model).

Up to 1225 gallons of liquid fertilizer capacity (pending model).

Global industry first and leading technology in electric meter drives, weight transfer, and hydraulic downforce technologies.

Electric drive meters precisely singulate seed while having the ability for variable rate planting, individual row shutoff and curve compensation.

Chassis system designed for large product carrying capacity while having a light footprint.

Lightest soil footprint in the industry – large diameter tires, large footprint, low tire psi.

Light soil footprint in combination with weight transfer system aids in elimination of yield robbing pinch rows.

Weight transfer system stabilizes the toolbar, thus resulting in superior stabilization of row units for precise depth control.

More high-performance features as standard equipment than any other planter on the market.

ISOBUS implement control allows use of industry or HORSCH virtual terminals for planter operation and precision farming tasks.

Model	Toolbar Size	Est. Weight	Seed Tank Size	Fertilizer Tank Size
Maestro 24R20	40'	27000 lb	2, 83 bu. (166 bu.)	730 gal
Maestro 24R30 Seed Only	60'	29000 lb	2, 83 bu. (249 bu.)	N/A
Maestro 24R30 Liquid	60'	29000 lb	2, 83 bu. (166 bu.)	730 gal
Maestro 31R15 Liquid	40'	27000 lb	2, 83 bu. (166 bu.)	730 gal
Maestro 32R15 Liquid	40'	27500 lb	2, 83 bu. (166 bu.)	730 gal
Maestro 36R20 Seed Only	60'	37000 lb	3, 83 bu. (249 bu.)	N/A
Maestro 36R20 Liquid	60'	37000 lb	2, 83 bu. (249 bu.)	730 gal
Maestro 36R22 Liquid	66'	37800 lb	2, 83 bu. (166 bu.)	730 gal
Maestro 36R22 Seed Only	66'	37800 lb	3, 83 bu. (249 bu.)	N/A
Maestro 4715 Liquid	60'	44000 lb	2, 83 bu. (166 bu.)	730 gal
Maestro 4715 Seed Only	60'	44000 lb	3, 83 bu. (249 bu.)	N/A
Maestro 4815 Liquid	60'	44500 lb	2, 83 bu. (166 bu.)	730 gal
Maestro 4815 Seed Only	60'	44500 lb	3, 83 bu. (249 bu.)	N/A

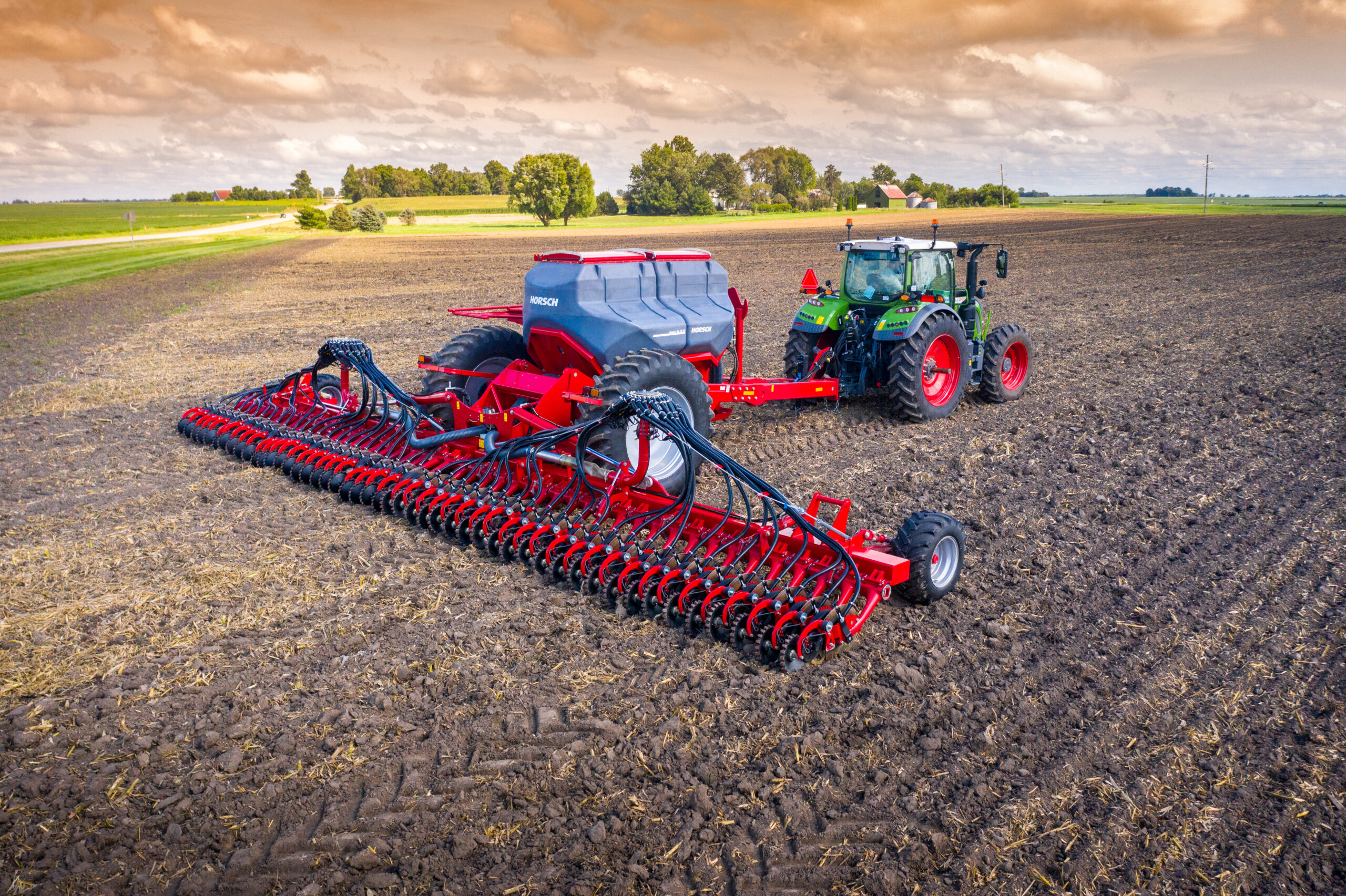

Avatar SD Disc Seeder

Versatile. Precise. Simple.

Avatar SD raises the bar on the integral fill single disk drill market, taking it to a whole new level. A completely revolutionary concept, the Avatar SD combines an agile two-tank design, the most precise volumetric metering system on the market, an agronomic based platform, and the lowest maintenance opener system on the market. In fact, maintenance of the unit consists of only a handful of service points. Close attention to detail has been placed on every aspect of the design. Two individual tanks with a metering system on each create an agile unit when multiple products are needed. Unique chassis system is slim for safe, narrow transport along with a weight transfer system during operation. The single rank tool bar gives easy access for adjustments. The Avatar SD takes a complete common-sense approach in design to incorporate basic agronomic principals for securing maximum yield potentials.

Advantages of Avatar SD

Full concept integral fill single disc drill system that defines seeding precision and maximizing efficiency during planting/seeding season.

Dual product capacity at 166 bushels (83 bushel per tank) allows versatility when seeding different crops or including fertilizer with seed in the furrow.

Industry leading calibration and rate accuracy with globally proven electric drive metering system.

Simple conversion between crops and smooth single point cleanout.

Standard weight transfer system stabilizes toolbar which stabilizes opener units for precise soil engagement.

Weight transfer system takes weight of the cart and distributes it to the toolbar and aids in elimination of wheel tracks.

Openers feature rubber torsion mount design, eliminating pin and bushing maintenance time and costs.

6 degree opener blade angle with a pitch of 3 degrees offers compound angle of engagement with lower draft requirements and easier furrow closure.

Largest disc bearings in the industry designed specifically for single disc applications.

Openers feature seed locking wheel for uniform seed embedment in furrow.

550 pounds of available opener down pressure.

Single rank toolbar with 10-inch row spacing eliminates stepping affects and can be used at faster speeds pending field conditions.

All opener adjustments easily accomplished from rear of machine.

Narrow transport at only 12 feet for safe roadway travel.

Variety of closing wheel options available.

ISOBUS implement control allows use of industry or HORSCH virtual terminals for planter operation and precision farming tasks.

AVATAR MODELS	FOLD	TANKS	SEED TANK SIZE	ROW SPACING
AVATAR 40SD	Front Fold	2	166 bushel (83+83)	10"
AVATAR 60MD	Front Fold	3	355 bushel (150+150+55)	10"

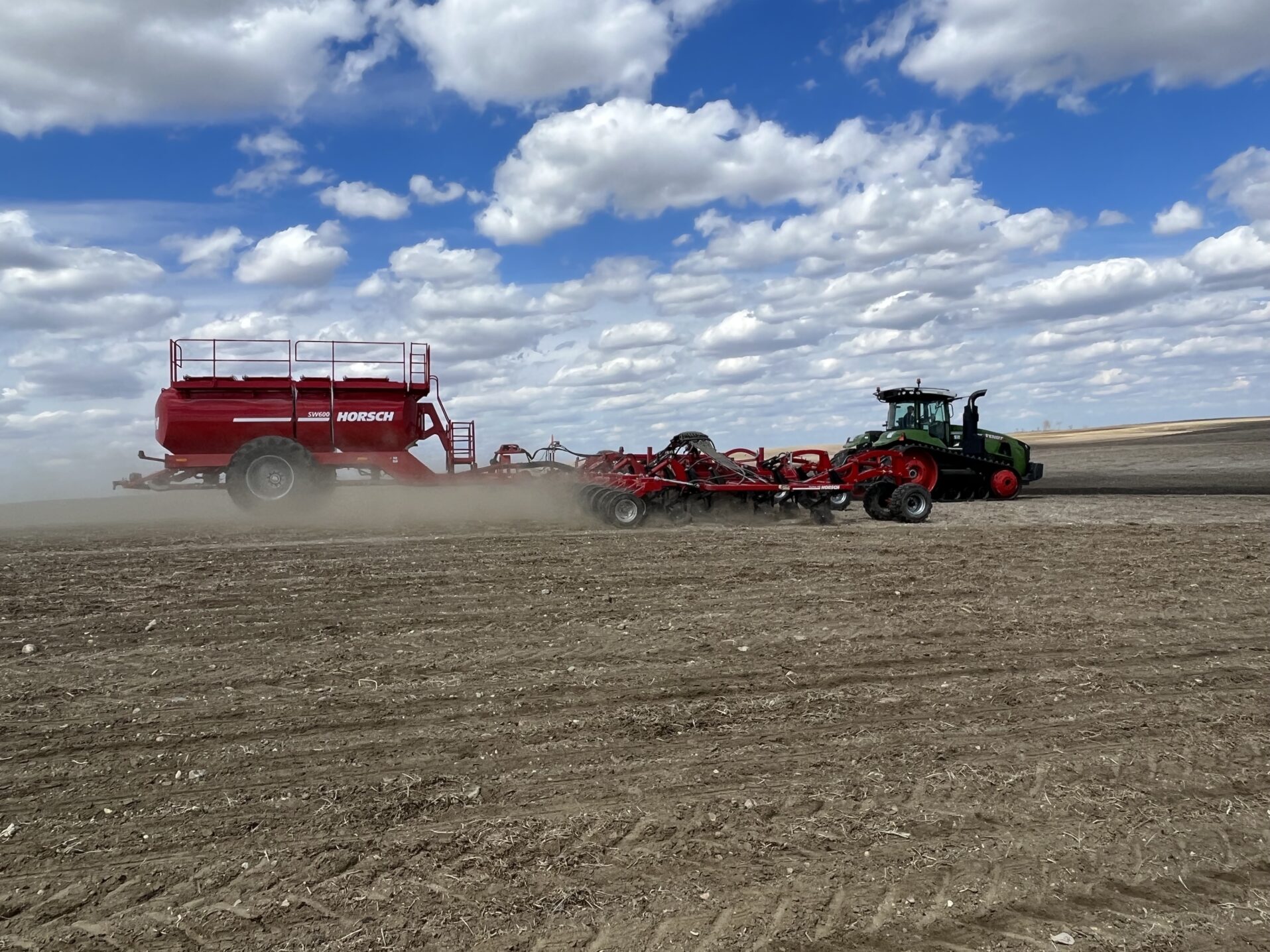

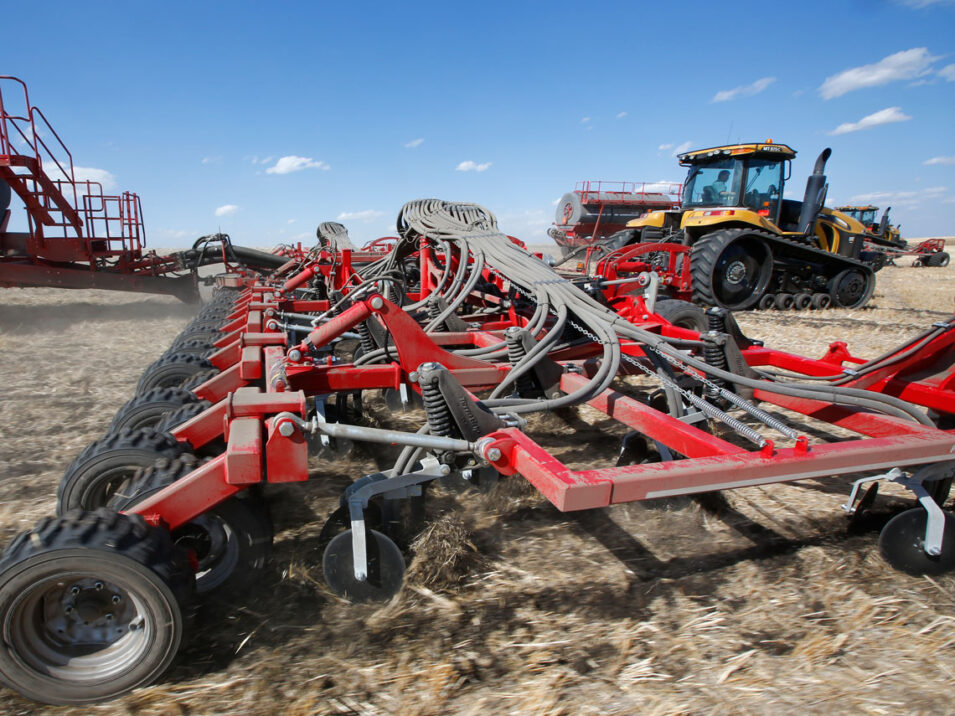

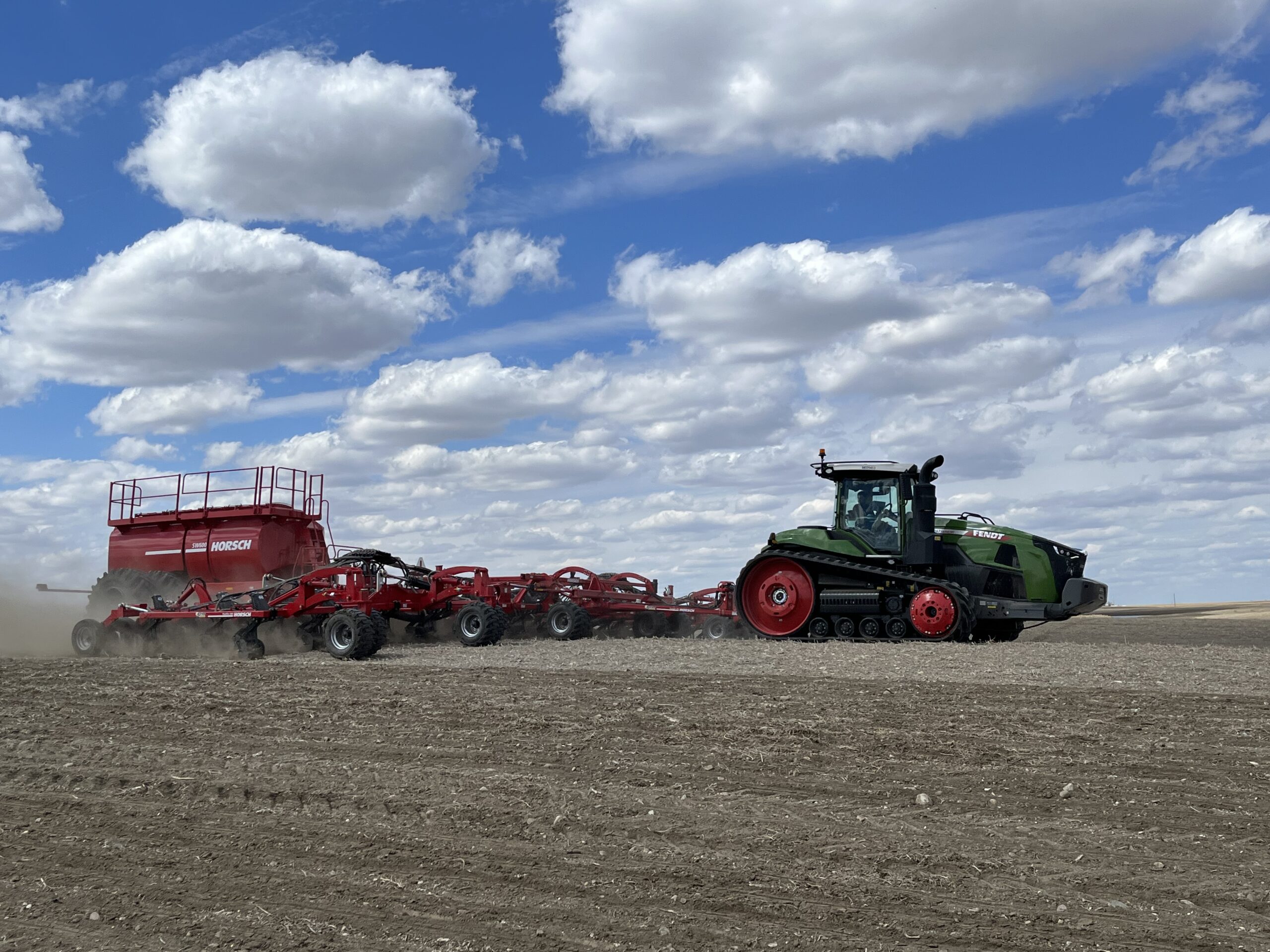

Horsch Panther Shank Seeder

Versatility – Simplistic Operation – Seeding Precision

Being born in a transitional region dominated by small grains and row crops, the Panther distinguishes itself as an agile and highly efficient seeding concept. No other shank type seeder offers the superior residue flow in no-till conditions, control of soil flow and consistent opener engagement at high speeds, gentle furrow firming, and the overall capacity to maximize seeded acres per day. A lot of characteristics set the panther apart from the competition. These features include, its proven robust frame, high-capacity air system, superior product distribution, heaviest shank trip force in the industry, disc leveling system for controlling soil flow, and ground-hugging pneumatic tire packing system. Simply put, the Panther is a complete concept approach to high efficiency in single pass seeding/fertilizer operations.

Advantages of Panther

Proven robust concept designed for years of service.

15-inch shank spacing allows flexibility in seeding/planting small grains, oilseeds, row crops, and fertilizer banding application.

750lb trip force on shanks is heaviest in the industry, maintains consistent opener engagement at higher seeding speeds.

Standard disc leveler system allows for higher seeding speeds, directing soil flow from opener back into furrow before packing, eliminating stepping affect.

Proven double oscillating walking tandem pneumatic tire packing system precisely follows variable terrain and provides ideal furrow firming.

Industry leading coefficient of variation accuracy (row to row) for product volume output.

Superior row to row product volume output ensures consistent and uniform product distribution over entire working width.

Smooth and directed hose routings ensure consistent sinusoidal flow of product at each opener.

Single pass seeding with precision placement of seed and fertilizer in one pass.

Optional cutting coulters mount in front of each shank, provide unmatched residue flow in no-till conditions while keeping machine in balance.

Optional Sectional Control system (paired with SW600 only) saves on seed and fertilizer costs by eliminating costly overlap applications.

PANTHER MODELS	Sections	SHANK TO SHANK	NUMBER OF OPENERS	OPENER SPACING
PANTHER 440	5	60"	32	15"
PANTHER 460	5	60"	48	15"

Multiple options available; contact us for inquirires.
