triple mower

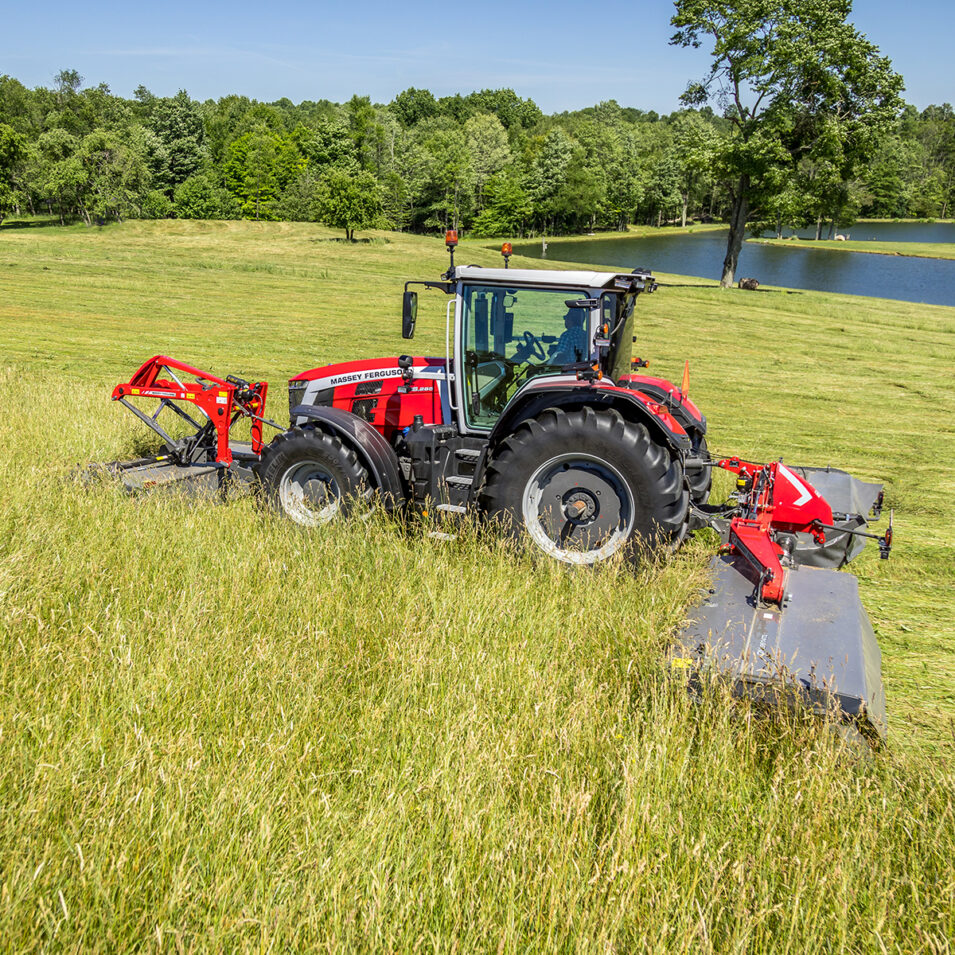

Massey Ferguson Triple Mowers

The Massey Ferguson DM Series Triple mower provides efficient mowing of hay and other forages with cut widths up to 31 feet 6 inches with only one tractor and operator. The RazorEdge™  cutter bar design excels at providing the cleanest cut at high ground speeds thanks to ground adaptation provided by the three-dimensional flotation suspension system. When equipped with the dual-driven rubber-on-rubber conditioning rolls, efficiencies are improved further by reducing crop dry-down times. This results in increased forage and feed quality, maximizing productivities and putting money back in your pocket.

VIEW BROCHURE

FRONT MOUNT MOWERS

MODEL WORKING WIDTH CONDITIONER OPTIONS CUTTER BAR DESIGN DISCS APPROX. WEIGHT PTO POWER REQUIREMENT
DM 316 RQ-RC 10' 2" Rubber/Rubber RAZOREDGE 6 2,729 LBS. 115 HP
DM 316 FQ 10' 2" N/A RAZOREDGE 6 2,094 LBS. 85 HP
DM 367 FQ-RC 11' 10" Rubber/Rubber RAZOREDGE 7 2,809 LBS. 130 HP
DM 367 FQ 11' 10" N/A RAZOREDGE 7 2,248 LBS. 95 HP

REQUIREMENTS TO RUN A TRIPLE MOWER

Running a triple mower requires a front hitch and front PTO on your equipment, along with two front hydraulic remote outlets to operate the lift, lower and side-to-side functions. Three rear hydraulic remotes are also needed to raise and lower the rear-mounted mowers. Around 200 PTO horsepower is suggested to power a triple mower system. While the draw on the PTO from a triple mower system is not in excess of 200 PTO HP, a tractor with that capability will also provide the stability needed for mowing or transporting of the system.

REAR MOUNT MOWERS

MODEL WORKING WIDTH DISCS X BLADES PTO POWER REQUIREMENT APPROX. WEIGHT DISCS
DM 8612 TL-RC 28' 4" 12 X 2 180 HP 5,529 LBS. 12
DM 9614 TL 31' 6" 2 X 7 130 HP 5,529 LBS 14
