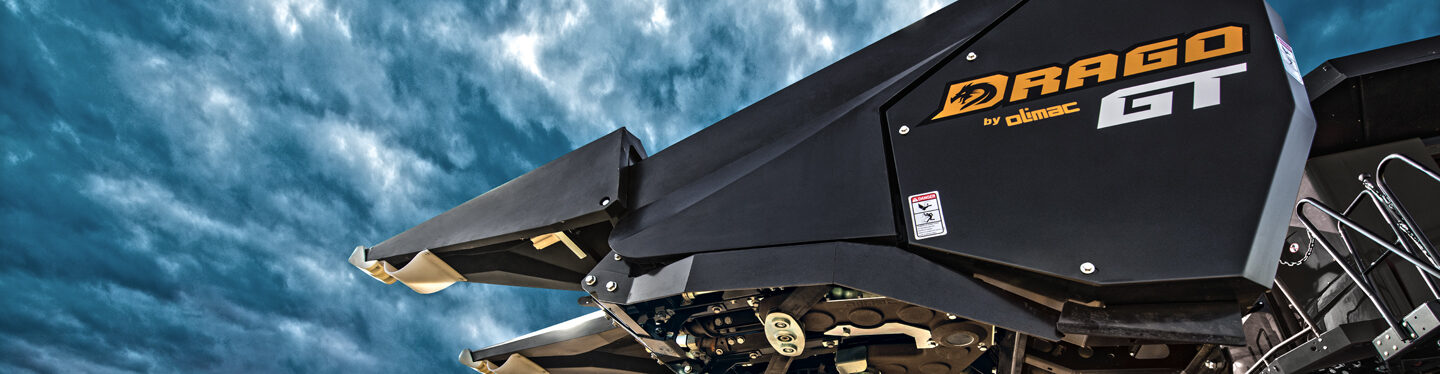

DRAGO GT SERIES CORN HEADS
HARVEST LIKE YOU MEAN IT.
Drago heads are built for today’s agriculture, with self-adjusting deck plates that capture kernels across every row, “ear shocks” and lower-velocity knife rollers to reduce ear bounce and shatter, the lowest profile to capture ears and more.
Get A Quote Today!
TOP FEATURES
-
AUTOMATIC SELF-ADJUSTING DECK PLATES
An industry-first and revolutionary concept in yield capture technology.
-
QUADSUSPENSION
Integrated impact-absorbing "ear shocks" reduce "butt-shelling" when ears strike deck plates - reducing a significant cause of yield loss at harvest.
-
INDUSTRY'S LARGEST AUGER
Handles more trash and gently moves corn to the combine's feederhouse - and keeps it there.
-
AUGER DRIVE
As part of the Endura Drive system, the Drago GT gear-driven auger minimizes maintenance and keeps the auger-drive clean and free of debris. This is the industry's first chainless-drive, available for every row configuration.
-
ENDURA DRIVE
The first chainless design in all corn head sizes. Gears transfer more power from the combine to the row unit for maximum efficiency - a simple, durable and efficient delivery of power.
-
SPIRAL BEVEL GEARBOXES
The most durable and efficient row unit gearbox possible - more power delivered, more years of service.
-
INDEPENDENT COMPONENT PROTECTION
Each major component of the Drago GT is protected from field hazards, from our gear-driven auger, to the Precise Clutch Technology protecting knife rollers, gathering chain drives and choppers. The Drago design delivers maximum protection to equipment and added peace of mind to the operators.
SPECS
| MODEL | ROWS | SPACING | NON-CHOP WEIGHT | SINGLE CHOP WEIGHT | TWIN CHOP WEIGHT | TRANSPORT WIDTH |
|---|---|---|---|---|---|---|
| 630GT | 6 | 30" | 4,745 lbs. | 5,089 lbs. | 5,274 lbs. | 15' 6" |
| 822GT | 8 | 22" | 5,271 lbs. | 5,743 lbs. | N/A | 15' 10" |
| 830GT | 8 | 30" | 5,869 lbs. | 5,377 lbs. | 6,575 lbs. | 20' 5" |
| 830GT-F | 8 | 30" | 6,641 lbs. | 7,126 lbs. | 7,347 lbs. | 10' 10" |
| 1220GT | 12 | 20" | 7,362 lbs. | 8,089 lbs. | N/A | 21' 4" |
| 1222GT | 12 | 22" | 7,604 lbs. | 8,332 lbs. | N/A | 23' 2" |
| 1230GT | 12 | 30" | 8,382 lbs. | 9,220 lbs. | 9,430 lbs. | 30' 5" |
| 1230GT-F (2024 and older) | 12 | 30" | 9,595 lbs. | 10,322 lbs. | 10,653 lbs. | 16' 1" |
| 1230GT-F (2025 and newer) | 12 | 30" | 9,595 lbs. | 10,322 lbs. | 10,653 lbs. | 16' 11" |
| 1620GT | 16 | 20" | 9,816 lbs. | 10,785 lbs. | N/A | 28' |
| 1622GT | 16 | 22" | 10,259 lbs. | 11,201 lbs. | N/A | 27' 3" |
| 1622GT-F | 16 | 22" | 12,994 lbs. | 13,492 lbs. | N/A | 19' 1" |
| 1630GT | 16 | 30" | 11,204 lbs. | 12,324 lbs. | 12,604 lbs. | 40' 5" |
| 1630GT-F | 16 | 30" | 13,045 lbs. | 14,165 lbs. | 14,445 lbs. | 21' 1" |
| 1820GT | 18 | 20" | 10,761 lbs. | 11,875 lbs. | N/A | 31' 4" |
| 1820GT-F | 18 | 20" | 12,933 lbs. | 13,993 lbs. | N/A | 17' 6" |
| 1822GT | 18 | 22" | 10,895 lbs. | 11,955 lbs. | N/A | 34' 2" |
| 1822GT-F | 18 | 22" | 14,618 lbs. | 15,178 lbs. | N/A | 25' 5" |
| 1830GT | 18 | 30" | 12,573 lbs. | 13,829 lbs. | 15,269 lbs. | 45' 5" |
| 2420GT | 24 | 20" | 14,384 lbs. | N/A | N/A | 41' 3" |
